Wastewater/Activity/PacpInspection/1.0May 31, 2018, 05:10 AM
21 0491_21 0490 _30052018_221043.mp4
- Date
- 05/30/2018
- W/O
- 701499
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00779
- PipeID
- P15700
- Time
- 10:10 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5626
- Sewer Name
- 21 PHILLIPS BOULEVARD TRUNK
- City
- POMONA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_701499_TV21108_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 21 0490
- Downstream MH
- 21 0491
- Dir. of Survey
- Upstream
- Length Surveyed
- 331.1 ft.
- Total Length
- 331.1 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

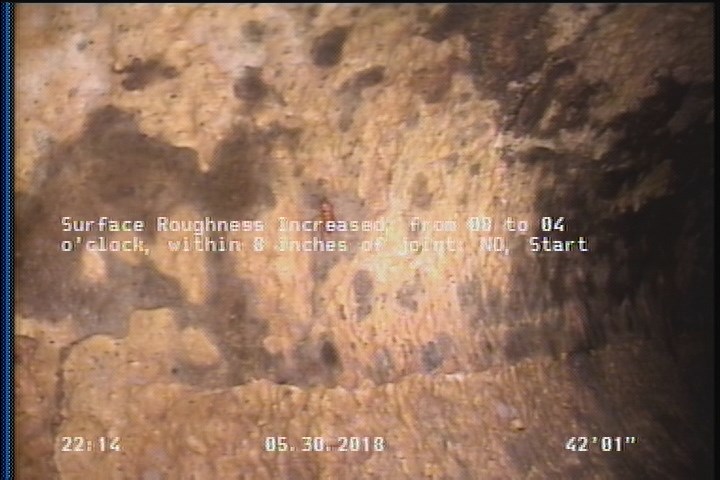

42 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

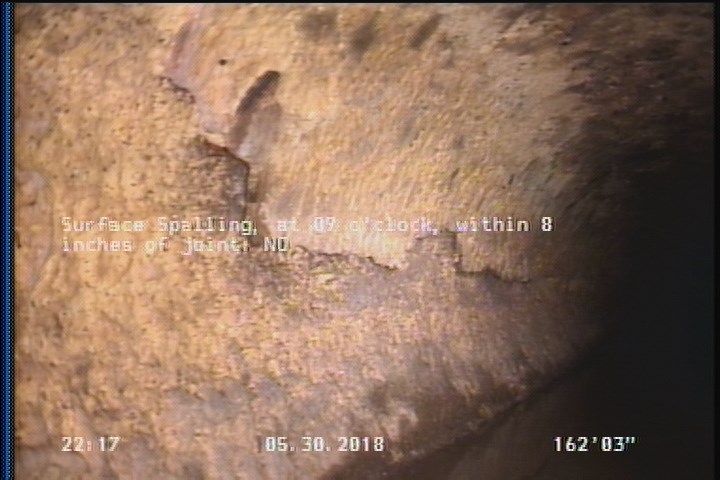

162.3 ft. - Surface Spalling, at 09 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | MGO | MAGNESIUM COATING START |
| 42 | SRI | — |
| 0 | AMH | 21 0490 |
| 331.1 | MGO | MAGNESIUM COATING END |
| 331.1 | SRI | — |
| 162.3 | SSS | — |
| 0 | MWL | — |
| 331.1 | AMH | 21 0491 |
Properties (4)
- additional_info
- SC359181
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-30T22:10:18-07:00
