Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 06:26 AM

  • 15 0184_15 0183 _31052018_233636.mp4

Date
05/31/2018
W/O
701427
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00605
PipeID
P12108
Time
11:26 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5680
Sewer Name
15 FERRIS ROAD TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
23
Purpose
Routine Assessment
Project
WO_701427_TV15127_MAY2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0184
Downstream MH
15 0183
Dir. of Survey
Downstream
Length Surveyed
225.6 ft.
Total Length
225.6 ft.
Structural Index
3
Structural Quick
3C23
Structural Rating
63
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
63
Pipe schematic from manhole 15 0184 to 15 0183
MH: 15 0184MH: 15 0183downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 01840 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area12.7 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES17.5 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES22.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"40.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"59.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"81 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES90.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"116.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES117.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start132.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"152.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"202.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"220.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish225.6 ft. AMH - Downstream Manhole, Survey Ends - 15 0183

Observation photos (5)

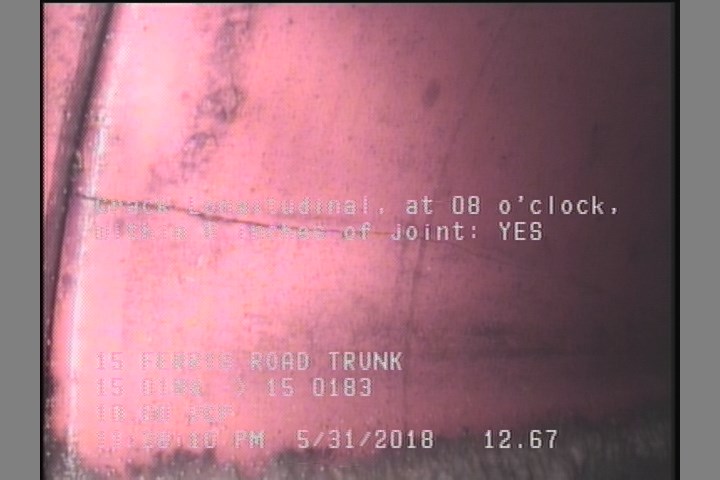

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    12.7 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

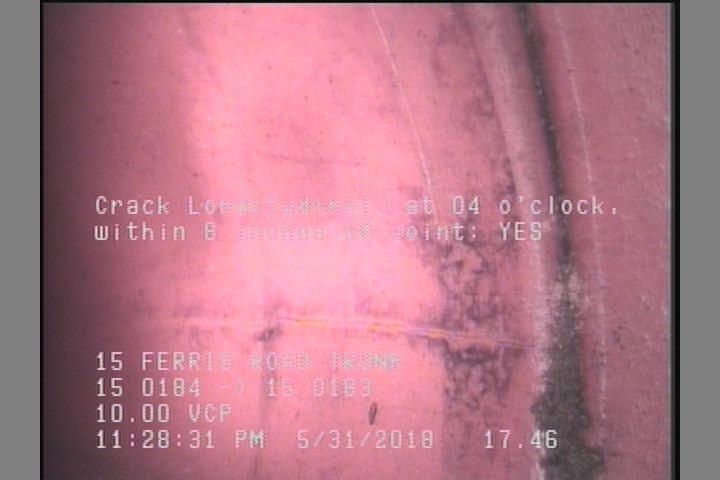

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    17.5 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

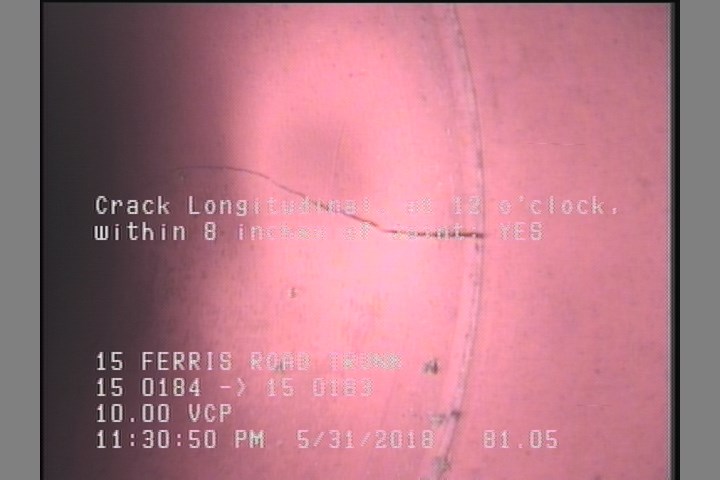

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    81 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

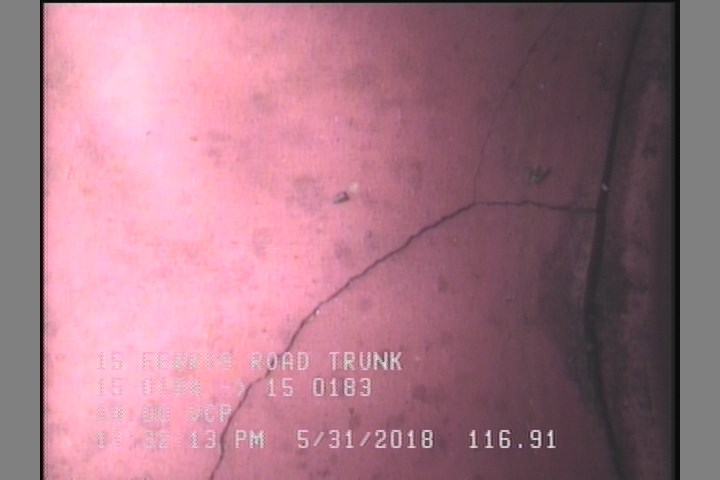

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    116.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

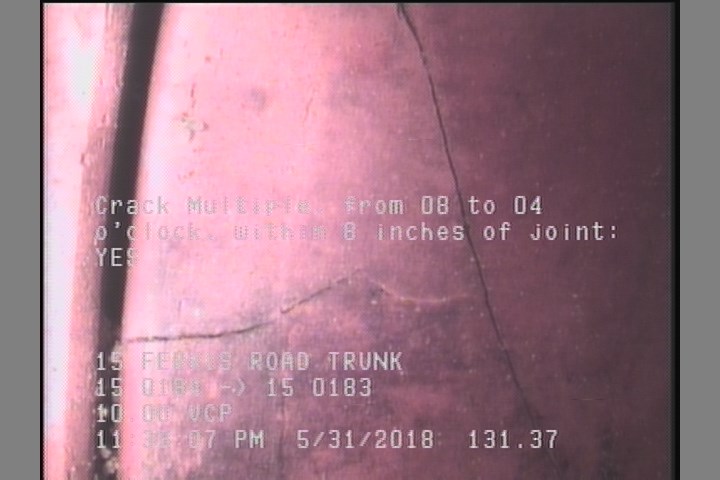

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    131.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P12108Work order 701427

Observations (18)

DistanceCodeObservation
116.9CM—
117.3TF—
22.9TFC—
131.4CM—
152.3TF—
17.5CL—
90.7TFC—
59.7TFC—
0AMH15 0184
132.9TF—
81CL—
0MWM—
0MWL—
220.6CM—
12.7CL—
202.4TFC—
225.6AMH15 0183
40.4TFC—

Properties (4)

additional_info
SC359338
custom_field_two
3
customer
LACSD
datetime
2018-05-31T23:26:35-07:00
