Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 06:36 AM
15 0183_15 0136 _31052018_234040.mp4
- Date
- 05/31/2018
- W/O
- 701427
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00605
- PipeID
- P12107
- Time
- 11:36 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5680
- Sewer Name
- 15 FERRIS ROAD TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_701427_TV15127_MAY2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 0183
- Downstream MH
- 15 0136
- Dir. of Survey
- Downstream
- Length Surveyed
- 34.7 ft.
- Total Length
- 34.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (2)

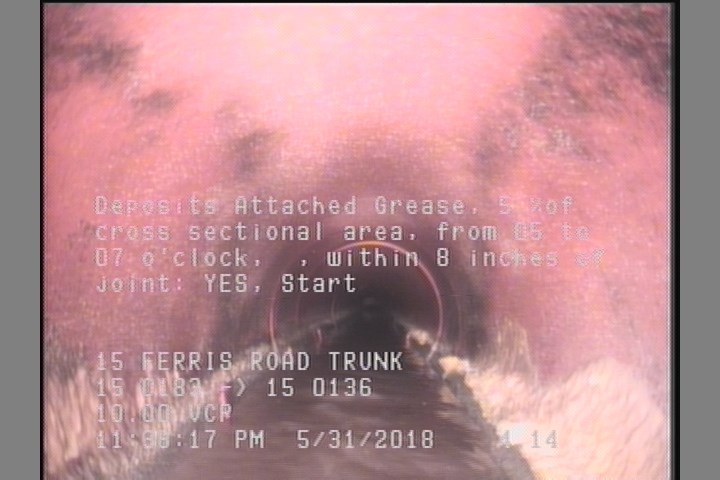

4.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

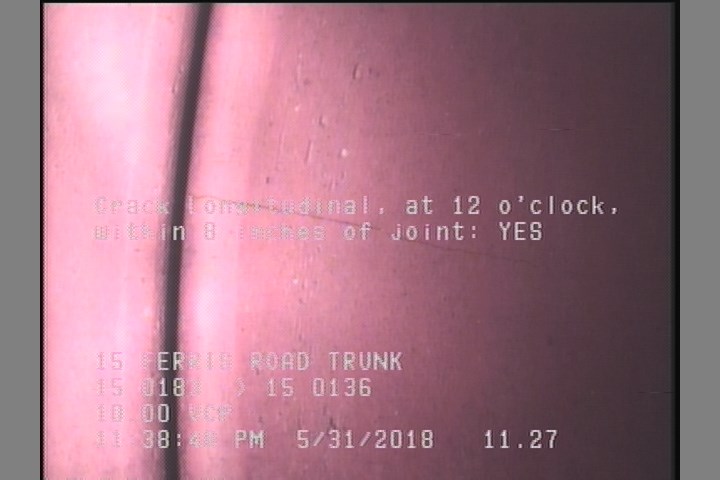

11.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 15 0183 |
| 34.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 34.7 | AMH | 15 0136 |
| 32.3 | TFD | CRACK INSIDE THE CONNECTION |
| 11.3 | CL | — |
| 4.1 | DAGS | — |
| 34.7 | DAGS | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359338
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-05-31T23:36:54-07:00
