Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 06:10 AM

  • 15 0185_15 0184 _31052018_232608.mp4

Date
05/31/2018
W/O
701427
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00605
PipeID
P12109
Time
11:10 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5680
Sewer Name
15 FERRIS ROAD TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
23
Purpose
Routine Assessment
Project
WO_701427_TV15127_MAY2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0185
Downstream MH
15 0184
Dir. of Survey
Downstream
Length Surveyed
258.2 ft.
Total Length
258.2 ft.
Structural Index
3
Structural Quick
3I21
Structural Rating
146
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
146
Pipe schematic from manhole 15 0185 to 15 0184
MH: 15 0185MH: 15 0184downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 01850 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK6.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES14.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"72.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"86.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"130 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"132.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"136 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"164.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"183 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"209.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"215.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish254.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"258.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0184

Observation photos (2)

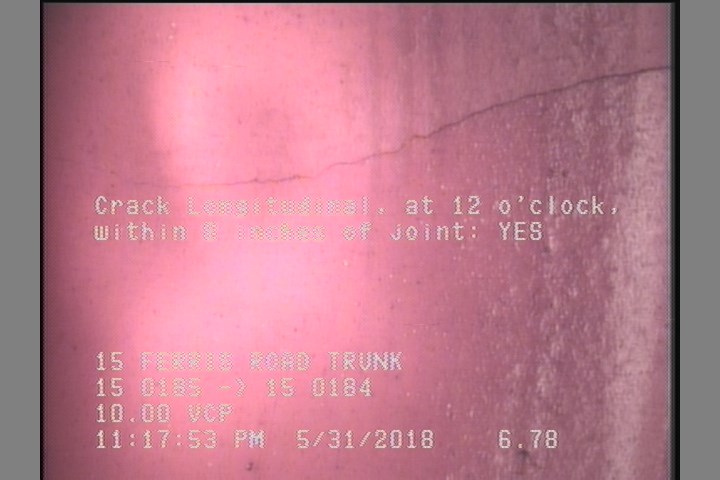

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    6.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

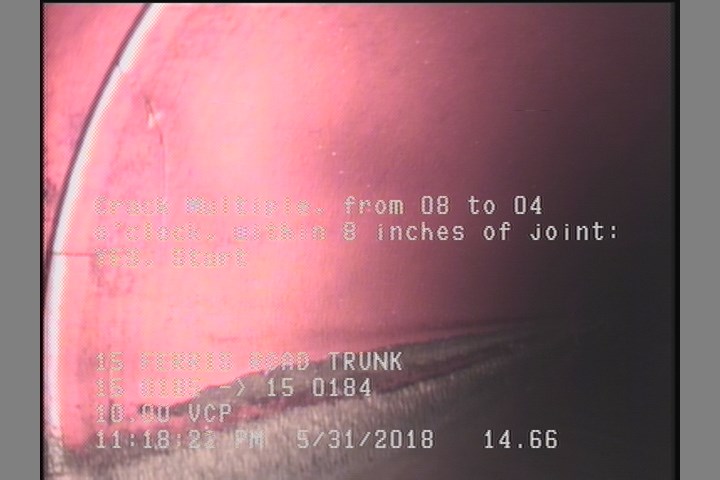

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    14.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P12109Work order 701427

Observations (19)

DistanceCodeObservation
258.2AMH15 0184
130TF—
215.6TFC—
86.3TFC—
254.1CM—
164.6TF—
14.7CM—
136TB—
209.2TF—
0MWL—
0MWM—
0AMH15 0185
132.8TF—
25.8TF—
183TFC—
6.8CL—
0MGOCONNECTION AT MH 9 O'CLOCK
72.4TFC—
254.1TF—

Properties (4)

additional_info
SC359338
custom_field_two
3
customer
LACSD
datetime
2018-05-31T23:10:45-07:00
