Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 08:31 AM

  • H 1195_H 0580 _01062018_015444.mp4

Date
06/01/2018
W/O
701387
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00188
PipeID
P21382
Time
1:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5681
Sewer Name
H JOINT OUTFALL H - UNIT 8E
City
BALDWIN PARK
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
19
Purpose
Routine Assessment
Project
WO_701387_TV15172_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
H 1195
Downstream MH
H 0580
Dir. of Survey
Downstream
Length Surveyed
477.6 ft.
Total Length
477.6 ft.
Structural Index
4
Structural Quick
5I3R
Structural Rating
525
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
525
Pipe schematic from manhole H 1195 to H 0580
MH: H 1195MH: H 0580downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 11952.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start198.7 ft. MGO - General Observation - UN MAPPED MH198.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK211 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish255.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"371.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"412.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"421.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"477.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish477.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK477.6 ft. AMH - Downstream Manhole, Survey Ends - H 0580

Observation photos (3)

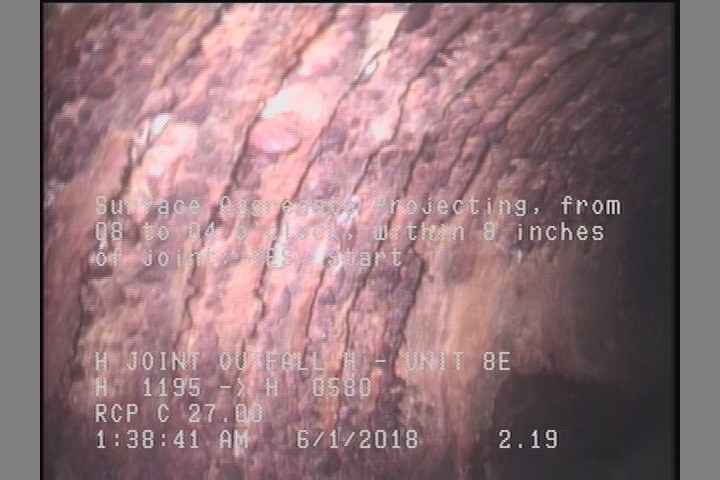

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

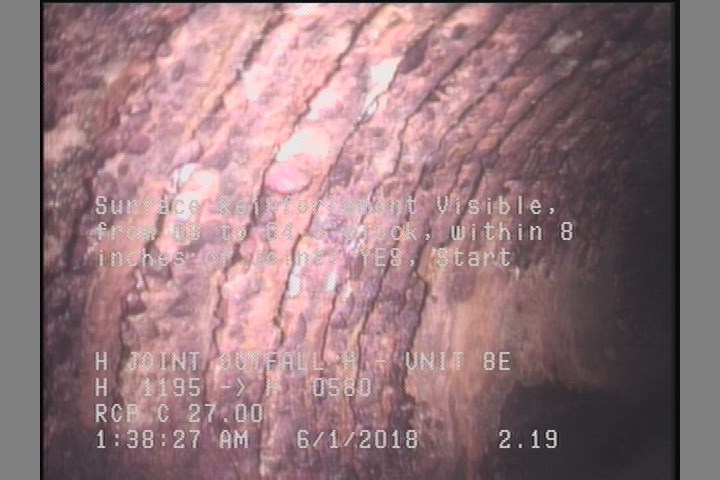

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

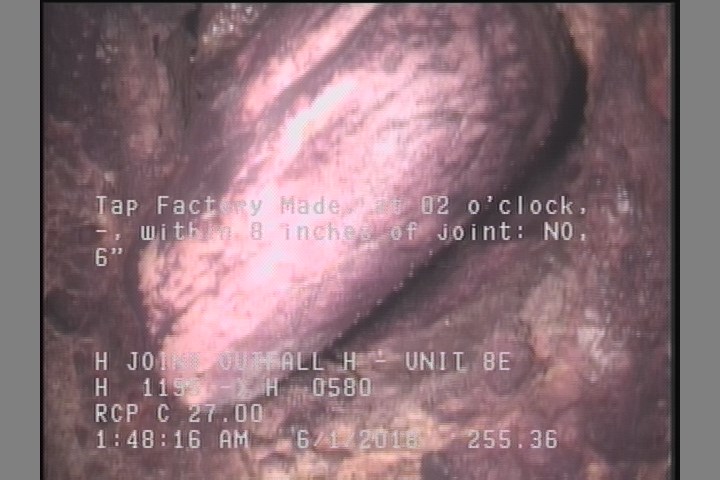

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    255.4 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P21382Work order 701387

Observations (18)

DistanceCodeObservation
371.7TF—
198.7MGOUN MAPPED MH
2.2SAP—
477.6SAP—
0MWL—
477.6MGOCONNECTION AT MH 3 O'CLOCK
412.7TFC—
255.4TF—
241.6SRV—
198.7MGOCONNECTION AT MH 3 O'CLOCK
477.6AMHH 0580
2.2SRV—
211TFC—
0MWM—
0MGOCONNECTION AT MH 3 O'CLOCK
421.2TFC—
219.4TFC—
0AMHH 1195

Properties (4)

additional_info
SC359339
custom_field_two
1
customer
LACSD
datetime
2018-06-01T01:31:59-07:00
