Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 04:36 AM
14 0423_14 0422 _31052018_220712.mp4
- Date
- 05/31/2018
- W/O
- 701348
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18507
- Time
- 9:36 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5716
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_701348_TV14019_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0423
- Downstream MH
- 14 0422
- Dir. of Survey
- Downstream
- Length Surveyed
- 152.2 ft.
- Total Length
- 152.2 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 64
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 214
Observation photos (3)

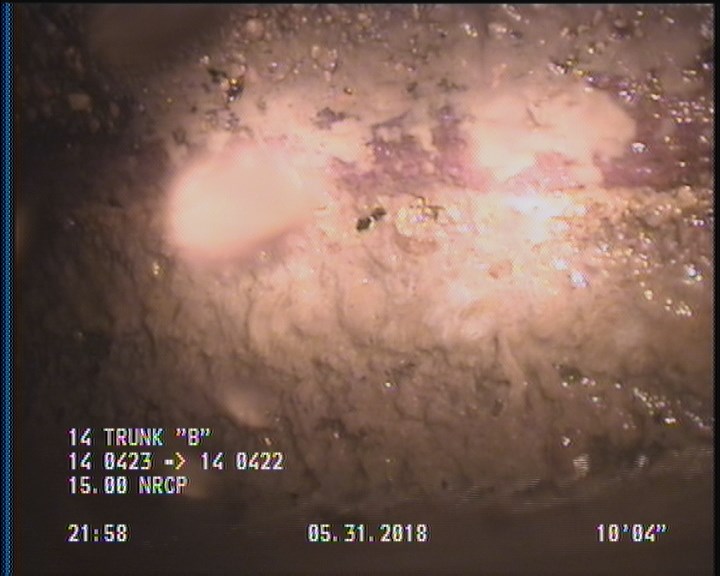

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

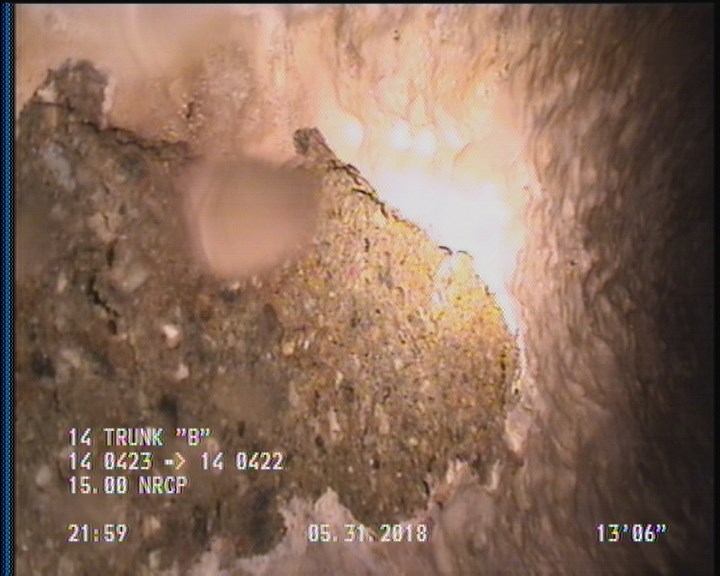

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

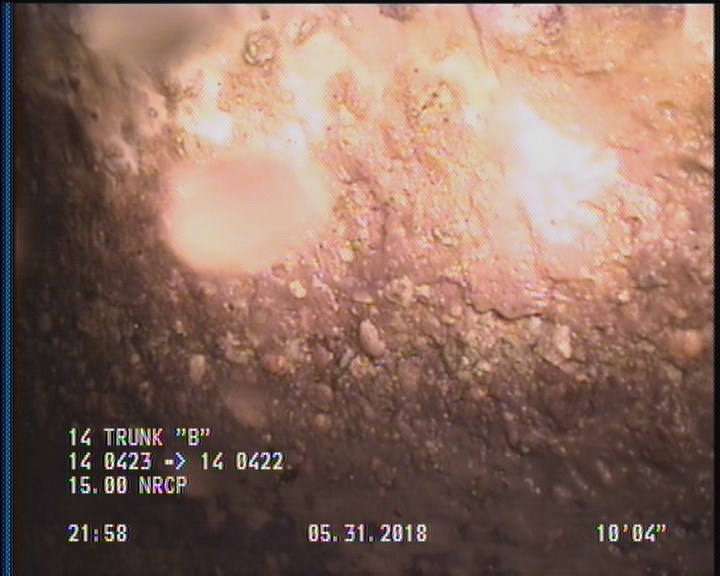

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0423 |
| 150.3 | SSS | — |
| 150.3 | SAP | — |
| 0 | MWM | — |
| 152.2 | AMH | 14 0422 |
| 0 | MWL | — |
| 131.1 | TFC | — |
| 102.4 | TFC | — |
| 29.2 | TFC | — |
| 53.9 | TFC | — |
| 77.9 | TFC | — |
| 2 | DAGS | — |
| 2 | SSS | — |
| 2 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 150.3 | DAGS | — |
Properties (4)
- additional_info
- SC3593852
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-31T21:36:06-07:00
