Wastewater/Activity/PacpInspection/1.0May 30, 2018, 07:17 AM
14 0433A_14 0433 _30052018_002352.mp4
- Date
- 05/30/2018
- W/O
- 701348
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18519
- Time
- 12:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5712
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_701348_TV14019_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0433A
- Downstream MH
- 14 0433
- Dir. of Survey
- Downstream
- Length Surveyed
- 94.7 ft.
- Total Length
- 94.7 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 90
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 40
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 130
Observation photos (3)

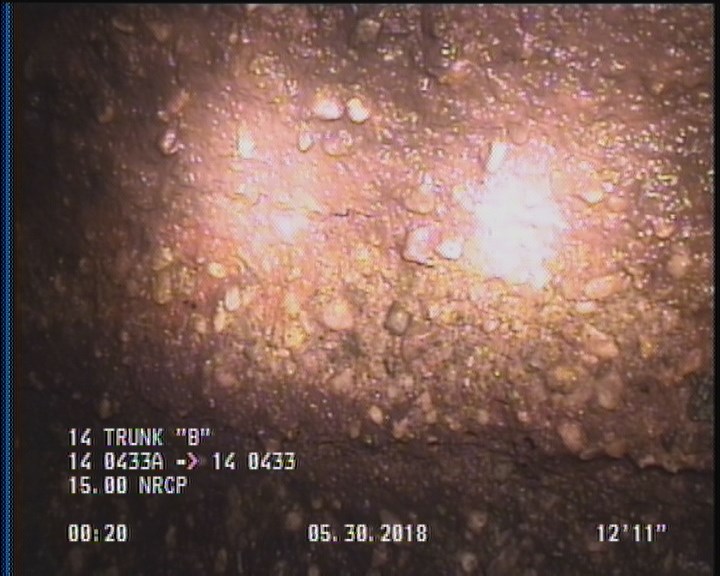

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

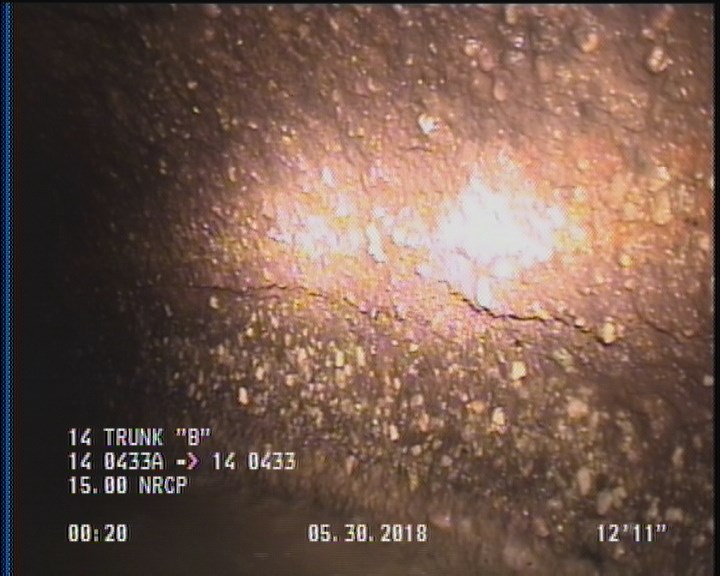

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

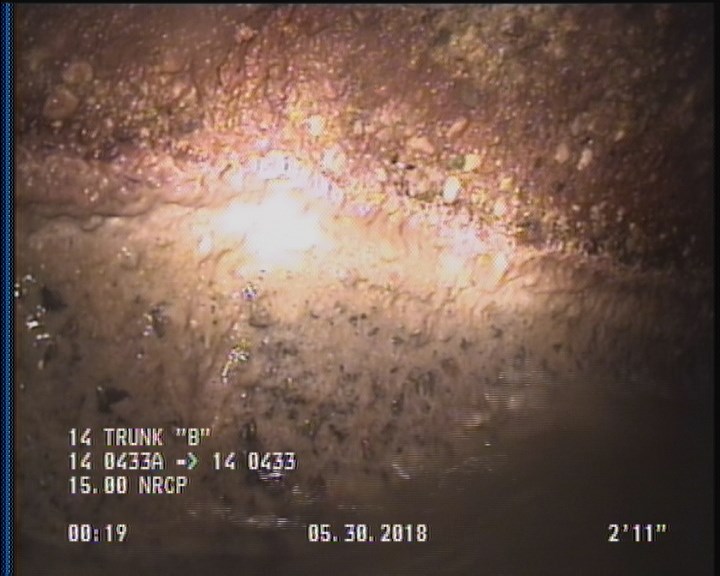

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SAP | — |
| 92.8 | SSS | — |
| 0 | MWL | — |
| 92.8 | DAGS | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | AMH | 14 0433A |
| 94.7 | AMH | 14 0433 |
| 2 | DAGS | — |
| 33.2 | TFC | — |
| 57.4 | TFC | — |
| 92.8 | SAP | — |
| 81.7 | TFC | — |
| 8.7 | TFC | — |
Properties (4)
- additional_info
- SC359378
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-30T00:17:16-07:00
