Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2018, 06:29 AM

  • 18 0705_18 0704 _22052018_234600.mp4

Date
05/22/2018
W/O
701125
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00706
PipeID
P14555
Time
11:29 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5619
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
WO_701125_TV18104_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
18 0705
Downstream MH
18 0704
Dir. of Survey
Downstream
Length Surveyed
315.8 ft.
Total Length
315.8 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 18 0705 to 18 0704
MH: 18 0705MH: 18 0704downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 07057.1 ft. MGO - General Observation - MAGNESIUM COATING START7.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start74.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish74.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start315.8 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK315.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0704315.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish

Observation photos (2)

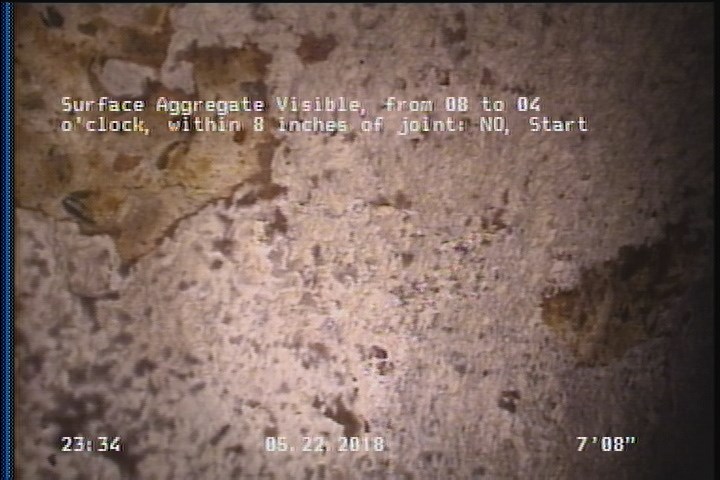

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    7.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

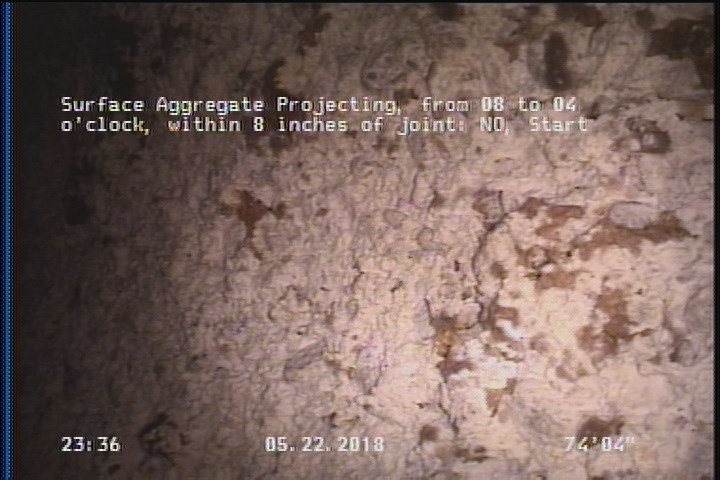

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    74.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

All inspections of P14555Work order 701125

Observations (10)

DistanceCodeObservation
74.3SAP—
0MWL—
7.1MGOMAGNESIUM COATING START
315.8MGOCONNECTION AT MH 9 OCLOCK
74.1SAV—
7.7SAV—
0MWM—
315.8AMH18 0704
315.8SAP—
0AMH18 0705

Properties (4)

additional_info
SC359174
custom_field_two
3
customer
LACSD
datetime
2018-05-22T23:29:48-07:00
