Wastewater/Activity/PacpInspection/1.0May 24, 2018, 10:50 AM
18 0683_18 0682_24052018_040833.mp4
- Date
- 05/24/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14532
- Time
- 3:50 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5620
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- NORWALK, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 18 0683
- Downstream MH
- 18 0682
- Dir. of Survey
- Downstream
- Length Surveyed
- 445.9 ft.
- Total Length
- 445.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

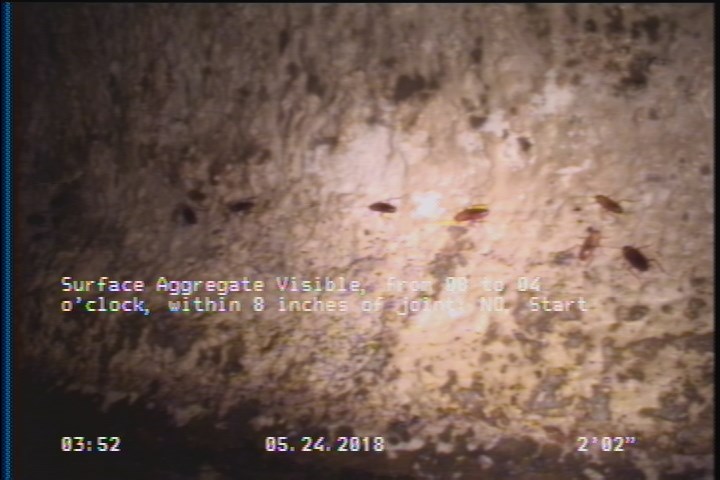

2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

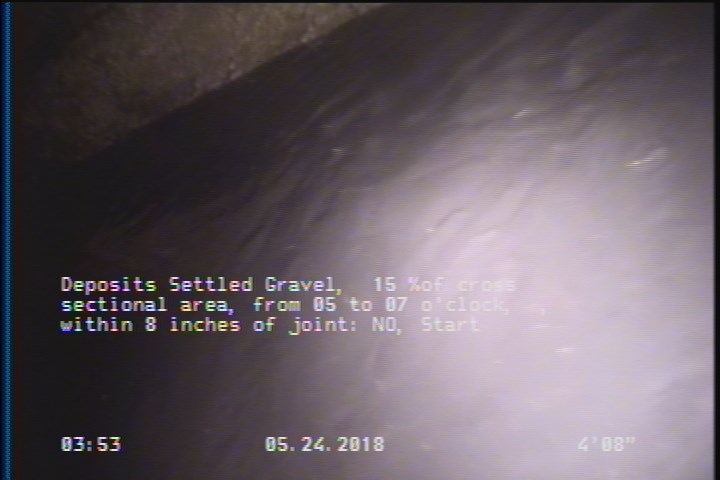

4.7 ft. - Deposits Settled Gravel, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 2.2 | SAV | — |
| 2.2 | MGO | MAGNEZIUM H.O COATING start |
| 0 | MWL | — |
| 443.6 | MGO | MAGNEZIUM H.O COATING finish |
| 443.6 | SAV | — |
| 0 | MWM | — |
| 445.9 | AMH | 18 0682 |
| 0 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 4.7 | DSGV | — |
| 441.3 | TB | — |
| 443.6 | DSGV | — |
| 0 | AMH | 18 0683 |
Properties (4)
- additional_info
- SC359175
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-24T03:50:02-07:00
