Wastewater/Activity/PacpInspection/1.0May 25, 2018, 08:25 AM
18 0681_18 0680_25052018_015750.mp4
- Date
- 05/25/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14530
- Time
- 1:25 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5622
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- NORWALK, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 18 0681
- Downstream MH
- 18 0680
- Dir. of Survey
- Downstream
- Length Surveyed
- 608.2 ft.
- Total Length
- 608.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

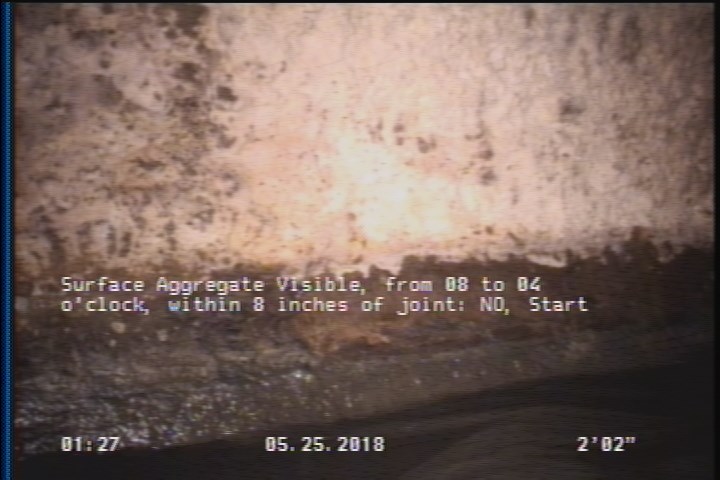

2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

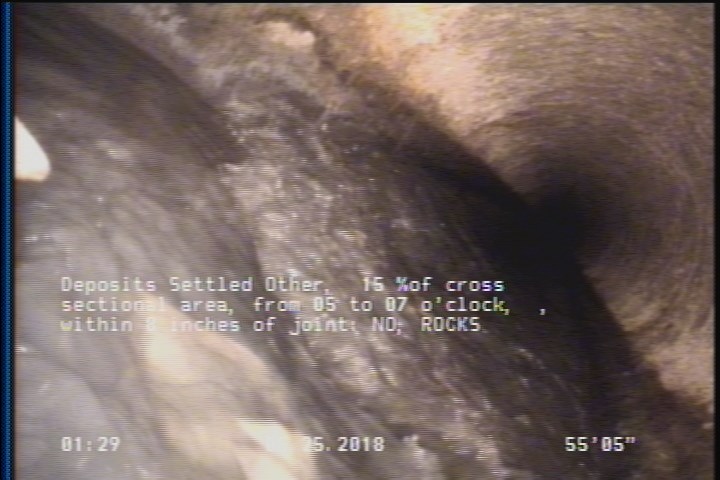

55.4 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 608.2 | AMH | 18 0680 |
| 2.2 | MGO | MAGNEZIUM H.O COATING start |
| 2.2 | SAV | — |
| 347 | TB | — |
| 607.1 | MGO | MAGNEZIUM H.O COATING finish |
| 55.4 | DSZ | ROCKS |
| 0 | AMH | 18 0681 |
| 607.1 | SAV | — |
| 607.2 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
Properties (4)
- additional_info
- SC359177
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-25T01:25:52-07:00
