Wastewater/Activity/PacpInspection/1.0May 29, 2018, 10:34 AM
18 0782_18 0781 _29052018_035036.mp4
- Date
- 05/29/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14640
- Time
- 3:34 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5623
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 0782
- Downstream MH
- 18 0781
- Dir. of Survey
- Downstream
- Length Surveyed
- 361.8 ft.
- Total Length
- 361.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

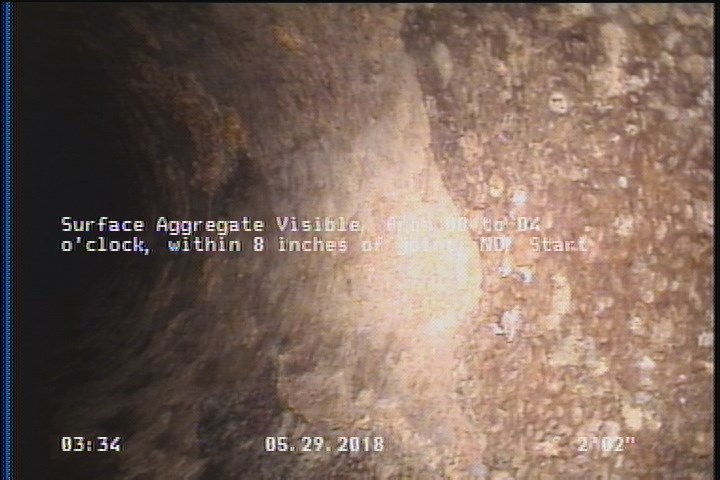

2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

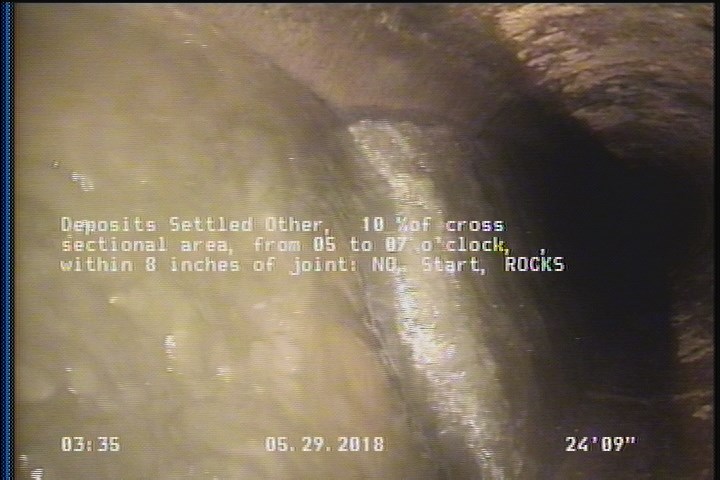

24.8 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start - ROCKS
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.2 | MGO | MAGNESIUM COATING START |
| 361.8 | SAV | — |
| 0 | MWL | — |
| 361.8 | DSZ | ROCKS |
| 361.8 | AMH | 18 0781 |
| 2.2 | SAV | — |
| 361.8 | MGO | MAGNESIUM COATING END |
| 0 | MWM | — |
| 24.8 | DSZ | ROCKS |
| 0 | AMH | 18 0782 |
Properties (4)
- additional_info
- SC359178
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-29T03:34:00-07:00
