Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 14, 2018, 09:38 AM

  • 18 0718_18 0717 _14052018_025317.mp4

Date
05/14/2018
W/O
701125
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00706
PipeID
P14570
Time
2:38 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5319
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_701125_TV18104_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
18 0718
Downstream MH
18 0717
Dir. of Survey
Downstream
Length Surveyed
397.3 ft.
Total Length
397.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0718 to 18 0717
MH: 18 0718MH: 18 0717downstream0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 07180 ft. MWL - Water Level, 40 %of cross sectional area5.5 ft. MGO - General Observation - MAGNEZIUM H.O COATING start18 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start101.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"285.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"393.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish393.5 ft. MGO - General Observation - MAGNEZIUM H.O COATING finish397.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0717

Observation photos (1)

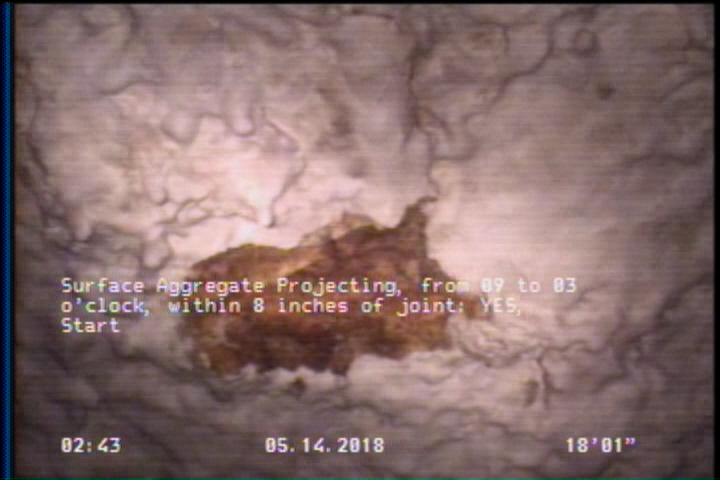

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    18 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14570Work order 701125

Observations (10)

DistanceCodeObservation
285.8TFA—
0MWM—
101.4TFA—
393.5MGOMAGNEZIUM H.O COATING finish
18SAP—
393.4SAP—
397.3AMH18 0717
0AMH18 0718
5.5MGOMAGNEZIUM H.O COATING start
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-14T02:38:28-07:00
