Wastewater/Activity/PacpInspection/1.0May 17, 2018, 07:23 AM
18 0694_18 0863_17052018_004624.mp4
- Date
- 05/17/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14544
- Time
- 12:23 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5612
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- NORWALK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 18 0694
- Downstream MH
- 18 0863
- Dir. of Survey
- Downstream
- Length Surveyed
- 310.8 ft.
- Total Length
- 310.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 183
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 183
Observation photos (2)

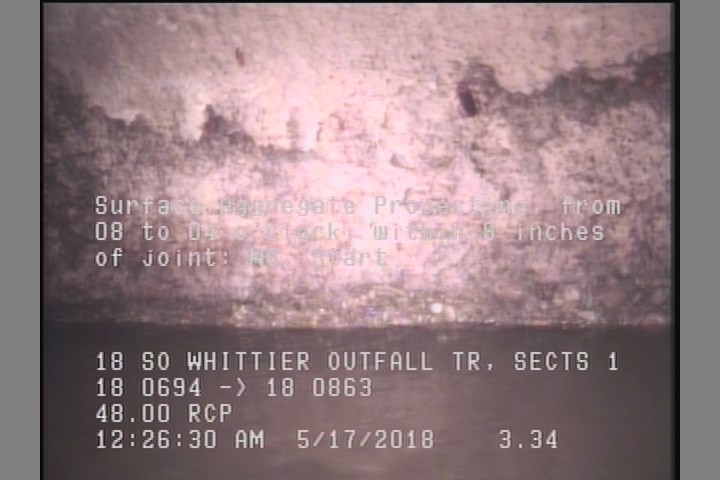

3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

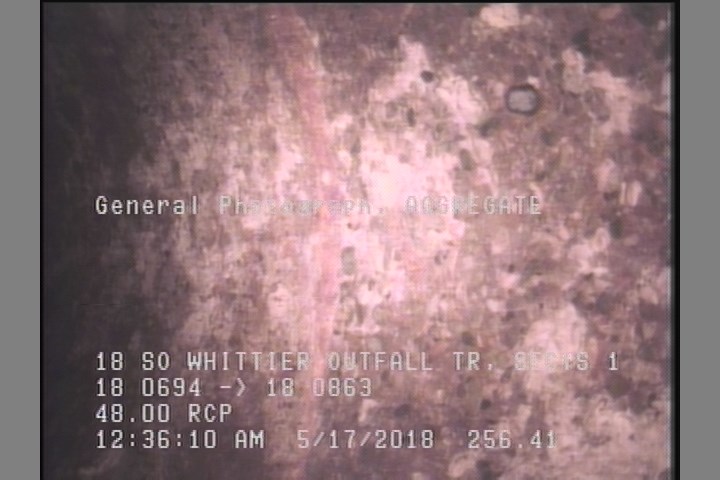

256.4 ft. - General Photograph - AGGREGATE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 310.8 | SAP | — |
| 310.8 | MGO | MAGNEZIUM H.O. FINISH |
| 256.4 | MGP | AGGREGATE |
| 3.3 | SAP | — |
| 0 | MWL | — |
| 310.8 | AMH | 18 0863 |
| 0 | MGO | MAGNESIUM H.O. START |
| 0 | AMH | 18 0694 |
| 0 | MWM | — |
| 310.8 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC359167
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-17T00:23:54-07:00
