Wastewater/Activity/PacpInspection/1.0May 16, 2018, 05:45 AM
18 0712_18 0711 _15052018_230025.mp4
- Date
- 05/15/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14562
- Time
- 10:45 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5611
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- NORWALK, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- 18 0712
- Downstream MH
- 18 0711
- Dir. of Survey
- Downstream
- Length Surveyed
- 255.2 ft.
- Total Length
- 255.2 ft.
- Structural Index
- 2
- Structural Quick
- 2C11
- Structural Rating
- 37
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (2)

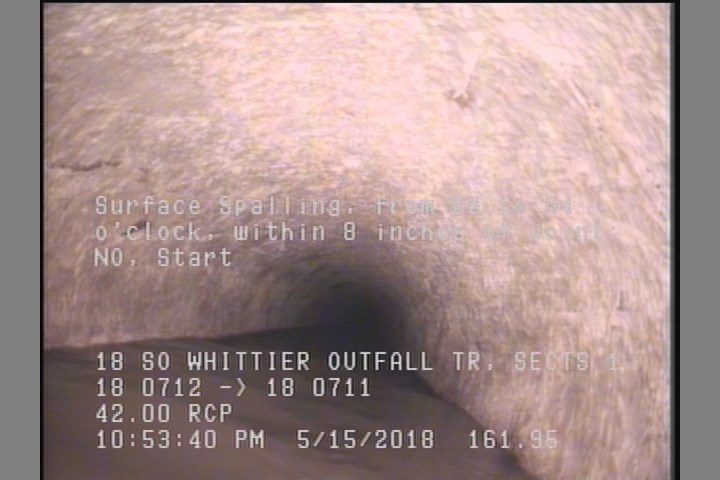

161.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

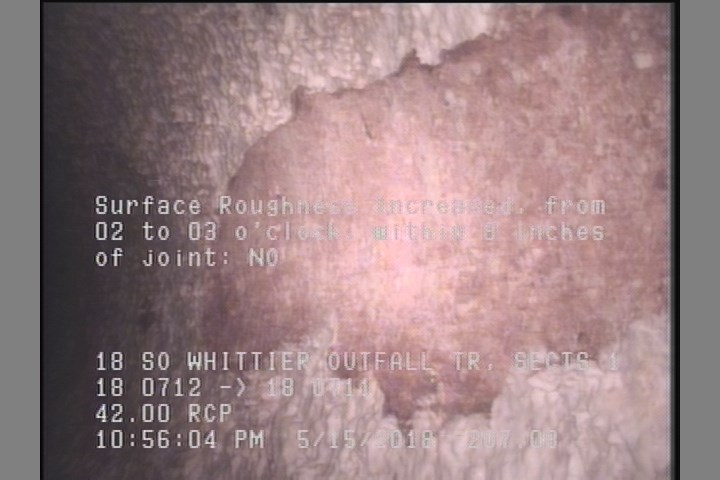

207.1 ft. - Surface Roughness Increased, from 02 to 03 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 207.1 | SRI | — |
| 255.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 255.2 | AMH | 08 0711 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | MAGNESIUM H.O. START |
| 252.1 | MGO | MAGNEZIUM H.O. FINISH |
| 161.9 | SSS | — |
| 252.1 | SSS | — |
| 0 | AMH | 18 0712 |
Properties (4)
- additional_info
- SC359452
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-15T22:45:25-07:00
