Wastewater/Activity/PacpInspection/1.0May 24, 2018, 09:36 AM
18 0685_18 0684_24052018_025011.mp4
- Date
- 05/24/2018
- W/O
- 701125
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00706
- PipeID
- P14534
- Time
- 2:36 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5620
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- NORWALK, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_701125_TV18104_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 18 0685
- Downstream MH
- 18 0684
- Dir. of Survey
- Downstream
- Length Surveyed
- 422.5 ft.
- Total Length
- 422.5 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

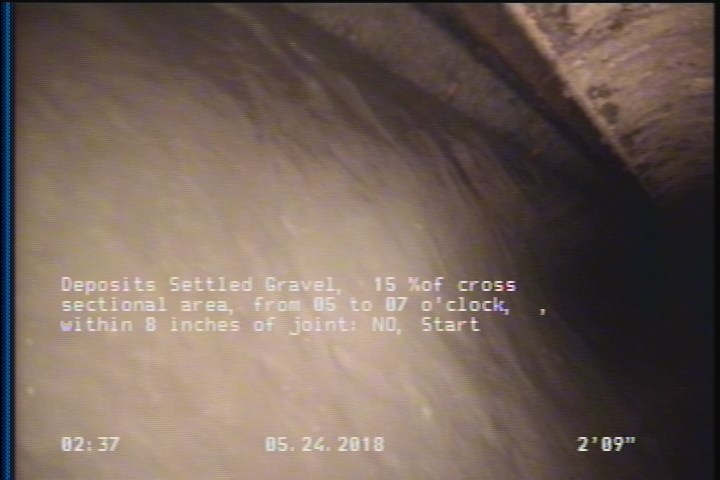

2.8 ft. - Deposits Settled Gravel, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start

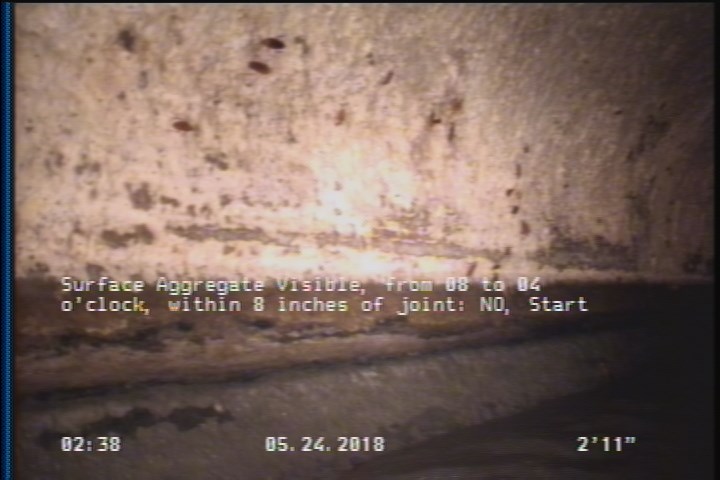

2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 2.9 | SAV | — |
| 2.8 | MGO | MAGNEZIUM H.O COATING start |
| 420.2 | MGO | MAGNEZIUM H.O COATING finish |
| 0 | AMH | 18 0685 |
| 0 | MWL | — |
| 422.5 | AMH | 18 0684 |
| 420.2 | DSGV | — |
| 420.2 | SAV | — |
| 2.8 | DSGV | — |
Properties (4)
- additional_info
- SC359175
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-24T02:36:08-07:00
