Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2018, 09:21 AM

  • 18 0728_18 0727 _10052018_023054.mp4

Date
05/10/2018
W/O
701125
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00706
PipeID
P14581
Time
2:21 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5317
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_701125_TV18104_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
18 0728
Downstream MH
18 0727
Dir. of Survey
Downstream
Length Surveyed
382.7 ft.
Total Length
382.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0728 to 18 0727
MH: 18 0728MH: 18 0727downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 07280 ft. MWM - Water Mark, 50 %of cross sectional area5 ft. MGO - General Observation - MAGNEZIUM H.O COATING start25.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"34 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start293.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"380.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish380.3 ft. MGO - General Observation - MAGNEZIUM H.O COATING finish382.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0727

Observation photos (1)

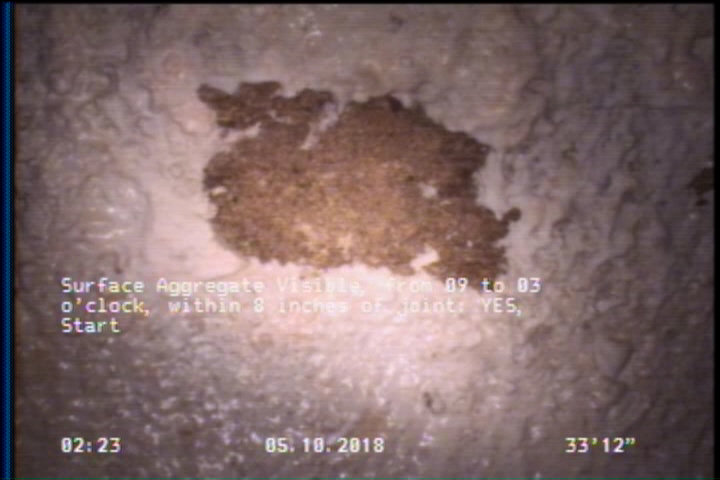

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    34 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14581Work order 701125

Observations (10)

DistanceCodeObservation
0MWL—
380.3SAV—
5MGOMAGNEZIUM H.O COATING start
0AMH18 0728
0MWM—
382.7AMH18 0727
25.7TFA—
380.3MGOMAGNEZIUM H.O COATING finish
34SAV—
293.9TFA—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-05-10T02:21:01-07:00
