Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 12, 2018, 09:11 AM

  • 29 0120_29 0089_6122018_033745.mp4

Date
06/12/2018
W/O
0711161
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00273
PipeID
P23910
Time
2:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0890
Sewer Name
29 33RD STREET SEWER
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20180612MDM_33RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0120
Downstream MH
29 0089
Dir. of Survey
Downstream
Length Surveyed
300 ft.
Total Length
300 ft.
Structural Index
2
Structural Quick
3226
Structural Rating
18
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 29 0120 to 29 0089
MH: 29 0120MH: 29 0089downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:35AM0 ft. MWL - Water Level, 5 %of cross sectional area8 ft. MGO - General Observation - 8" VCP16.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped19 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped26 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H26 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE26 ft. SSS - Surface Spalling, from 04 to 05 o'clock, within 8 inches of joint: YES67.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open69.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped78.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open88.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H88.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H117.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped119.7 ft. FC - Fracture Circumferential, from 11 to 05 o'clock, within 8 inches of joint: YES - H144.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped165.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open167.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped177.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: NO - H216.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - CAPPED219 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open267 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 5" - Open268.8 ft. FC - Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT269.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-30% ROOTS300 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (2)

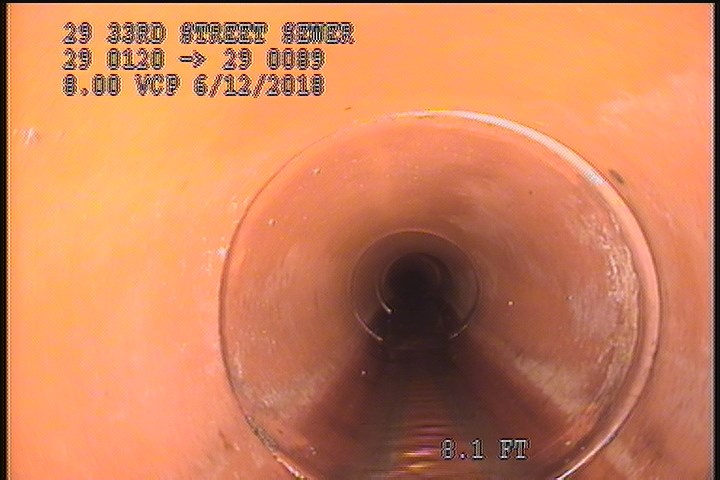

  • General Observation - 8" VCP

    8 ft. - General Observation - 8" VCP

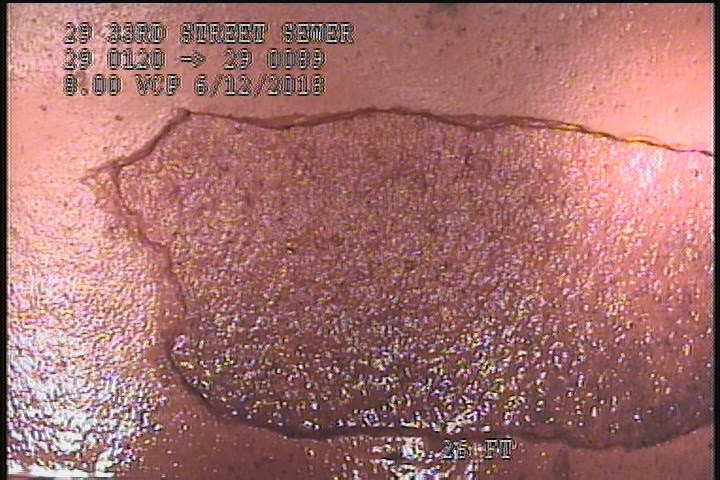

  • Surface Spalling, from 04 to 05 o'clock, within 8 inches of joint: YES

    26 ft. - Surface Spalling, from 04 to 05 o'clock, within 8 inches of joint: YES

All inspections of P23910Work order 0711161

Observations (26)

DistanceCodeObservation
219TFOpen
0MWM—
165.5TFOpen
26FLH
88.5FCH
67.4TFOpen
177.5FCH
19TFCCapped
26FLHAIRLINE
69.8TFCCapped
167.9TFCCapped
8MGO8" VCP
267TFOpen
78.2TFOpen
0AMH3:35AM
269.7TFDOpen-30% ROOTS
88.5FCH
117.6TFCCapped
300AMH4:30AM
144.5TFCCapped
268.8FCSLIGHT
216.3TFCCAPPED
16.2TFCCapped
119.7FCH
0MWL—
26SSS—

Properties (4)

custom_field_three
HAIRLINE FRACTURE
custom_field_two
4
customer
LACSD
datetime
2018-06-12T02:11:37-07:00
