Wastewater/Activity/PacpInspection/1.0Jun 13, 2018, 08:09 PM
Section#10_30 0030A_30 0029__6132018__I0026.mp4
- Date
- 06/13/2018
- W/O
- 0706884
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00878
- PipeID
- P25928
- Time
- 1:09 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0026
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- HERMOSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 04
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180608DF_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 30 0029
- Downstream MH
- 30 0028A
- Dir. of Survey
- Downstream
- Length Surveyed
- 36 ft.
- Total Length
- 36 ft.
- Structural Index
- 3
- Structural Quick
- 3A26
- Structural Rating
- 45
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 45
Observation photos (5)

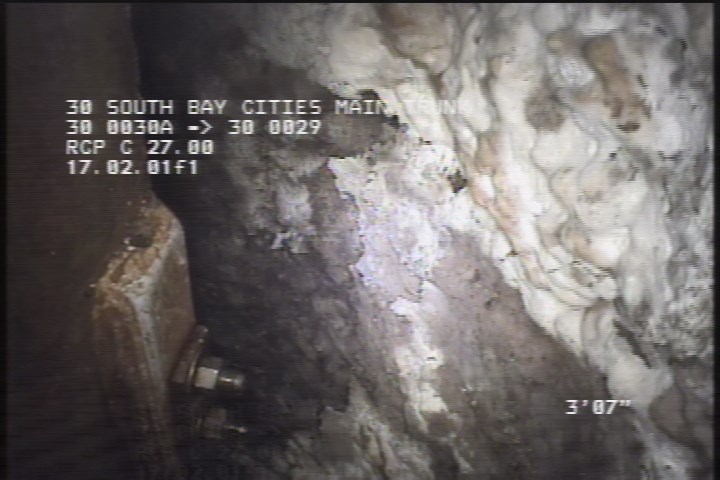

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

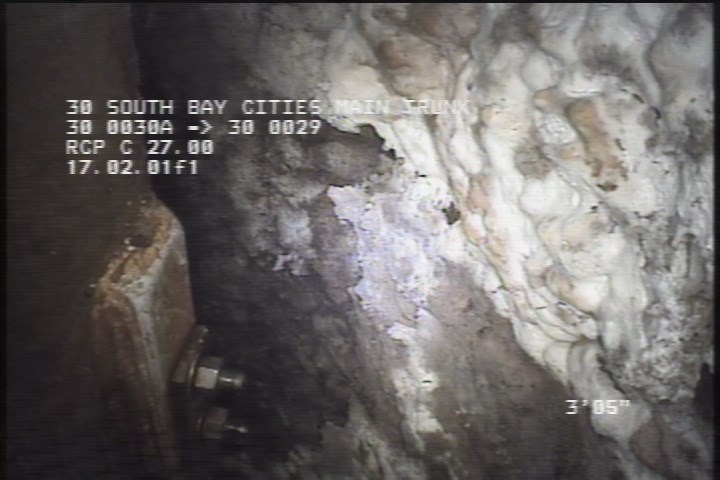

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

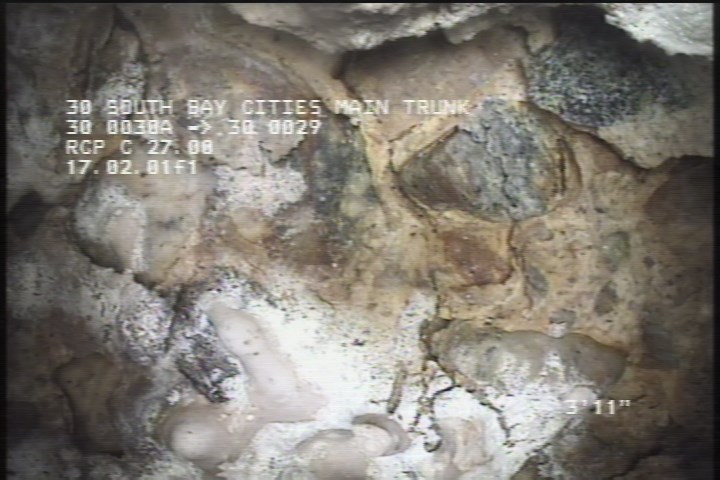

3.9 ft. - General Photograph

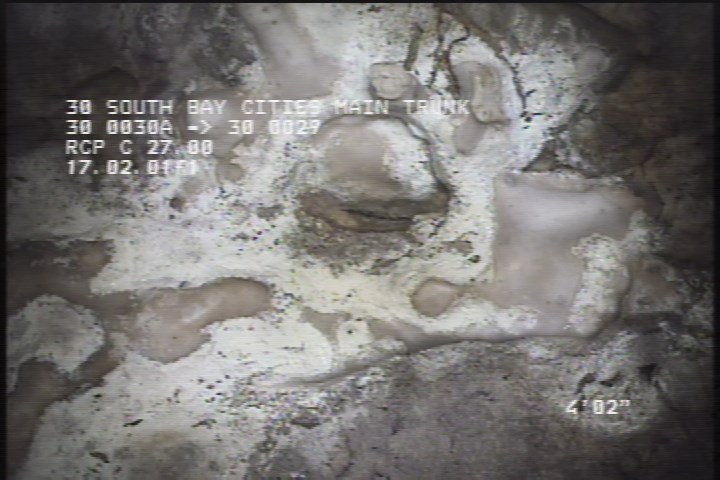

4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

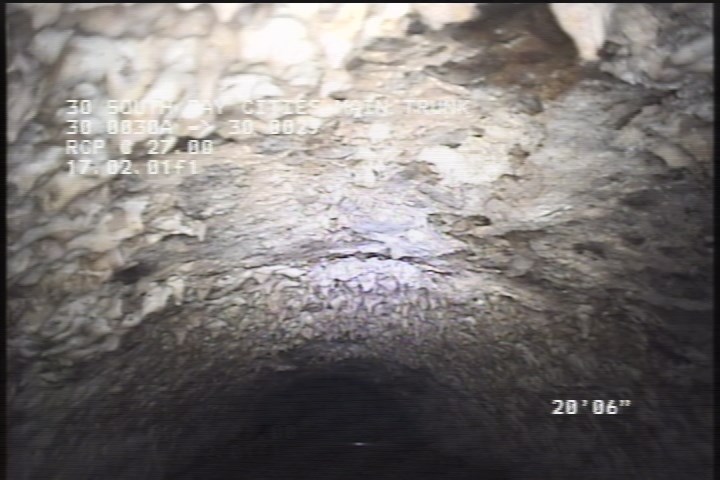

20.5 ft. - General Photograph
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 30.2 | SAV | — |
| 0 | MWL | — |
| 30.3 | SZ | 50% MAG |
| 35.9 | MGO | CONN @ MH 3 O'CLOCK/ACTIVE |
| 20.5 | MGP | — |
| 0 | AMH | 1:11 PM |
| 2 | SSS | — |
| 30.2 | SAP | — |
| 4 | SAP | — |
| 30.2 | SSS | — |
| 0 | MWM | — |
| 2 | SZ | 50% MAG |
| 2 | SAV | — |
| 3.9 | MGP | — |
| 36 | AMH | 1:19 PM |
Properties (4)
- additional_info
- PAPERWORK IS CORRECT. ON SCREEN DISPLAY IS WRONG.(THIS IS MH 0029 TO MH 0028A)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-13T13:09:50-07:00
