Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 11:36 AM

  • C 0209_C 0414_682018_044619.mp4

Date
06/08/2018
W/O
0706820
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00124
PipeID
P09601
Time
4:36 AM
Certificate
U-014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0886
Sewer Name
C JOINT OUTFALL C - UNIT 3E
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20180604MDM_JOINT_OUTFALL_C_UNIT_3E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
C 0209
Downstream MH
C 0414
Dir. of Survey
Downstream
Length Surveyed
43.9 ft.
Total Length
43.9 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole C 0209 to C 0414
MH: C 0209MH: C 0414downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 90% START 9:00 TO 3:002 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE16.4 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE INDUSTRIAL WASTE40.5 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE43.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE43.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE INDUSTRIAL WASTE43.6 ft. MGO - General Observation - MAG COAT 90% FINISH43.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active43.9 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (4)

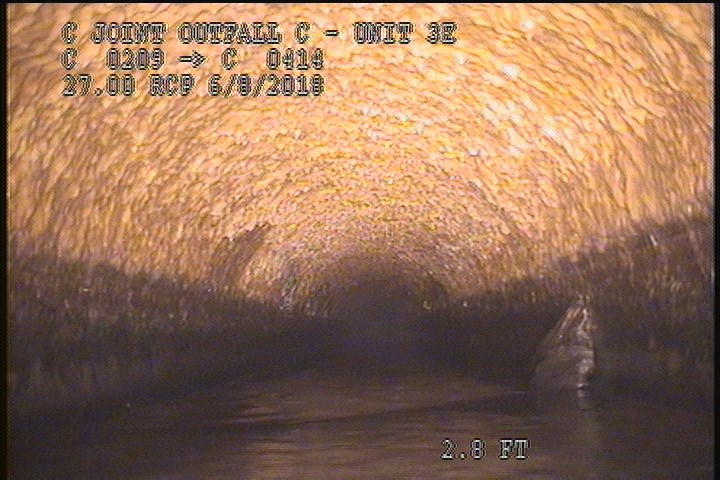

  • General Observation - MAG COAT 90% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 90% START 9:00 TO 3:00

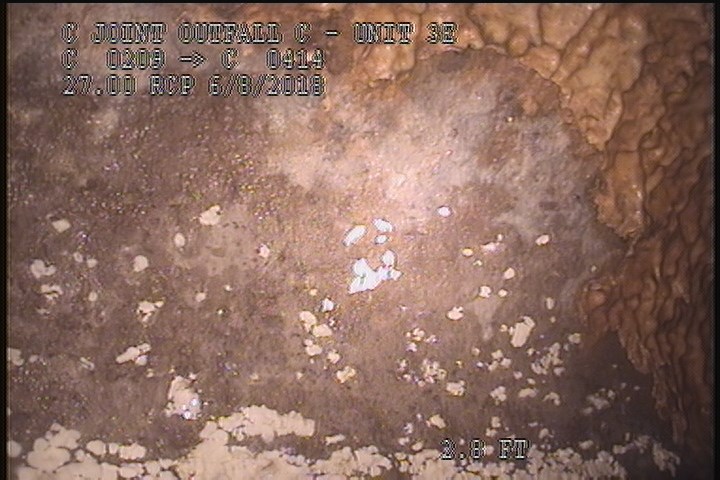

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

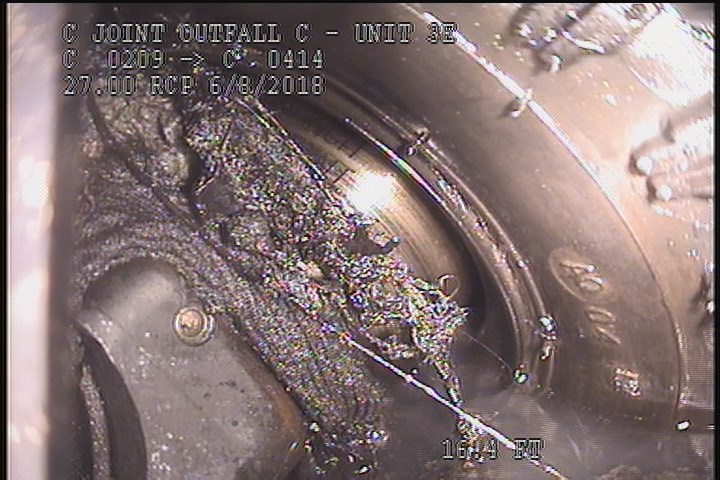

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE INDUSTRIAL WASTE

    16.4 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE INDUSTRIAL WASTE

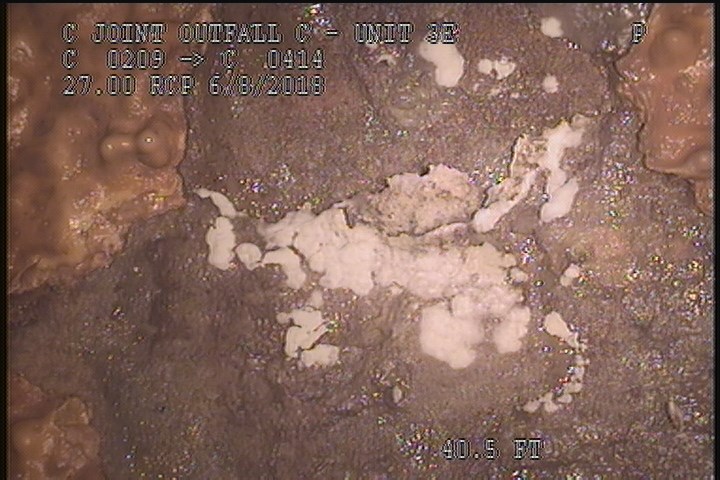

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    40.5 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

All inspections of P09601Work order 0706820

Observations (13)

DistanceCodeObservation
0MWL—
43.9AMH4:55AM
0AMH4:45AM
43.6SSSBLISTERING PEELING CONCRETE
0MGOConn. @ Mh, 9 O' Clock. Capped
2MGOMAG COAT 90% START 9:00 TO 3:00
43.6DSZSLUDGE INDUSTRIAL WASTE
0MWM—
43.6MGOMAG COAT 90% FINISH
16.4DSZSLUDGE INDUSTRIAL WASTE
2SSSBLISTERING PEELING CONCRETE
43.6MGOConn. @ Mh, 3 O' Clock. Active
40.5SSSPEELING CONCRETE

Properties (4)

custom_field_three
BLISTERING PEELING CONCRETE--90% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2018-06-08T04:36:56-07:00
