Wastewater/Activity/PacpInspection/1.0May 31, 2018, 06:23 PM
A 0304_A 0303_5312018_120512.mp4
- Date
- 05/31/2018
- W/O
- 0706684
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00325
- PipeID
- P08214
- Time
- 11:23 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7722
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- SOUTH EL MONTE
- Loc. details
- Creek
- Location Code
- K
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 33
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180531SHO_JOA1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0304
- Downstream MH
- A 0303
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (2)

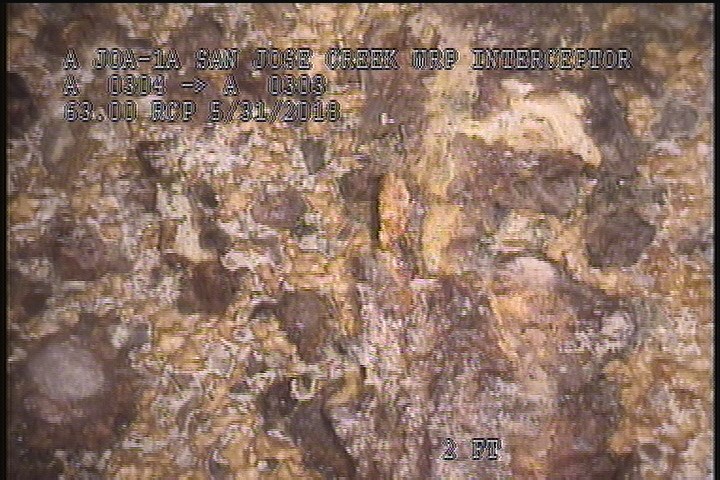

2 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: YES

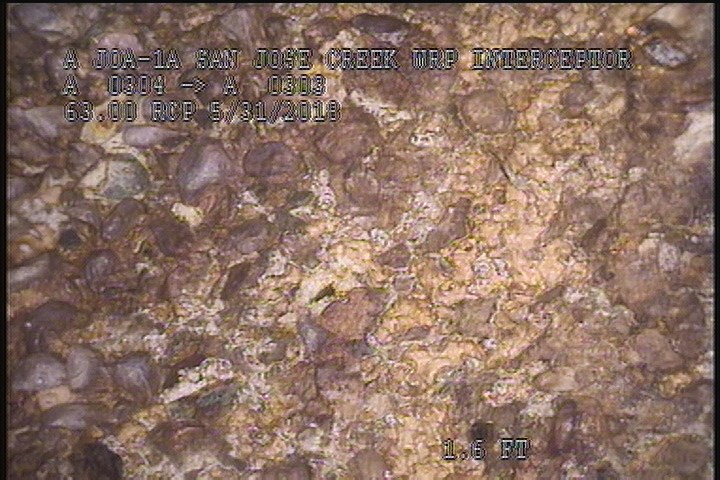

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 1205 |
| 2 | SRC | — |
| 2 | MSA | DOWNLEG OF THE SIPHON |
| 0 | MWM | — |
| 2 | SAP | — |
Properties (5)
- additional_info
- RFIR, LOOKING AT THE DOWNLEG OF THE SIPHON
- custom_field_three
- CORRODED/BROKEN REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-31T11:23:33-07:00
