Wastewater/Activity/PacpInspection/1.0May 8, 2018, 07:05 AM
02 0692_02 0691_08052018_002659.mp4
- Date
- 05/08/2018
- W/O
- 701686
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00311
- PipeID
- P04576
- Time
- 12:05 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5659
- Sewer Name
- 02 WOODRUFF AVENUE TRUNK
- City
- DOWNEY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_701686_TV02370_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0692
- Downstream MH
- 02 0691
- Dir. of Survey
- Downstream
- Length Surveyed
- 528.9 ft.
- Total Length
- 528.9 ft.
- Structural Index
- 3
- Structural Quick
- 3T2R
- Structural Rating
- 501
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 501
Observation photos (2)

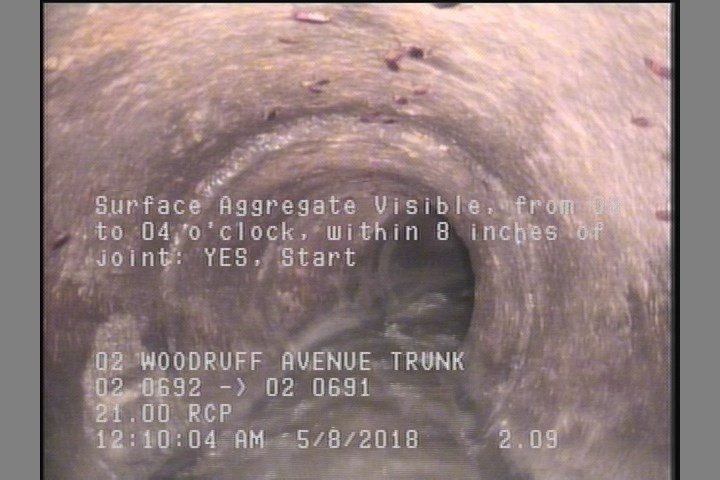

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

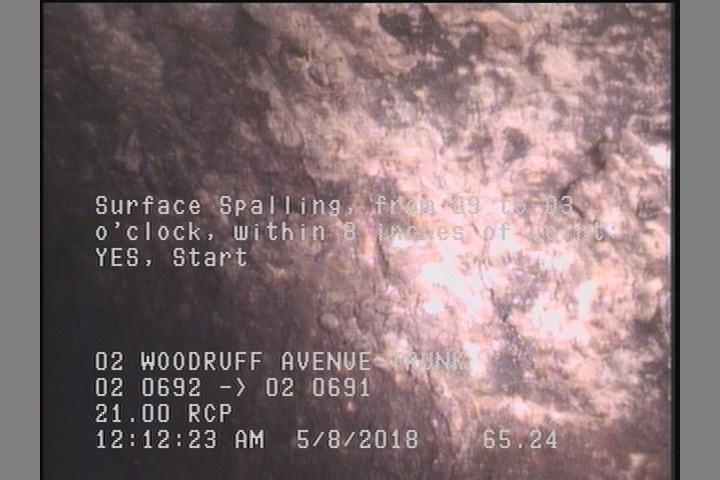

65.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 65.2 | SSS | — |
| 528.9 | SSS | — |
| 2.1 | SAV | — |
| 0 | MWM | — |
| 500.8 | TFC | — |
| 0 | AMH | 02 0692 |
| 528.9 | SAV | — |
| 0 | MGO | CONNECTION AT MH 7 O'CLOCK |
| 387.8 | TFC | — |
| 451.3 | TFC | — |
| 362.9 | TFC | — |
| 0 | MGO | CONNECTION AT MH 2 O'CLOCK |
| 0 | MWL | — |
| 371.4 | TFC | — |
| 528.9 | AMH | 02 0691 |
| 355.1 | TFC | — |
Properties (4)
- additional_info
- SC359315
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-08T00:05:46-07:00
