Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 8, 2018, 07:27 AM

  • 02 0691_02 0690_08052018_004925.mp4

Date
05/08/2018
W/O
701686
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00311
PipeID
P03246
Time
12:27 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5659
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
30
Purpose
Routine Assessment
Project
WO_701686_TV02370_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 0691
Downstream MH
02 0690
Dir. of Survey
Downstream
Length Surveyed
509.3 ft.
Total Length
509.3 ft.
Structural Index
3
Structural Quick
3S2S
Structural Rating
505
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
505
Pipe schematic from manhole 02 0691 to 02 0690
MH: 02 0691MH: 02 0690downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 06912.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start94.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"166.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"509.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0690509.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish509.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

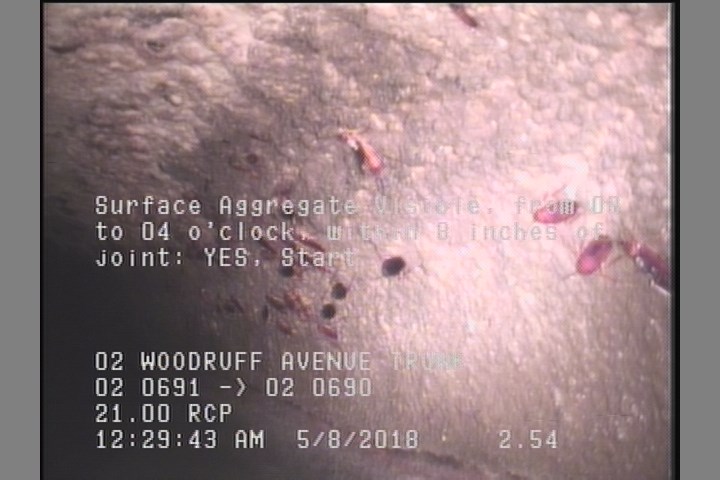

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

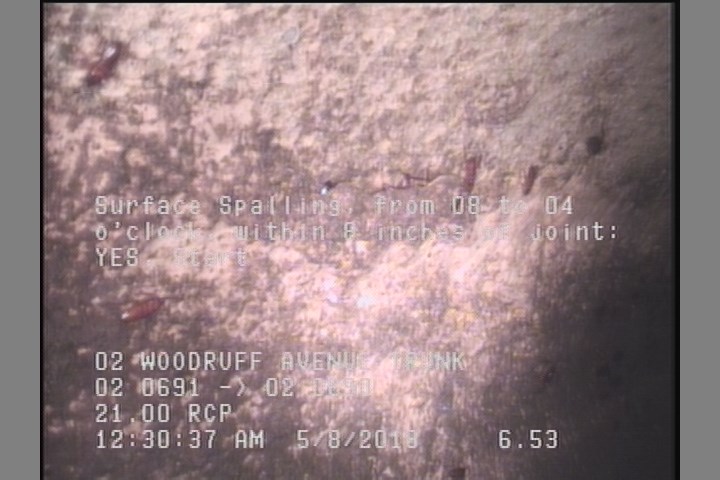

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P03246Work order 701686

Observations (10)

DistanceCodeObservation
0MWL—
509.3AMH02 0690
2.5SAV—
509.3SAV—
509.3SSS—
6.5SSS—
0MWM—
94.8TFC—
0AMH02 0691
166.6TFC—

Properties (4)

additional_info
SC359315
custom_field_two
3
customer
LACSD
datetime
2018-05-08T00:27:57-07:00
