Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2018, 05:21 AM

  • 18 0579_18 0284 _17052018_224101.mp4

Date
05/17/2018
W/O
701652
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00702
PipeID
P14113
Time
10:21 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5613
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
WO_701652_TV18178_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0579
Downstream MH
18 0284
Dir. of Survey
Downstream
Length Surveyed
363.9 ft.
Total Length
363.9 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
216
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
216
Pipe schematic from manhole 18 0579 to 18 0284
MH: 18 0579MH: 18 0284downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 05790 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2.2 ft. MGO - General Observation - MAGNESIUM H.O. START24.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"25.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"123.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"126.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"179.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"179.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"227.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"276.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"278.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"328.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"334 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"361 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish361 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH363.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0284

Observation photos (2)

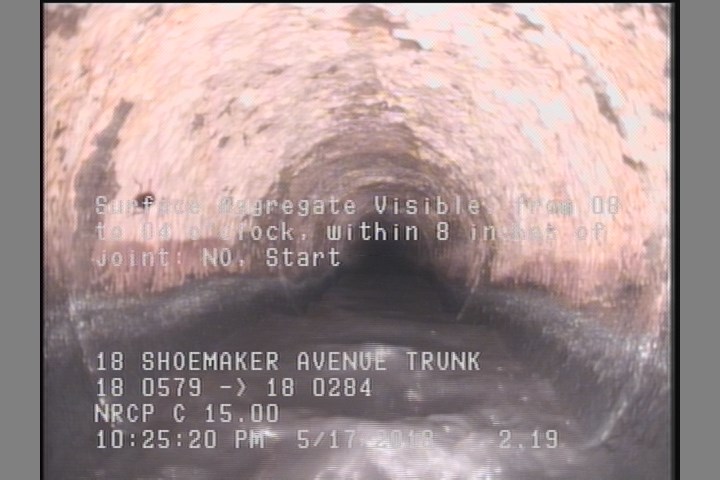

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

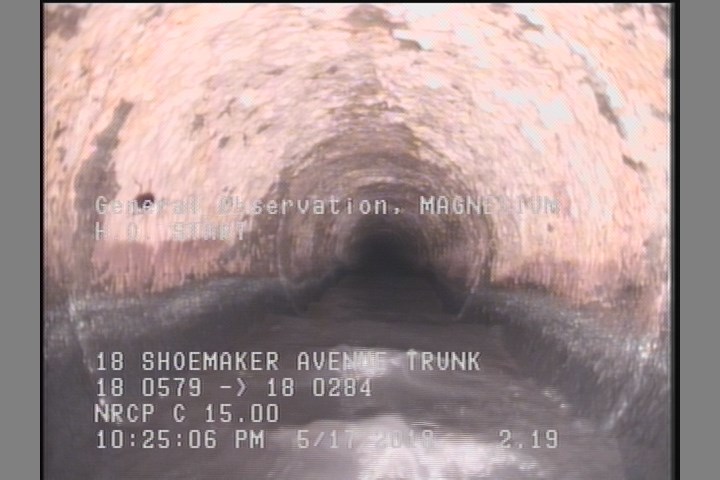

  • General Observation - MAGNESIUM H.O. START

    2.2 ft. - General Observation - MAGNESIUM H.O. START

All inspections of P14113Work order 701652

Observations (23)

DistanceCodeObservation
2.2SAV—
123.9TFC—
78.8TFC—
278.1TFC—
0AMH18 0579
0MGOCONNECTION AT MH 3 O'CLOCK
24.2TFC—
179.2TFC—
328.3TFC—
2.2MGOMAGNESIUM H.O. START
361SAV—
363.9AMH18 0284
223.3TFC—
179.2TFC—
227.3TFC—
0MWL—
0MWM—
25.9TFC—
334TFC—
126.5TFC—
78.8TFC—
361MGOMAGNEZIUM H.O. FINISH
276.5TFC—

Properties (4)

additional_info
SC359168
custom_field_two
3
customer
LACSD
datetime
2018-05-17T22:21:29-07:00
