Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2018, 05:42 AM

  • 18 0284_18 0283 _17052018_230038.mp4

Date
05/17/2018
W/O
701652
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00702
PipeID
P14112
Time
10:42 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5613
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
WO_701652_TV18178_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0284
Downstream MH
18 0283
Dir. of Survey
Downstream
Length Surveyed
331.7 ft.
Total Length
331.7 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
195
O&M Index
2
O&M Quick
2C00
O&M Rating
44
Overall Index
3
Overall Quick
—
Overall Rating
239
Pipe schematic from manhole 18 0284 to 18 0283
MH: 18 0284MH: 18 0283downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 02840 ft. MWM - Water Mark, 35 %of cross sectional area2.3 ft. MGO - General Observation - MAGNESIUM H.O. START2.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start27 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"30.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"39.2 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start76.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"78.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"124.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"127.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"150.5 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish179.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"182.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"227.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"231 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"279.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"282.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"329 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH331.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK331.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK331.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0283

Observation photos (3)

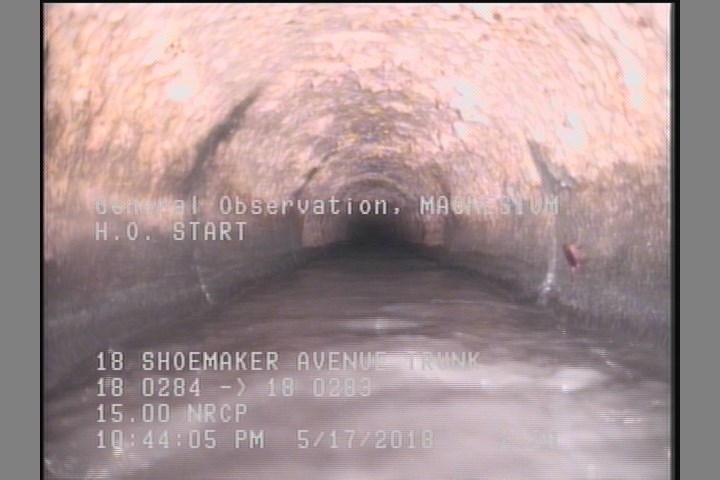

  • General Observation - MAGNESIUM H.O. START

    2.3 ft. - General Observation - MAGNESIUM H.O. START

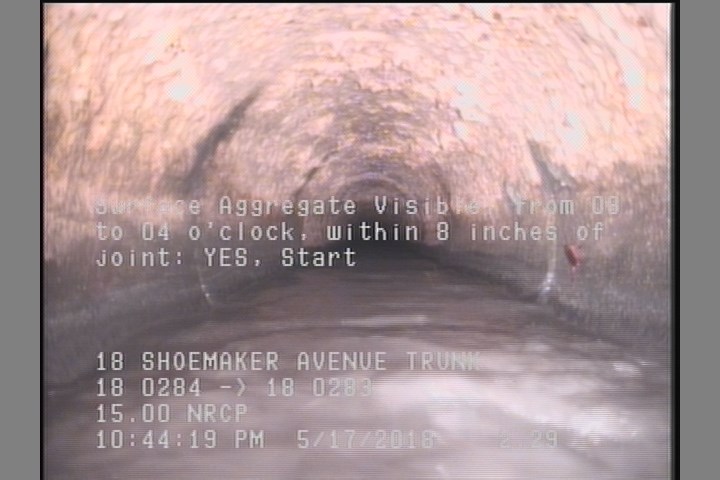

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

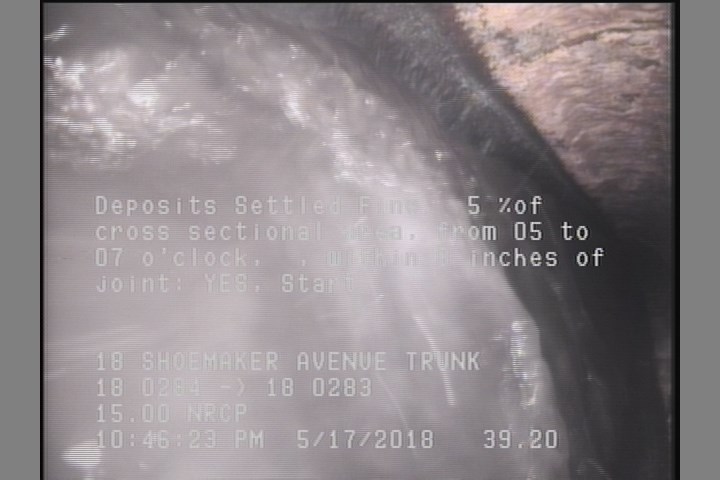

  • Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    39.2 ft. - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P14112Work order 701652

Observations (24)

DistanceCodeObservation
0MWL—
331.7MGOCONNECTION AT MH 3 O'CLOCK
76.4TFC—
182.3TFC—
30.3TFC—
127.2TFC—
0AMH18 0284
0MWM—
282.8TFC—
150.5DSF—
179.4TFC—
2.3MGOMAGNESIUM H.O. START
2.3SAV—
329SAV—
27TFC—
331.7MGOCONNECTION AT MH 9 O'CLOCK
329MGOMAGNEZIUM H.O. FINISH
78.5TFC—
331.7AMH18 0283
279.2TFC—
39.2DSF—
231TFC—
227.8TFC—
124.4TFC—

Properties (4)

additional_info
SC359168
custom_field_two
3
customer
LACSD
datetime
2018-05-17T22:42:19-07:00
