Wastewater/Activity/PacpInspection/1.0Apr 27, 2018, 06:45 PM
18 0444_18 0443 _08052018_025558.mp4
- Date
- 04/27/2018
- W/O
- 701393
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00675
- PipeID
- P14295
- Time
- 11:45 AM
- Certificate
- U-715-0700753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5314
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_701393_TV18097_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0444
- Downstream MH
- 18 0443
- Dir. of Survey
- Downstream
- Length Surveyed
- 1.2 ft.
- Total Length
- 1.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

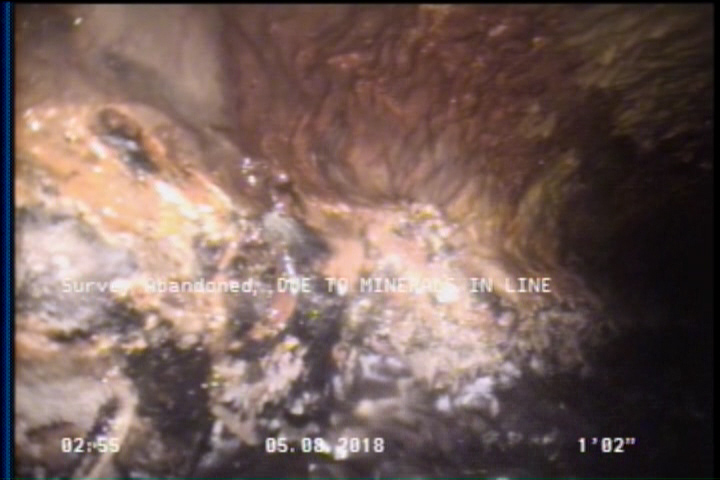

1.2 ft. - Survey Abandoned - DUE TO MINERALS IN LINE

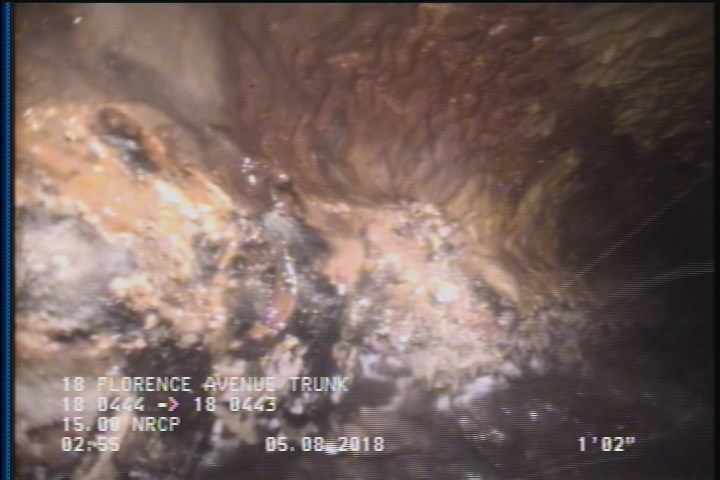

1.2 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0444 |
| 1.2 | MSA | DUE TO MINERALS IN LINE |
| 1.2 | DAE | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-27T11:45:40-07:00
