Wastewater/Activity/PacpInspection/1.0May 9, 2018, 09:37 AM
02 1406_02 1405 _09052018_024834.mp4
- Date
- 05/09/2018
- W/O
- 701119
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02977
- Time
- 2:37 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5661
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_701119_TV02220_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 02 1406
- Downstream MH
- 02 1405
- Dir. of Survey
- Downstream
- Length Surveyed
- 350.1 ft.
- Total Length
- 350.1 ft.
- Structural Index
- 4
- Structural Quick
- 5M3S
- Structural Rating
- 653
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 653
Observation photos (4)

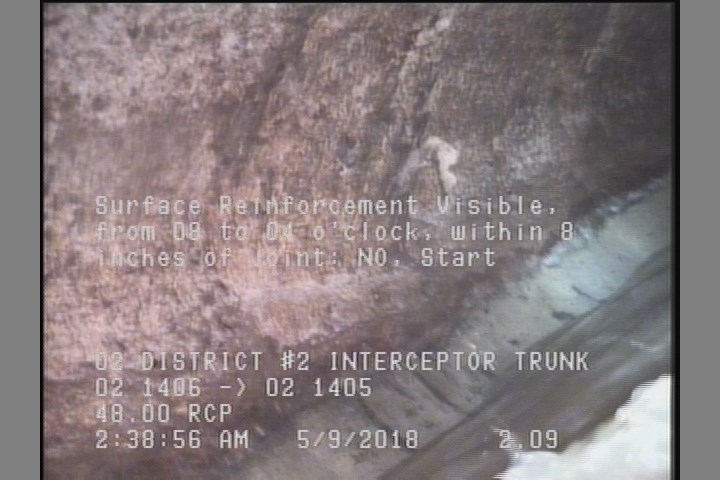

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

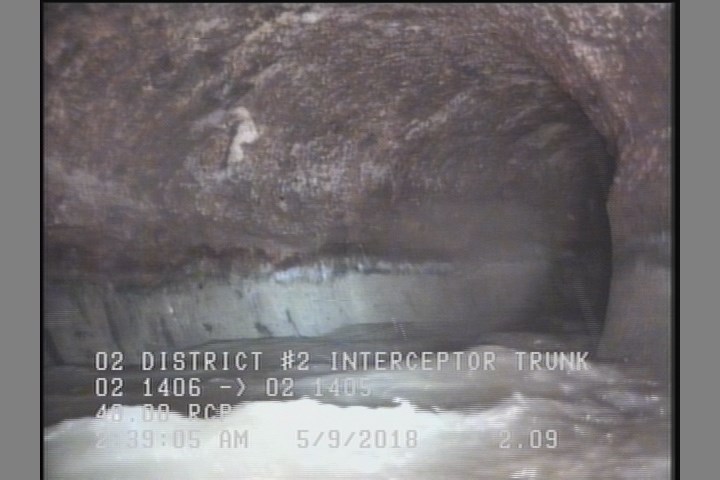

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

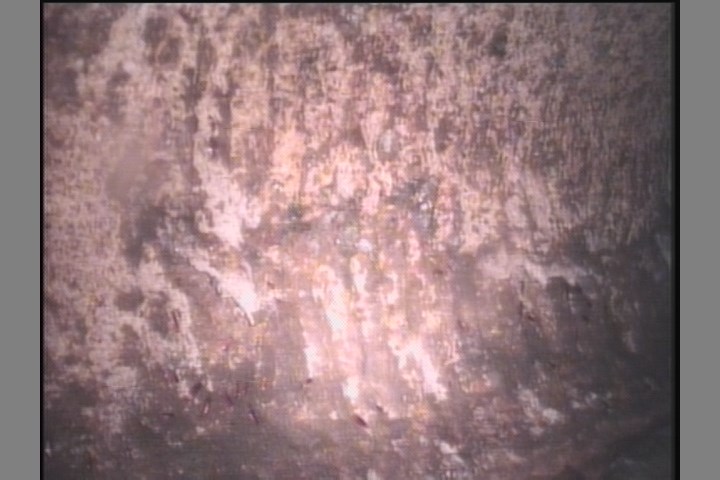

61.2 ft. - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

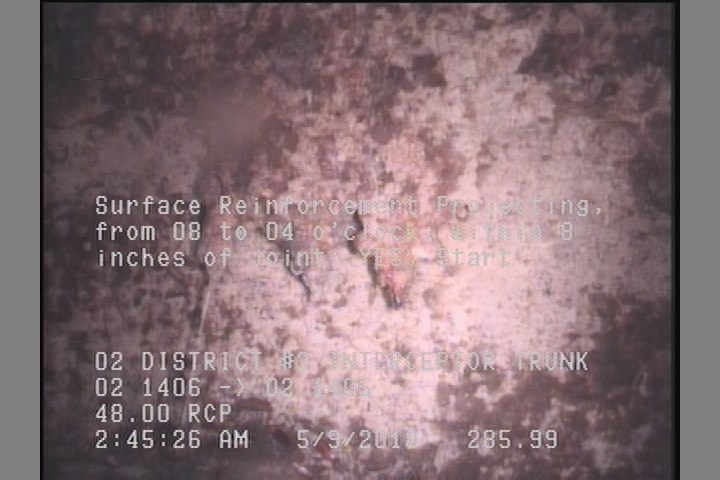

286 ft. - Surface Reinforcement Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 286 | SRP | — |
| 350.1 | AMH | 02 1405 |
| 2.1 | SAP | — |
| 0 | AMH | 02 1406 |
| 2.1 | SRV | — |
| 0 | MWM | — |
| 350.1 | SRV | — |
| 61.2 | SRP | — |
| 350.1 | SRP | — |
| 0 | MWL | — |
| 350.1 | SAP | — |
| 152.9 | SRP | — |
Properties (4)
- additional_info
- SC359317
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-09T02:37:23-07:00
