Wastewater/Activity/PacpInspection/1.0May 9, 2018, 10:10 AM
02 1423_02 1422 _09052018_031505.mp4
- Date
- 05/09/2018
- W/O
- 701119
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02994
- Time
- 3:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5661
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- COMMERCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_701119_TV02220_MAY2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- 02 1423
- Downstream MH
- 02 1422
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

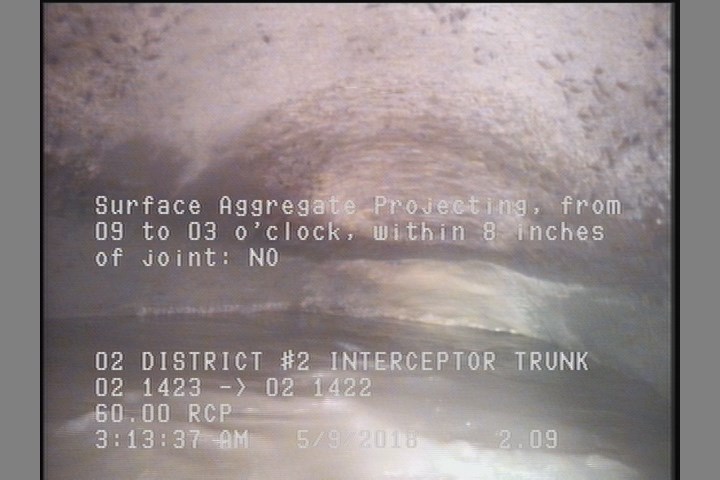

2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO

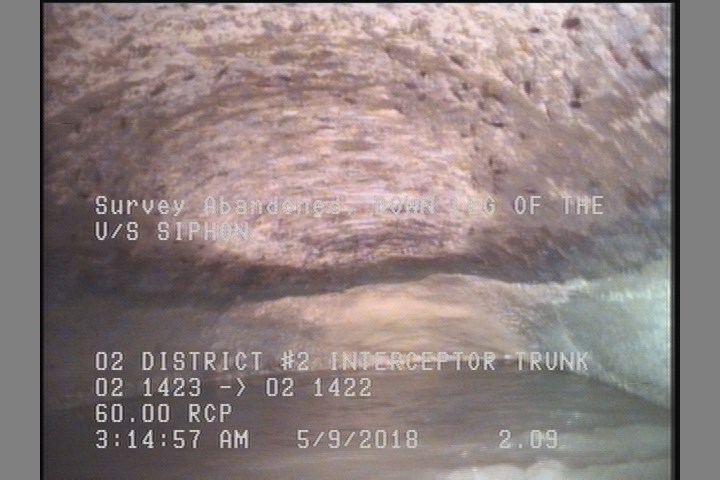

2.1 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON

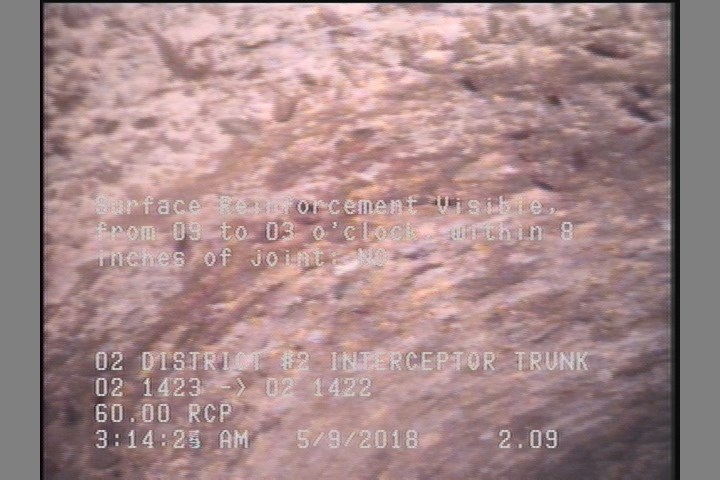

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
| 0 | AMH | 02 1423 |
| 0 | MWM | — |
| 2.1 | SRV | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359317
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-09T03:10:02-07:00
