Wastewater/Activity/PacpInspection/1.0May 22, 2018, 05:45 AM
18 0275_18 0274 _21052018_225617.mp4
- Date
- 05/21/2018
- W/O
- 701118
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00702
- PipeID
- P14103
- Time
- 10:45 PM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5615
- Sewer Name
- 18 SHOEMAKER AVENUE TRUNK
- City
- NORWALK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_701118_TV18148_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0275
- Downstream MH
- 18 0274
- Dir. of Survey
- Downstream
- Length Surveyed
- 152.1 ft.
- Total Length
- 152.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

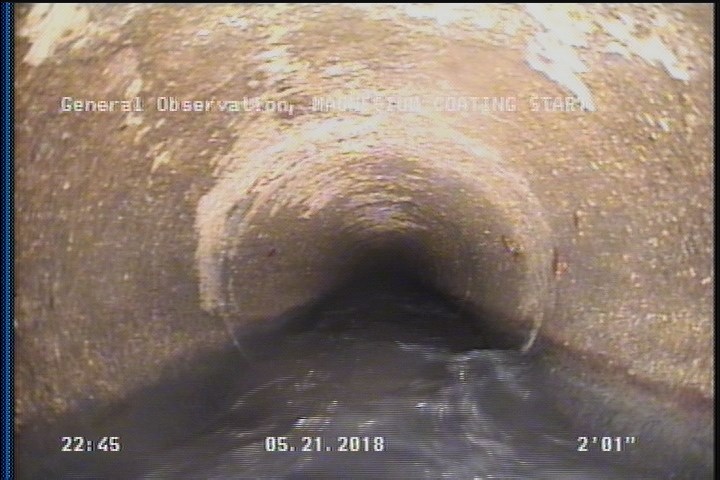

2.1 ft. - General Observation - MAGNESIUM COATING START

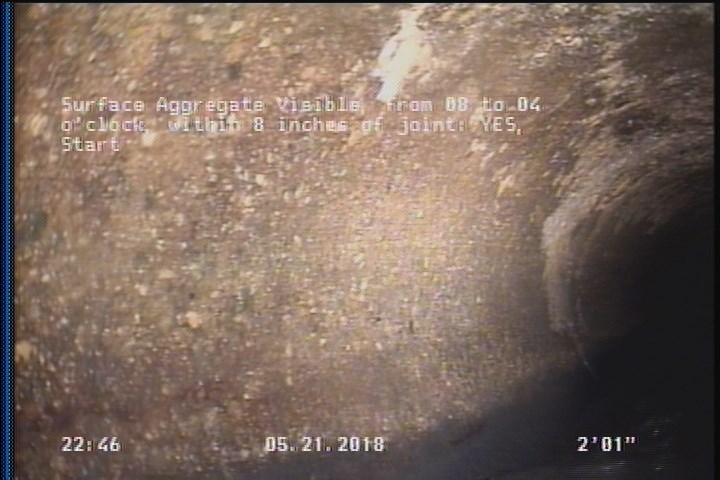

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

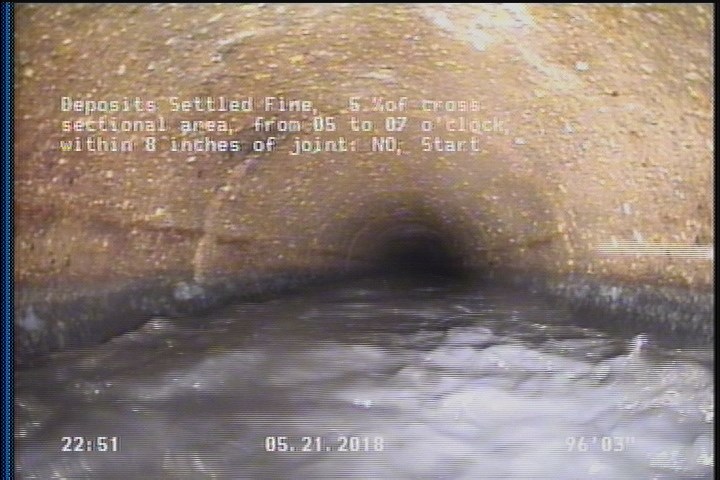

96.3 ft. - Deposits Settled Fine, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 66.7 | TFC | — |
| 118.2 | TFC | — |
| 96.3 | DSF | — |
| 69.7 | TFC | — |
| 149.8 | MGO | MAGNESIUM COATING END |
| 18.5 | TFC | — |
| 21.6 | TB | — |
| 0 | MGO | CONNECTION AT MH 3 OCLOCK |
| 152.1 | AMH | 18 0274 |
| 2.1 | MGO | MAGNESIUM COATING START |
| 149.8 | SAV | — |
| 0 | AMH | 18 0275 |
| 149.8 | DSF | — |
| 2.1 | SAV | — |
| 0 | MWM | — |
| 120.9 | TB | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359170
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-21T22:45:22-07:00
