Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 22, 2018, 05:03 AM

  • 18 0278_18 0277 _21052018_221754.mp4

Date
05/21/2018
W/O
701118
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00702
PipeID
P14106
Time
10:03 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5615
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
WO_701118_TV18148_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0278
Downstream MH
18 0277
Dir. of Survey
Downstream
Length Surveyed
200 ft.
Total Length
200 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 0278 to 18 0277
MH: 18 0278MH: 18 0277downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 02780 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - MAGNESIUM START2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start19.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"22.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"71 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"73.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"119.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"122.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"171.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"174.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"196.2 ft. MGO - General Observation - MAGNESIUM FINISH196.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish200 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK200 ft. AMH - Downstream Manhole, Survey Ends - 18 0277

Observation photos (2)

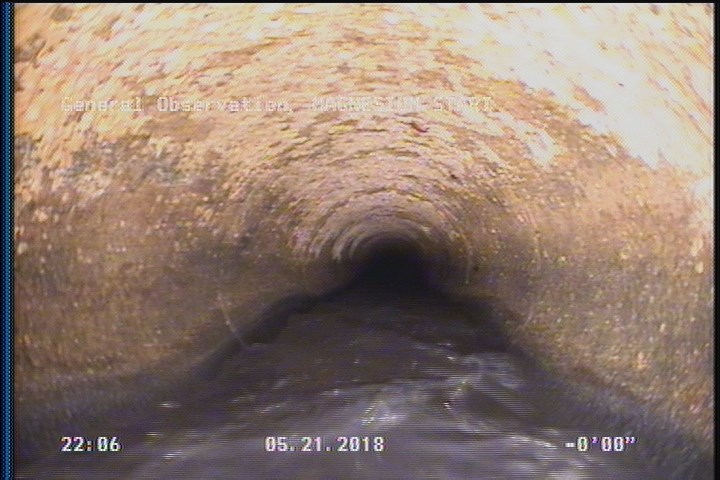

  • General Observation - MAGNESIUM START

    0 ft. - General Observation - MAGNESIUM START

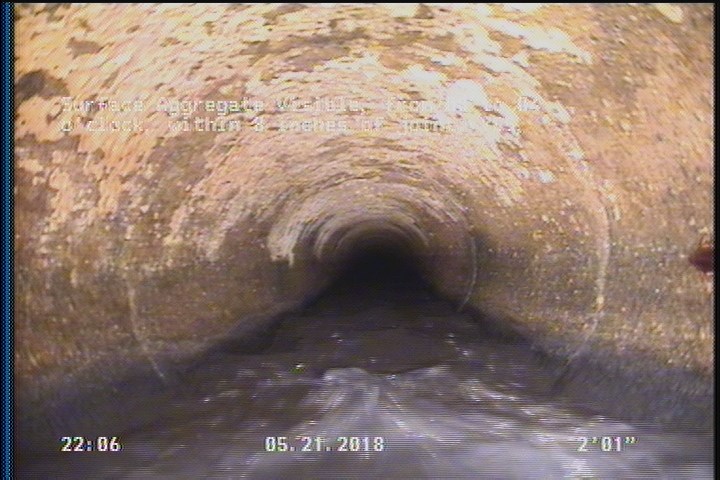

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14106Work order 701118

Observations (18)

DistanceCodeObservation
196.2MGOMAGNESIUM FINISH
71TFC—
196.2SAV—
0MWM—
119.4TFC—
0MGOCONNECTION AT MH 9 OCLOCK
0AMH18 0278
122.5TFC—
200MGOCONNECTION AT MH 3 OCLOCK
22.4TFC—
73.8TFC—
174.4TFC—
0MWL—
200AMH18 0277
0MGOMAGNESIUM START
2.1SAV—
171.2TFC—
19.5TFC—

Properties (4)

additional_info
SC359170
custom_field_two
3
customer
LACSD
datetime
2018-05-21T22:03:11-07:00
