Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 15, 2018, 10:01 AM

  • 21 0215_H 0989 _15052018_030817.mp4

Date
05/15/2018
W/O
696163
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01005
PipeID
P15403
Time
3:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5591
Sewer Name
H JOINT OUTFALL H - UNIT 7C
City
CITY OF INDUSTRY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
35
Purpose
Routine Assessment
Project
WO_696163_TV21098_APR2018
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
H 0989
Downstream MH
21 0215
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole H 0989 to 21 0215
MH: H 0989MH: 21 0215upstream0 ft. MSA - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.0 ft. SAP - Surface Aggregate Projecting, at 12 o'clock, within 8 inches of joint: NO0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES0 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES2 ft. AMH - Downstream Manhole, Survey Begins - H 09892 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MWM - Water Mark, 35 %of cross sectional area

Observation photos (4)

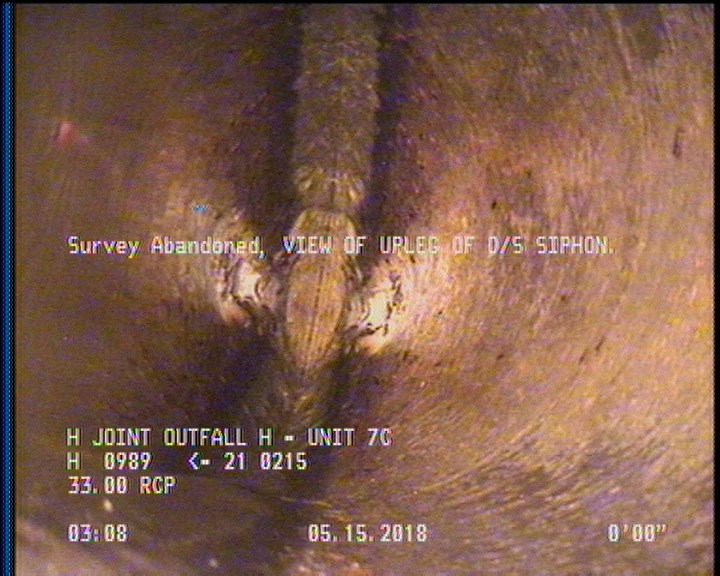

  • Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

    2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

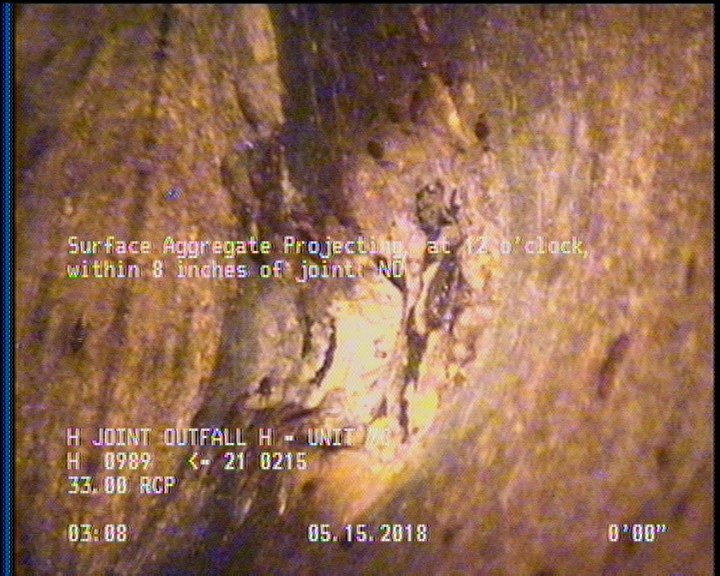

  • Surface Aggregate Projecting, at 12 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Projecting, at 12 o'clock, within 8 inches of joint: NO

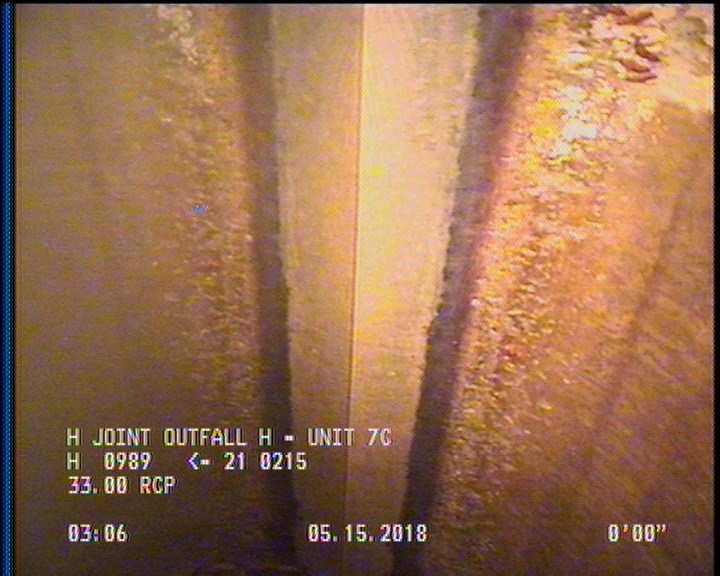

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

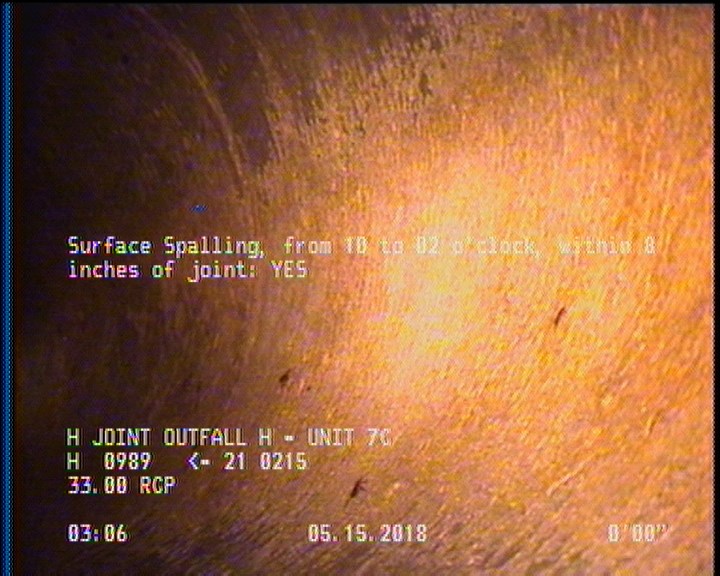

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P15403Work order 696163

Observations (7)

DistanceCodeObservation
0AMHH 0989
0MWL—
2MSAVIEW OF UPLEG OF D/S SIPHON.
2SAP—
2DAGS—
2SSS—
0MWM—

Properties (4)

additional_info
SC359357
custom_field_two
2
customer
LACSD
datetime
2018-05-15T03:01:14-07:00
