Wastewater/Activity/PacpInspection/1.0May 21, 2018, 09:14 AM
21 1073_21 1268 _21052018_023107.mp4
- Date
- 05/21/2018
- W/O
- 695800
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00782
- PipeID
- P23208
- Time
- 2:14 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5602
- Sewer Name
- 21 POMONA W.R.P. INFLUENT SEWER #2
- City
- POMONA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_695800_TV21089_APR2018
- Sewer Type
- Gravity
- Shape
- Circular
- Upstream MH
- 21 1073
- Downstream MH
- 21 1268
- Dir. of Survey
- Downstream
- Length Surveyed
- 303 ft.
- Total Length
- 303 ft.
- Structural Index
- 2
- Structural Quick
- 352K
- Structural Rating
- 133
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 120
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 253
Observation photos (3)

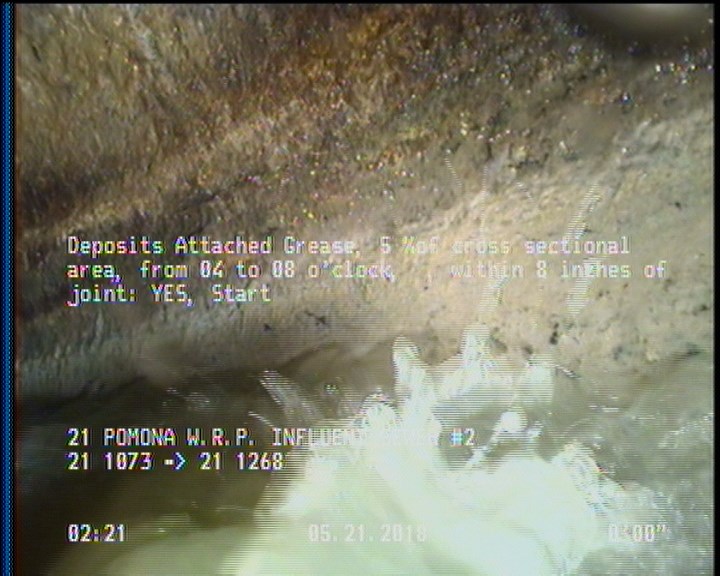

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

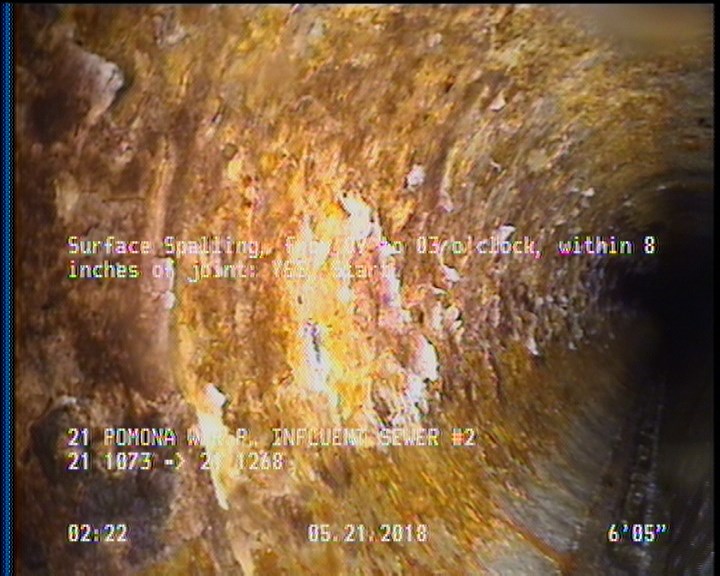

6.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

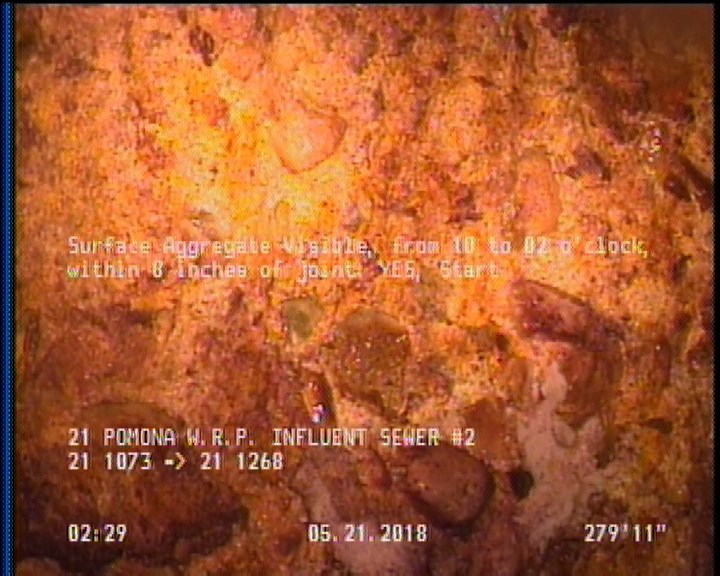

279.9 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 303 | SAV | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | 21 1073 |
| 303 | AMH | 21 1268 |
| 6.4 | SSS | — |
| 303 | SSS | — |
| 279.9 | SAV | — |
| 0 | MWL | — |
| 303 | DAGS | — |
Properties (4)
- additional_info
- SC359368
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-21T02:14:57-07:00
