Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2018, 05:16 AM

  • 15 0420_15 0419 _03052018_224749.mp4

Date
05/03/2018
W/O
695786
Weather
Dry
Operator/Surveyor
S . LOPEZ
Sewer ID
Z00607
PipeID
P12346
Time
10:16 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5585
Sewer Name
15 HILL DRIVE EXTENSION TRUNK
City
ROSEMEAD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
26
Purpose
Routine Assessment
Project
WO_695786_TV15033_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0420
Downstream MH
15 0419
Dir. of Survey
Downstream
Length Surveyed
376.2 ft.
Total Length
376.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2311
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 15 0420 to 15 0419
MH: 15 0420MH: 15 0419downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 04200 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start63.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"155.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"157.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4" - CRACK INSIDE THE LATERAL202 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"204.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"246.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"253.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"299.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"303.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"353.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"367.6 ft. RFL - Roots Fine Lateral, at 10 o'clock - 35% INSIDE THE LATERAL368.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"375.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE376.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish376.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0419

Observation photos (1)

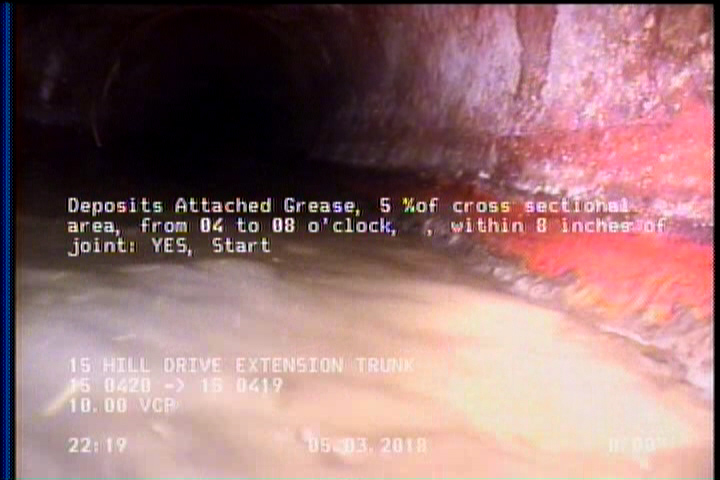

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12346Work order 695786

Observations (19)

DistanceCodeObservation
299.7TFC—
0MWL—
253.5TFA—
376.1DAGS—
202TFC—
0AMH15 0420
246.6TFC—
368.3TFA—
375.7MGOCOCKROACHES IN MANHOLE
155.1TFA—
303.2TFA—
157.2TFDCRACK INSIDE THE LATERAL
353.6TFA—
367.6RFL35% INSIDE THE LATERAL
204.6TFA—
376.2AMH15 0419
63.3TFA—
0MWM—
0DAGS—

Properties (4)

additional_info
SC358549
custom_field_two
3
customer
LACSD
datetime
2018-05-03T22:16:37-07:00
