Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 06:38 AM

  • 01 1200_01 1199A_01052018_235041.mp4

Date
05/01/2018
W/O
695748
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00226
PipeID
P02111
Time
11:38 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5550
Sewer Name
01 WILCOX AVENUE TRUNK, EXTENSION #1
City
CUDAHY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Routine Assessment
Project
WO_695748_TV01206_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1200
Downstream MH
01 1199A
Dir. of Survey
Downstream
Length Surveyed
304.9 ft.
Total Length
304.9 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 01 1200 to 01 1199A
MH: 01 1200MH: 01 1199Adownstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. MWM - Water Mark, 65 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 12004.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start234.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"275.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start304.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish304.4 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH304.4 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH304.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish304.9 ft. AMH - Downstream Manhole, Survey Ends - 01 1199

Observation photos (2)

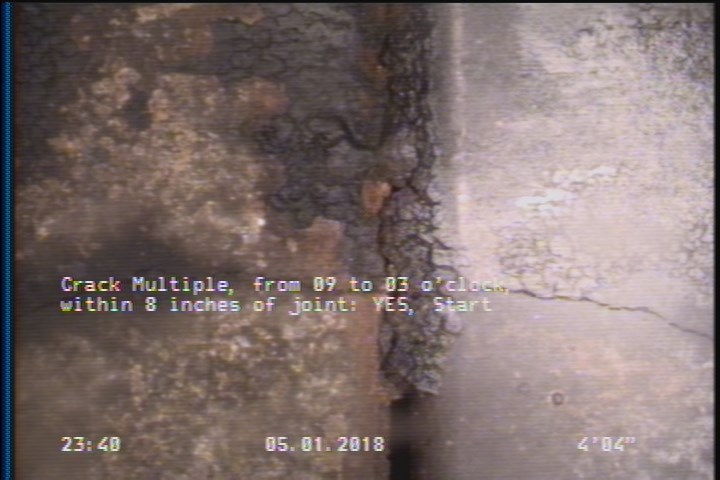

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

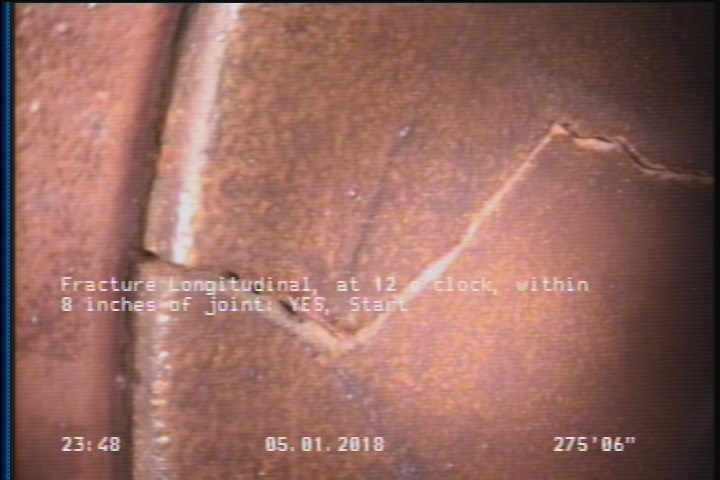

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    275.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P02111Work order 695748

Observations (12)

DistanceCodeObservation
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
4.3CM—
0MWM—
0MWL—
304.4CM—
275.5FL—
304.4MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
304.9AMH01 1199
0AMH01 1200
304.4MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
304.4FL—
234.8TFC—

Properties (4)

additional_info
SC359306
custom_field_two
2
customer
LACSD
datetime
2018-05-01T23:38:12-07:00
