Wastewater/Activity/PacpInspection/1.0May 2, 2018, 09:06 AM
01 1199_01 1198_02052018_021836.mp4
- Date
- 05/02/2018
- W/O
- 695748
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00226
- PipeID
- P02109
- Time
- 2:06 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5550
- Sewer Name
- 01 WILCOX AVENUE TRUNK, EXTENSION #1
- City
- CUDAHY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_695748_TV01206_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1198
- Downstream MH
- 01 1199
- Dir. of Survey
- Upstream
- Length Surveyed
- 305.6 ft.
- Total Length
- 305.6 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

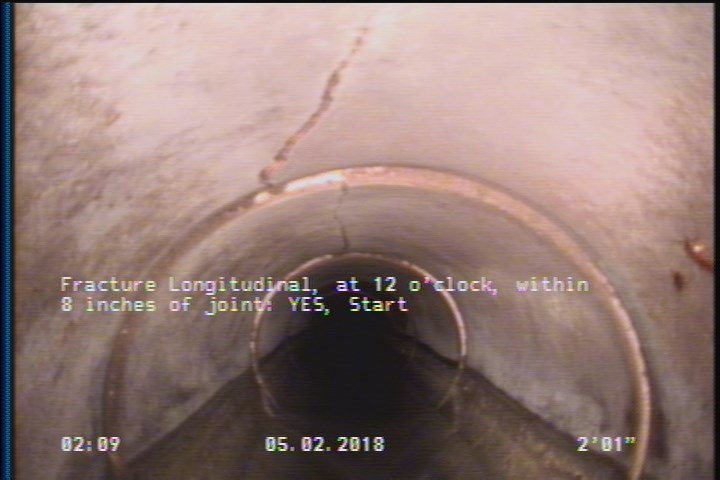

2.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

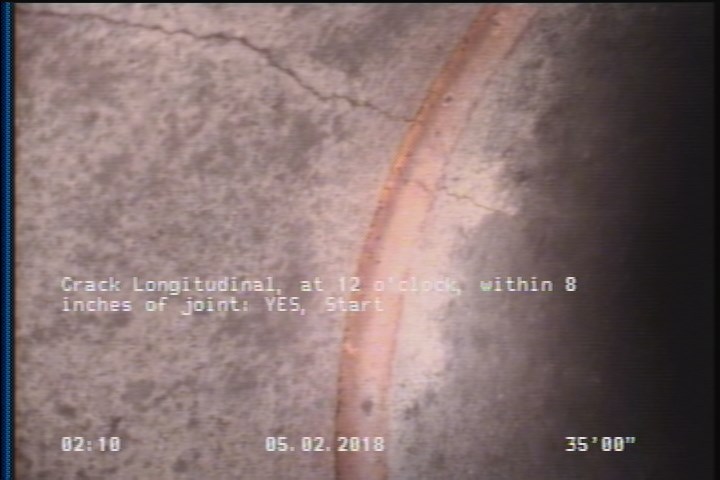

35 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

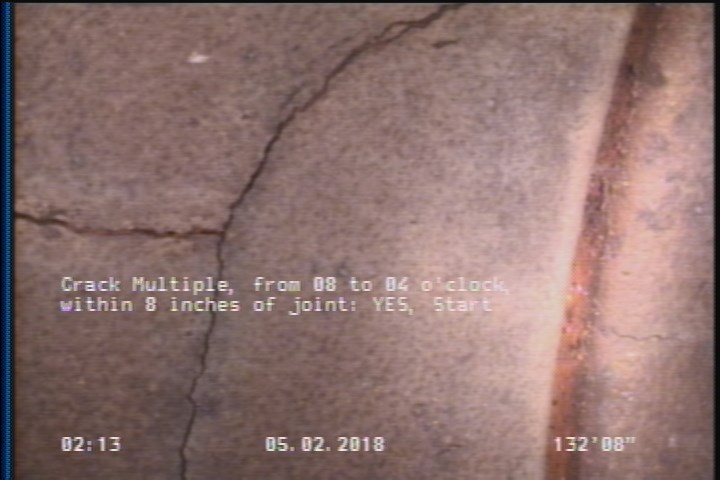

132.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

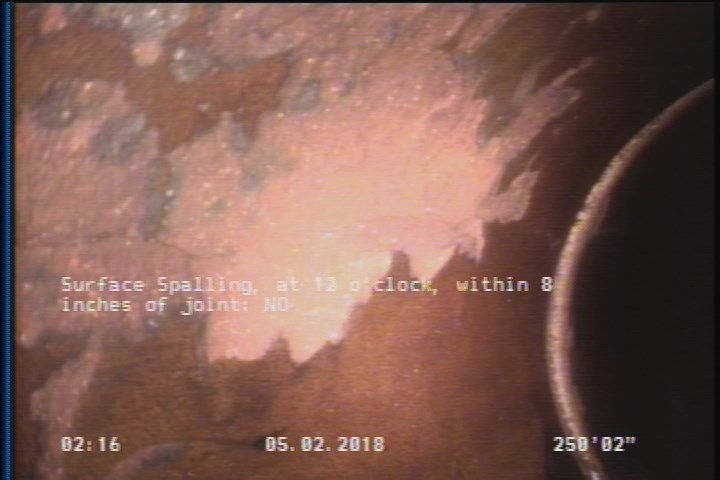

250.2 ft. - Surface Spalling, at 12 o'clock, within 8 inches of joint: NO
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | FL | — |
| 0 | MWL | — |
| 305.6 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 132.7 | CM | — |
| 305.5 | CM | — |
| 0 | MWM | — |
| 305.6 | AMH | 01 1199 |
| 132.6 | CL | — |
| 28.6 | FL | — |
| 0 | AMH | 01 1198 |
| 250.2 | SSS | — |
| 305.6 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 35 | CL | — |
| 0 | MGO | SERVICE CONNECTION AT 2 O' CLOCK AT MH |
Properties (4)
- additional_info
- SC359306
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-02T02:06:24-07:00
