Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 07:45 AM
Date
05/02/2018
W/O
695748
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00226
PipeID
P02116
Time
12:45 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5550
Sewer Name
01 WILCOX AVENUE TRUNK, EXTENSION #1
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_695748_TV01206_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1205
Downstream MH
01 1204
Dir. of Survey
Downstream
Length Surveyed
345.5 ft.
Total Length
345.5 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
10
O&M Index
2
O&M Quick
3212
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 01 1205 to 01 1204
MH: 01 1205MH: 01 1204downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 12050 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start30.6 ft. RMC - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES31.3 ft. RFL - Roots Fine Lateral, at 02 o'clock31.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"61.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"103.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start131.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.4 ft. RML - Roots Medium Lateral, at 02 o'clock, 40 %, within 8 inches of joint: NO149.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish284.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start284.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish292.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"295.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"301.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start301.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish341.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish345.5 ft. MGO - General Observation - SERVICE CONNECTION AT 8 O'CLOCK AT MH345.5 ft. AMH - Downstream Manhole, Survey Ends - 01 1204

Observation photos (4)

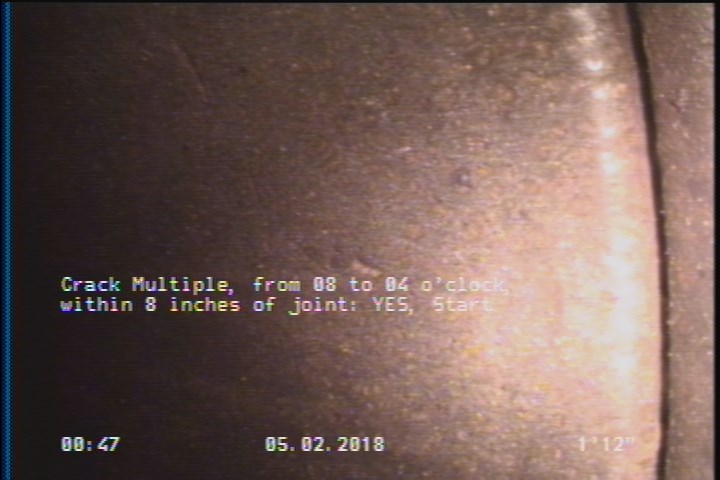

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

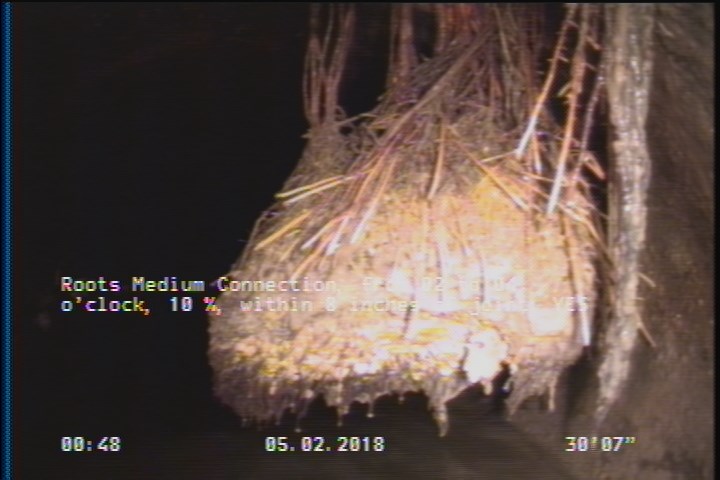

  • Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

    30.6 ft. - Roots Medium Connection, from 02 to 04 o'clock, 10 %, within 8 inches of joint: YES

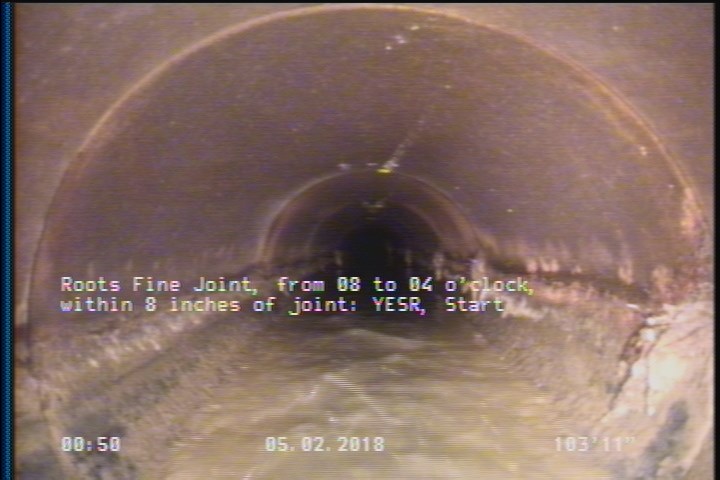

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    103.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

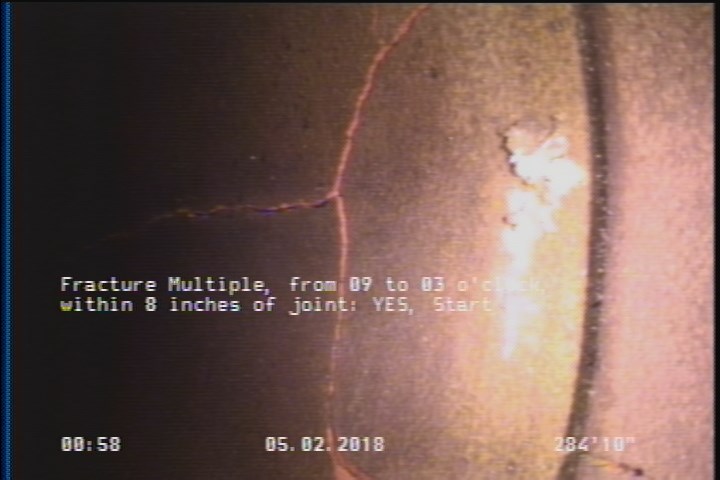

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    284.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P02116Work order 695748

Observations (22)

DistanceCodeObservation
284.8FM—
158.7RFJ—
149.1TB—
0AMH01 1205
131.4TF—
61.6TFC—
284.8CM—
295.5TFC—
292.8TFC—
345.5MGOSERVICE CONNECTION AT 8 O'CLOCK AT MH
31.3RFL—
0MWM—
31.3TB—
301.7CM—
103.9RFJ—
0MWL—
131.4RML—
2CM—
341.8CM—
30.6RMC—
301.7FM—
345.5AMH01 1204

Properties (4)

additional_info
SC359306
custom_field_two
3
customer
LACSD
datetime
2018-05-02T00:45:53-07:00
