Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 07:31 AM

  • 01 1206_01 1205_02052018_004544.mp4

Date
05/02/2018
W/O
695748
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00226
PipeID
P02117
Time
12:31 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5550
Sewer Name
01 WILCOX AVENUE TRUNK, EXTENSION #1
City
CUDAHY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_695748_TV01206_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1206
Downstream MH
01 1205
Dir. of Survey
Downstream
Length Surveyed
337.7 ft.
Total Length
337.7 ft.
Structural Index
3
Structural Quick
3422
Structural Rating
16
O&M Index
1
O&M Quick
1300
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 01 1206 to 01 1205
MH: 01 1206MH: 01 1205downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 12060 ft. MWL - Water Level, 15 %of cross sectional area10.9 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES13.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start67.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"85 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish109.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES137.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES161.9 ft. CM - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES167.6 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start215.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"250.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.9 ft. RFJ - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YESR308.4 ft. RFL - Roots Fine Lateral, at 02 o'clock308.4 ft. RFC - Roots Fine Connection, from 02 to 04 o'clock, within 8 inches of joint: NO308.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"333.7 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish337.7 ft. AMH - Downstream Manhole, Survey Ends - 01 1205

Observation photos (6)

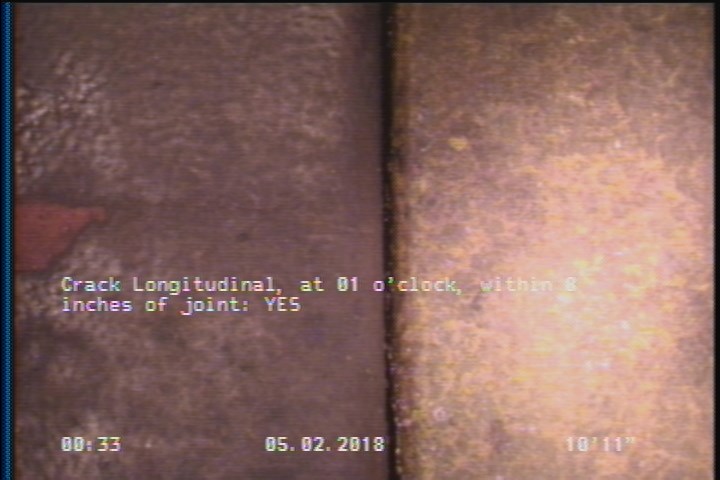

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    10.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

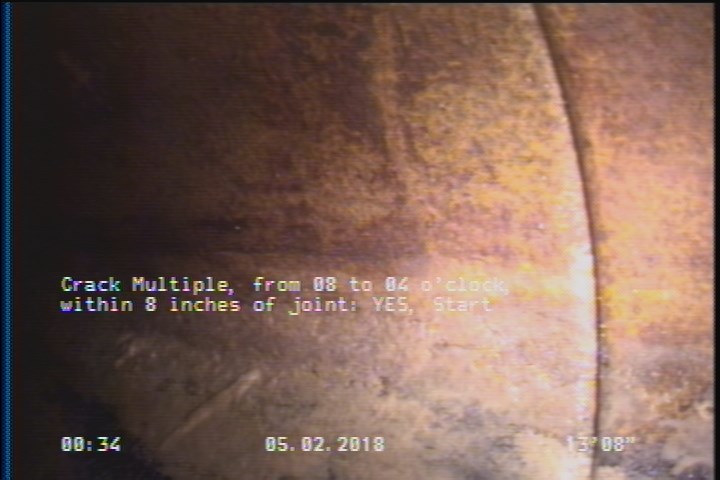

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

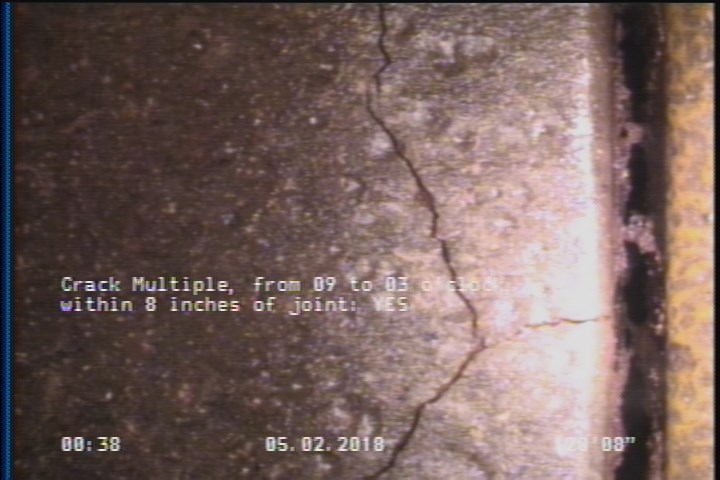

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    128.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

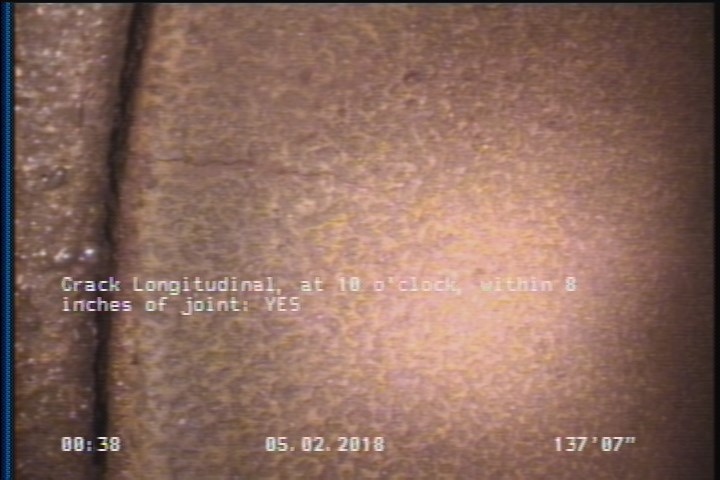

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    137.6 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

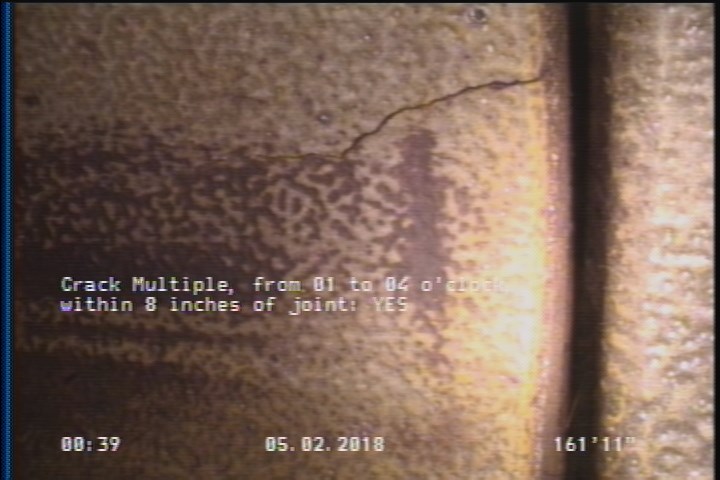

  • Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

    161.9 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

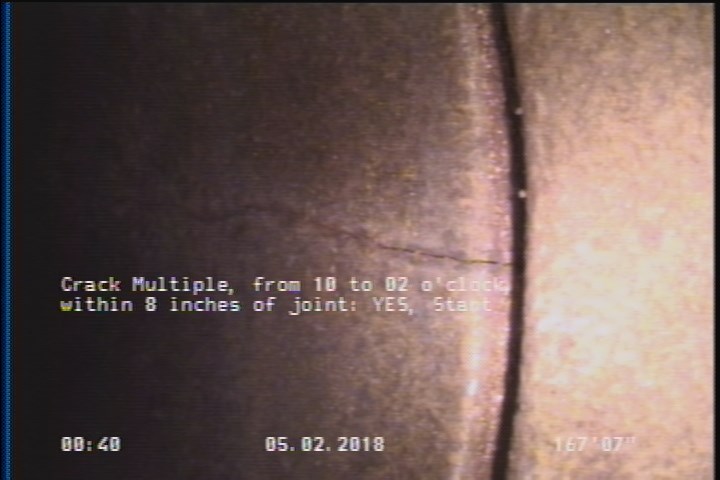

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    167.6 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P02117Work order 695748

Observations (21)

DistanceCodeObservation
128.6CM—
91.5CM—
250.7TFC—
167.6CM—
215.1TFC—
333.7CM—
308.4RFL—
109.1TB—
266.9RFJ—
67.4TF—
308.4RFC—
85TF—
137.6CL—
0MWM—
10.9CL—
337.7AMH01 1205
308.4TF—
13.7CM—
0AMH01 1206
0MWL—
161.9CM—

Properties (4)

additional_info
SC359306
custom_field_two
3
customer
LACSD
datetime
2018-05-02T00:31:55-07:00
