Wastewater/Activity/PacpInspection/1.0Apr 26, 2018, 07:23 AM
15 0878_15 0877 _26042018_004445.mp4
- Date
- 04/26/2018
- W/O
- 695662
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00599
- PipeID
- P12671
- Time
- 12:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5577
- Sewer Name
- 15 CALIFORNIA AVENUE TRUNK
- City
- MONROVIA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_695662_TV15182_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0877
- Downstream MH
- 15 0878
- Dir. of Survey
- Upstream
- Length Surveyed
- 448.1 ft.
- Total Length
- 448.1 ft.
- Structural Index
- 3
- Structural Quick
- 3Q00
- Structural Rating
- 270
- O&M Index
- 2
- O&M Quick
- 3111
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 274
Observation photos (3)

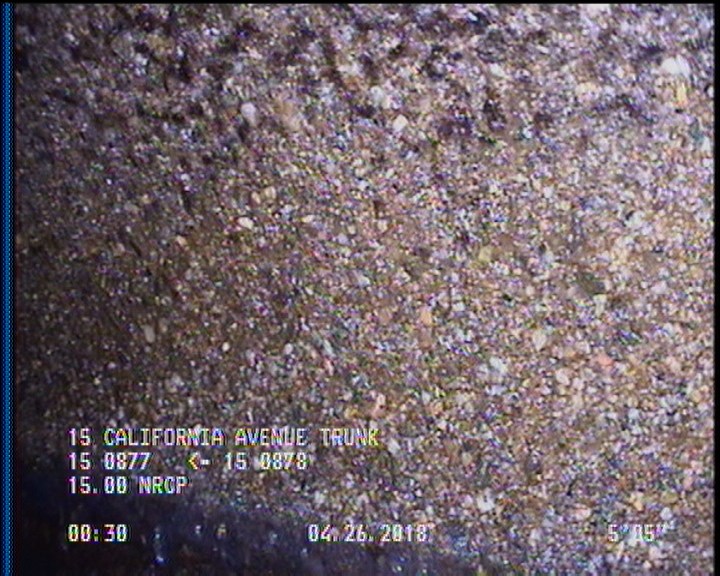

0.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

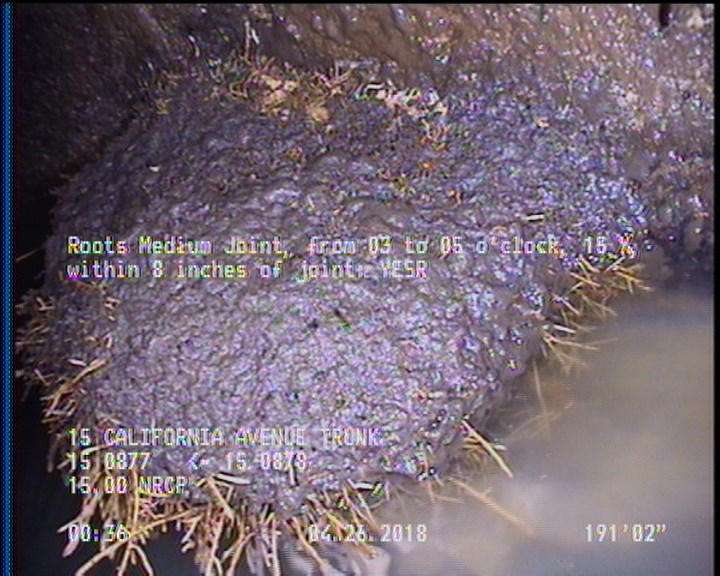

191.2 ft. - Roots Medium Joint, from 03 to 05 o'clock, 15 %, within 8 inches of joint: YESR

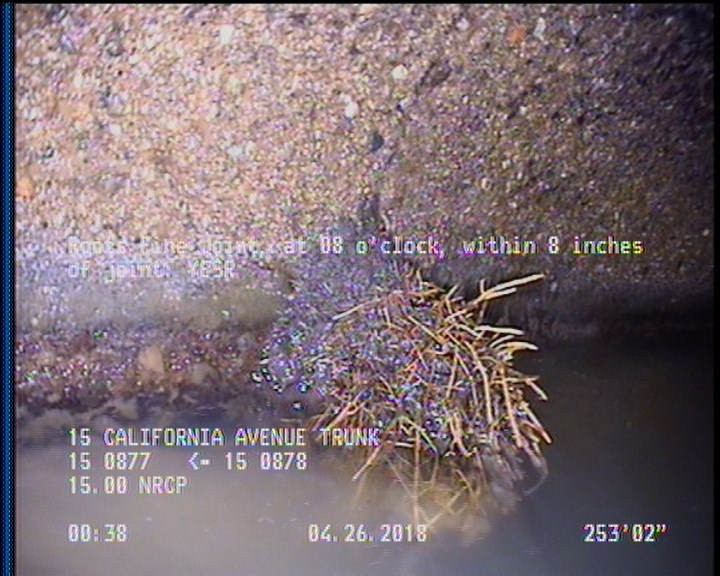

253.2 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 191.2 | RMJ | — |
| 87.8 | TFC | — |
| 0.4 | SAP | — |
| 448.1 | SAP | — |
| 448.1 | AMH | 15 0878 |
| 0 | MWM | — |
| 448.1 | MGO | ACTIVE CONNECTION AT MH 2 O'CLOCK |
| 0 | AMH | 15 0877 |
| 0 | MWL | — |
| 253.2 | RFJ | — |
| 12.3 | TBA | — |
Properties (4)
- additional_info
- SC358537
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-26T00:23:08-07:00
