Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2018, 07:55 AM

  • 16 0095_16 0094_5252018_011455.mp4

Date
05/25/2018
W/O
0706748
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00641
PipeID
P13132
Time
12:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0870
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
20180525MDM_ALLEN_AVENUE_TRUNK_SECTION_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
16 0095
Downstream MH
16 0094
Dir. of Survey
Downstream
Length Surveyed
127.4 ft.
Total Length
127.4 ft.
Structural Index
4
Structural Quick
4131
Structural Rating
7
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 16 0095 to 16 0094
MH: 16 0095MH: 16 0094downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:55AM9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE9.5 ft. MGO - General Observation - 15" VCP102.7 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES106.9 ft. MWLS - Water Level, Sag in pipe, 90 %of cross sectional area114.6 ft. MCU - Camera Underwater120.2 ft. MGO - General Observation CAMERA ABOVE WATER - CAMERA ABOVE WATER127.4 ft. AMH - Downstream Manhole, Survey Ends - 1:20AM127.4 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. Active127.4 ft. MGO - General Observation - Conn. @ Mh, 1 O' Clock. Active

Observation photos (3)

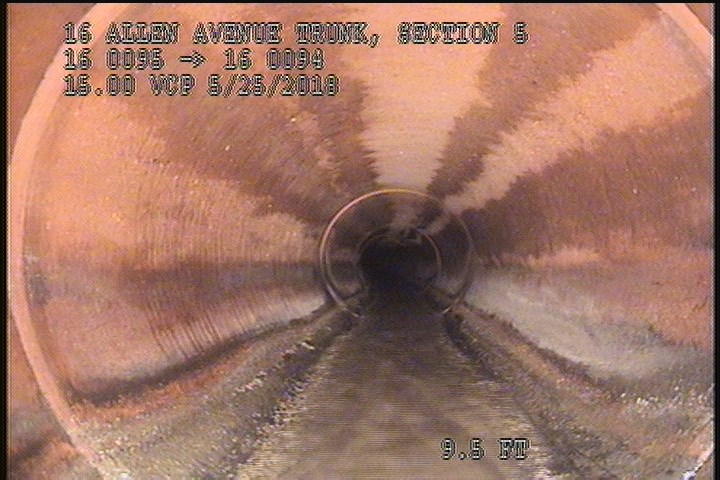

  • General Observation - 15" VCP

    9.5 ft. - General Observation - 15" VCP

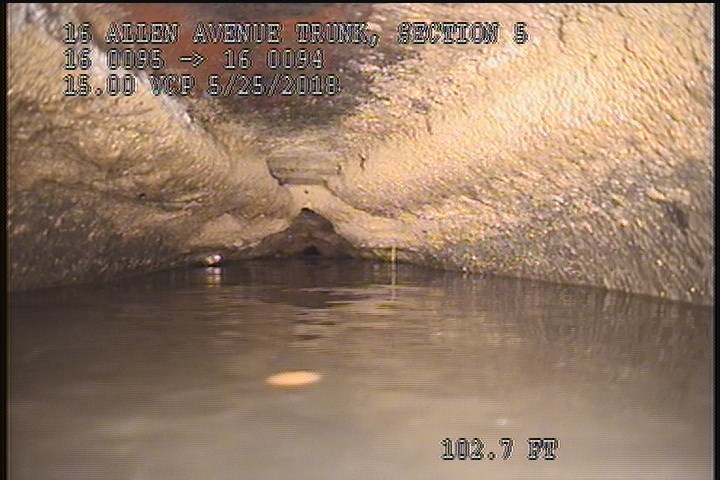

  • Deposits Attached Grease, 20 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

    102.7 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

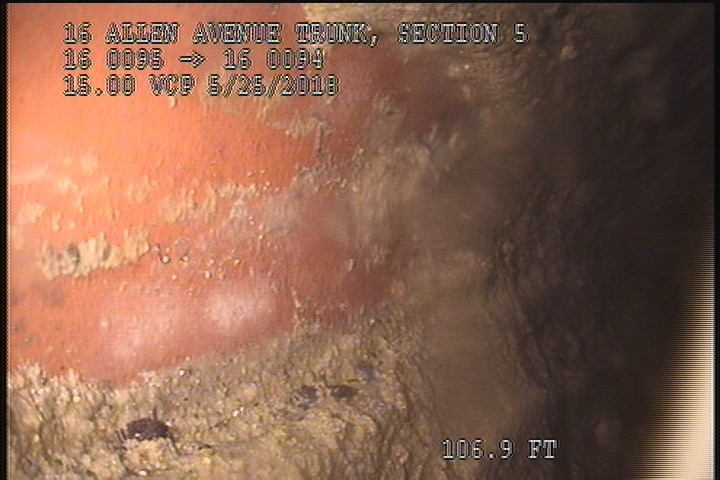

  • Water Level, Sag in pipe, 90 %of cross sectional area

    106.9 ft. - Water Level, Sag in pipe, 90 %of cross sectional area

All inspections of P13132Work order 0706748

Observations (12)

DistanceCodeObservation
9.5MGO15" VCP
0MWM—
127.4AMH1:20AM
114.6MCU—
102.7DAGS—
120.2MGOCAMERA ABOVE WATER
0MWL—
127.4MGOConn. @ Mh, 6 O' Clock. Active
106.9MWLS—
127.4MGOConn. @ Mh, 1 O' Clock. Active
0AMH12:55AM
9FLHAIRLINE

Properties (4)

custom_field_three
1 HAIRLINE - 90% SAG
custom_field_two
4
customer
LACSD
datetime
2018-05-25T00:55:00-07:00
