Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 24, 2018, 03:34 PM

  • Section#1_29 0513_29 0512__5242018__I0014.mp4

Date
05/24/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z01019
PipeID
P24562
Time
8:34 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0014
Sewer Name
29 19TH STREET TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Maintenance Related
Project
20180524SHO_19TH_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.650000095367432 in.
Upstream MH
29 0513
Downstream MH
29 0512
Dir. of Survey
Downstream
Length Surveyed
282.8 ft.
Total Length
282.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 29 0513 to 29 0512
MH: 29 0513MH: 29 0512downstream0 ft. AMH - Upstream Manhole, Survey Begins - 09200 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area56.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - HAS BLUE GROUT IN IT148.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - SMALL AMOUNT OF BLUE GROUT IN THE CONNECTION211.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION225.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION282.8 ft. AMH - Downstream Manhole, Survey Ends - 0950

Observation photos (4)

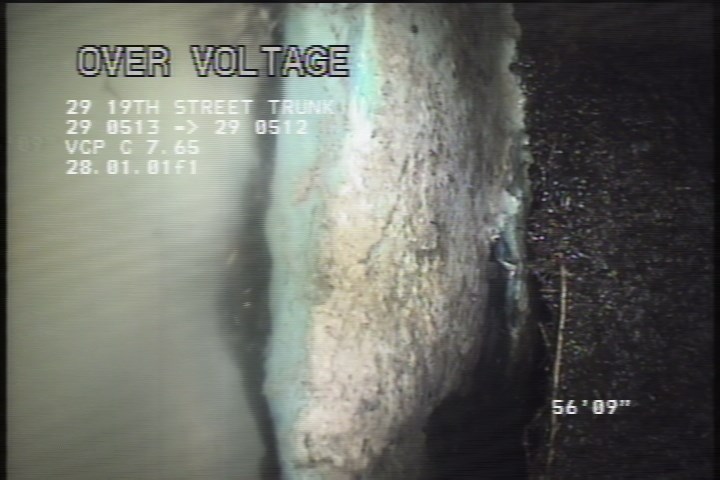

  • Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - HAS BLUE GROUT IN IT

    56.8 ft. - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - HAS BLUE GROUT IN IT

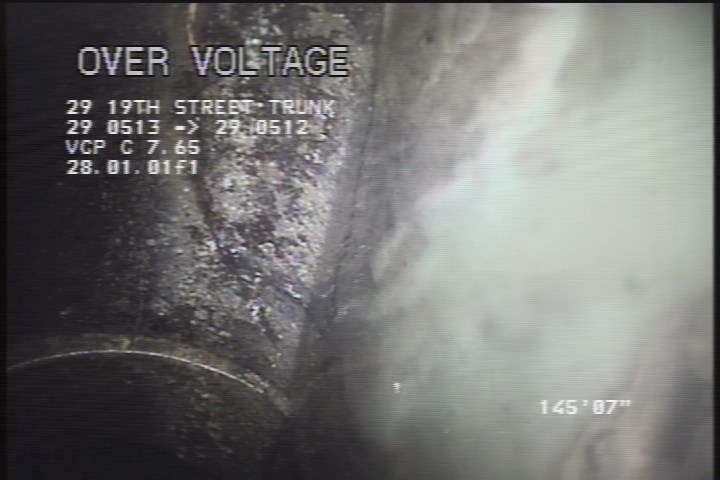

  • Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - SMALL AMOUNT OF BLUE GROUT IN THE CONNECTION

    148.2 ft. - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - SMALL AMOUNT OF BLUE GROUT IN THE CONNECTION

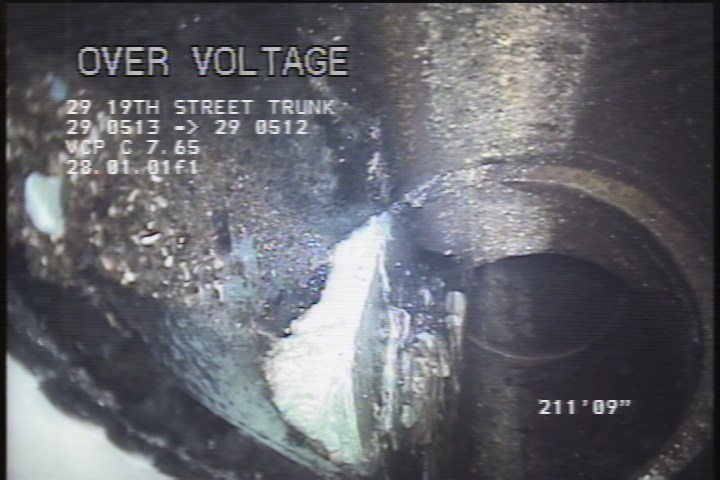

  • Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION

    211.7 ft. - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION

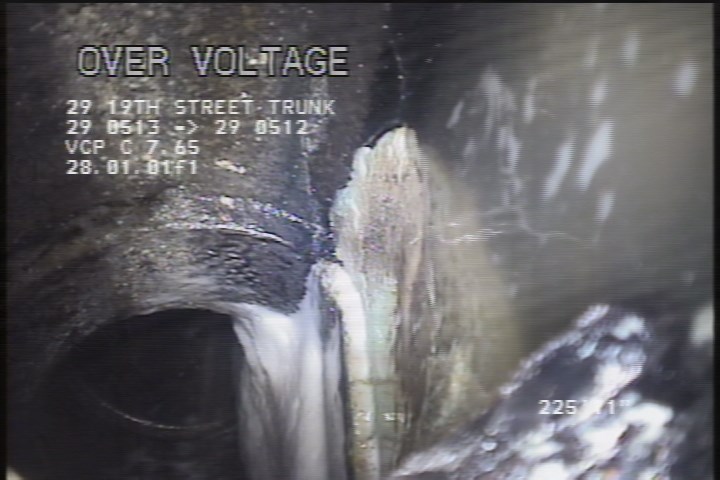

  • Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION

    225.9 ft. - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - BLUE GROUT IN THE CONNECTION

All inspections of P24562Work order PENDING

Observations (8)

DistanceCodeObservation
0AMH0920
0MWM—
211.7TFBLUE GROUT IN THE CONNECTION
0MWL—
225.9TFBLUE GROUT IN THE CONNECTION
148.2TFSMALL AMOUNT OF BLUE GROUT IN THE CONNECTION
56.8TFHAS BLUE GROUT IN IT
282.8AMH0950

Properties (6)

additional_info
LOOKING FOR BLUE GROUT IN THE LINE
custom_field_three
ONLY LOOKING FOR BLUE GROUT
custom_field_two
5
customer
LACSD
datetime
2018-05-24T08:34:36-07:00
lining
CIPP
