Wastewater/Activity/PacpInspection/1.0Jul 20, 2017, 09:50 AM
02 1231_02 1230_20072017_025112.mp4
- Date
- 07/20/2017
- W/O
- 646745
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00303
- PipeID
- P03735
- Time
- 2:50 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4655
- Sewer Name
- 02 SANTA ANITA OUTFALL TRUNK
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_646745_TV02120_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 1231
- Downstream MH
- 02 1230
- Dir. of Survey
- Downstream
- Length Surveyed
- 395 ft.
- Total Length
- 395 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

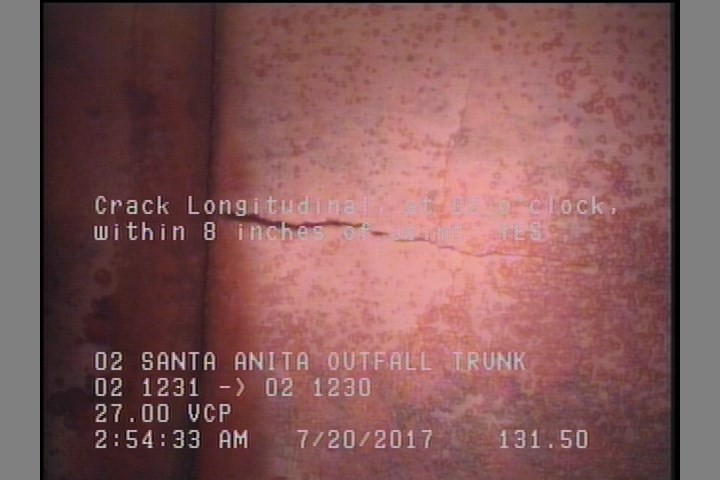

131.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

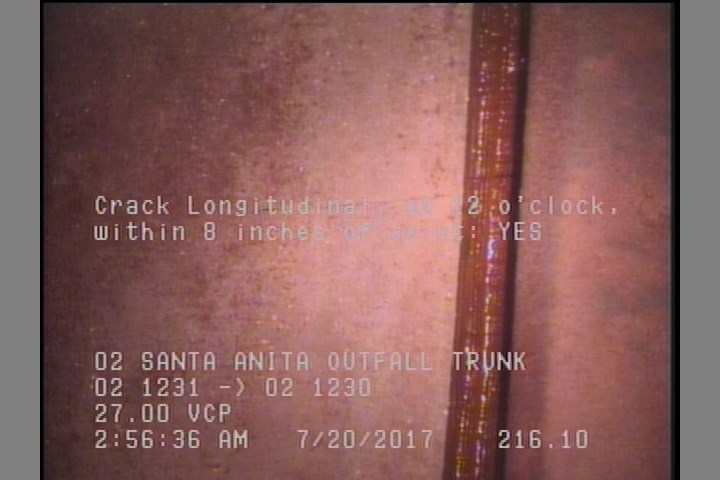

216.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 216.1 | CL | — |
| 0 | AMH | 02 1231 |
| 395 | AMH | 02 1230 |
| 395 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 131.5 | CL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC345515
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-20T02:50:36-07:00
