Wastewater/Activity/PacpInspection/1.0Apr 27, 2018, 10:00 AM
15 0411_15 0410 _27042018_030504.mp4
- Date
- 04/27/2018
- W/O
- 695786
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00607
- PipeID
- P12334
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5578
- Sewer Name
- 15 HILL DRIVE EXTENSION TRUNK
- City
- ROSEMEAD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_695786_TV15033_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 15 0411
- Downstream MH
- 15 0410
- Dir. of Survey
- Downstream
- Length Surveyed
- 18.9 ft.
- Total Length
- 18.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3123
- O&M Rating
- 9
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

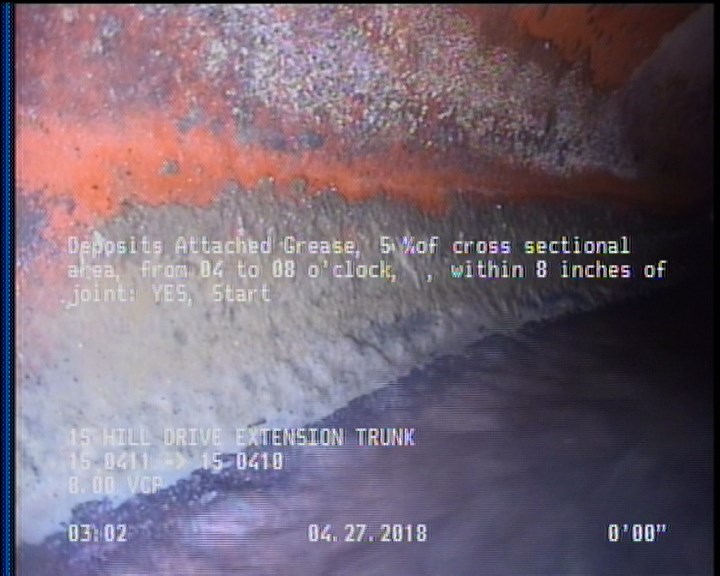

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

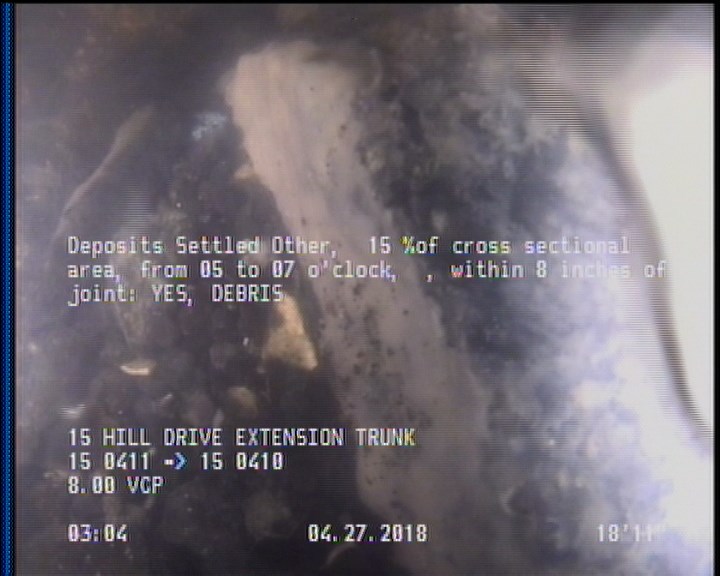

18.9 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - DEBRIS

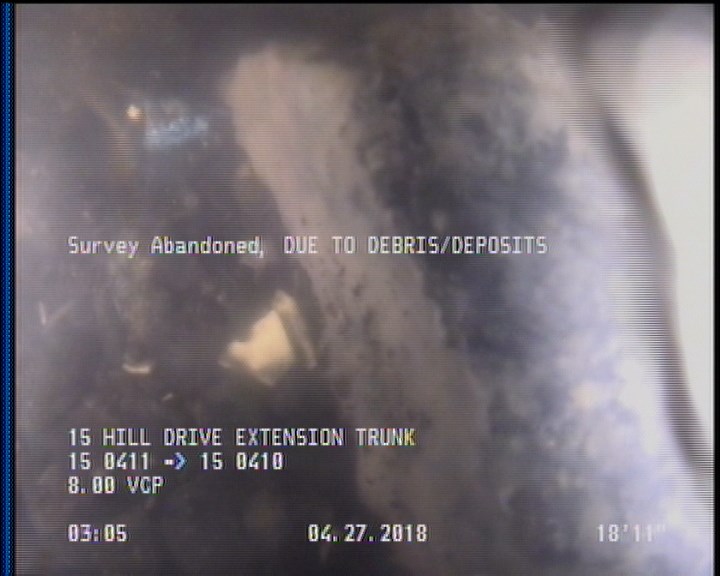

18.9 ft. - Survey Abandoned - DUE TO DEBRIS/DEPOSITS
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 18.9 | DSZ | DEBRIS |
| 0 | AMH | 15 0411 |
| 18.9 | MSA | DUE TO DEBRIS/DEPOSITS |
| 18.9 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC358538
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-04-27T03:00:05-07:00
