Wastewater/Activity/PacpInspection/1.0Apr 27, 2018, 09:39 AM
15 0412_15 0929 _27042018_024928.mp4
- Date
- 04/27/2018
- W/O
- 695786
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00607
- PipeID
- P12336
- Time
- 2:39 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5578
- Sewer Name
- 15 HILL DRIVE EXTENSION TRUNK
- City
- ROSEMEAD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_695786_TV15033_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 15 0412
- Downstream MH
- 15 0929
- Dir. of Survey
- Downstream
- Length Surveyed
- 167.6 ft.
- Total Length
- 167.6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 66
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 68
Observation photos (2)

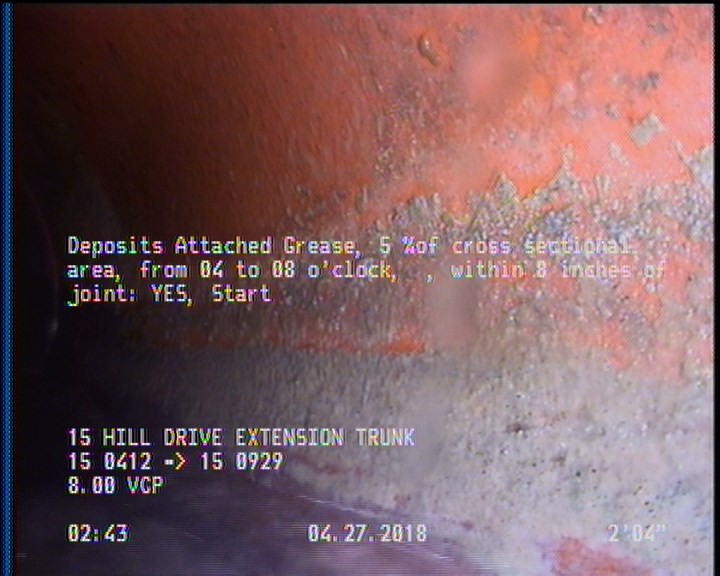

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

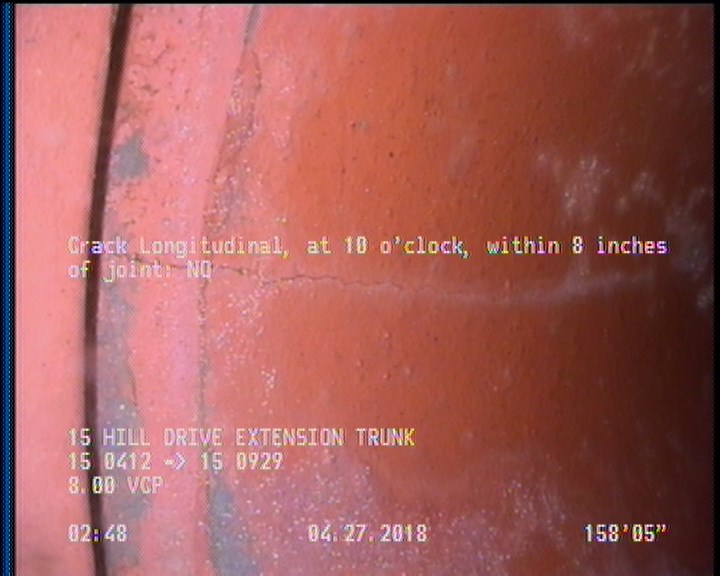

158.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 166.5 | DAGS | — |
| 167.6 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 167.6 | AMH | 15 0929 |
| 80.8 | TF | — |
| 0 | MWL | — |
| 167.6 | MGO | ACTIVE CONNECTION AT MH 4 AND 10 O'CLOCK |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 158.4 | CL | — |
| 0 | AMH | 15 0412 |
| 2.3 | DAGS | — |
Properties (4)
- additional_info
- SC358538
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-27T02:39:18-07:00
