Wastewater/Activity/PacpInspection/1.0May 22, 2018, 03:04 PM
19 0110_19 0109_5222018_084256.mp4
- Date
- 05/22/2018
- W/O
- 0700687
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00722
- PipeID
- P15299
- Time
- 8:04 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7717
- Sewer Name
- 19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- 20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 19 0110
- Downstream MH
- 19 0109
- Dir. of Survey
- Downstream
- Length Surveyed
- 150.9 ft.
- Total Length
- 150.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (5)

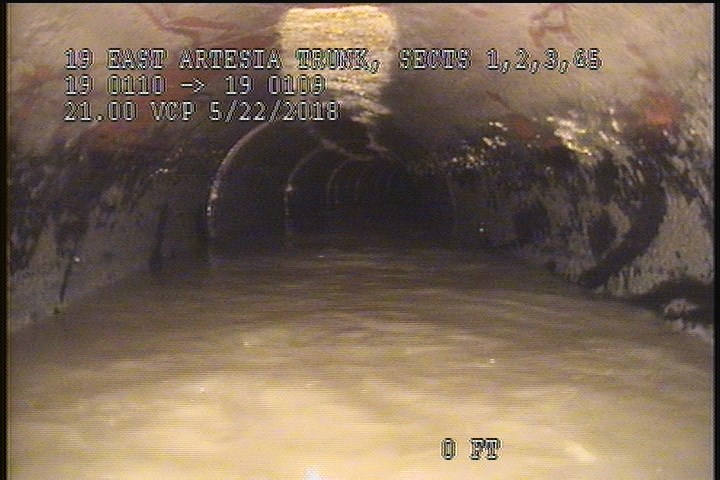

0 ft. - Upstream Manhole, Survey Begins - 8:32 AM

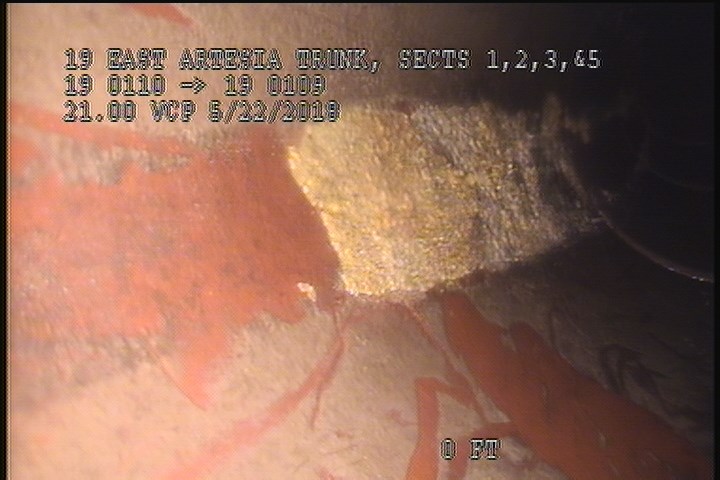

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

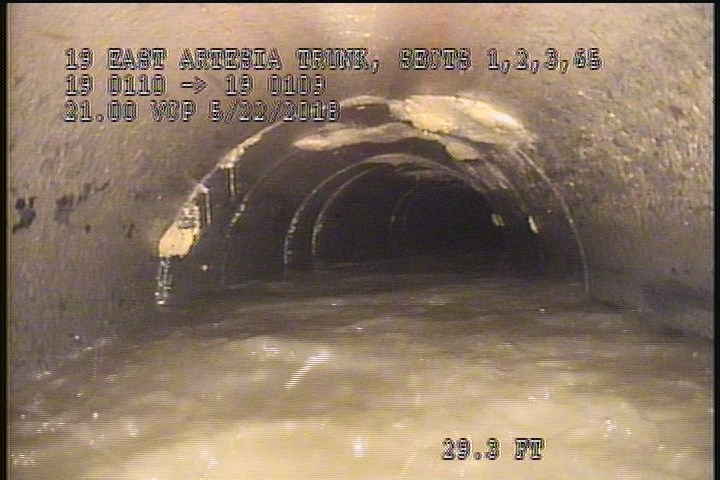

32.4 ft. - General Photograph

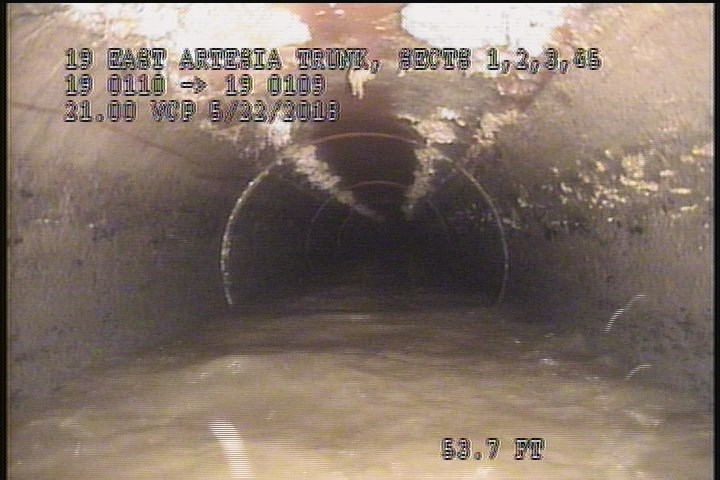

53.7 ft. - General Photograph

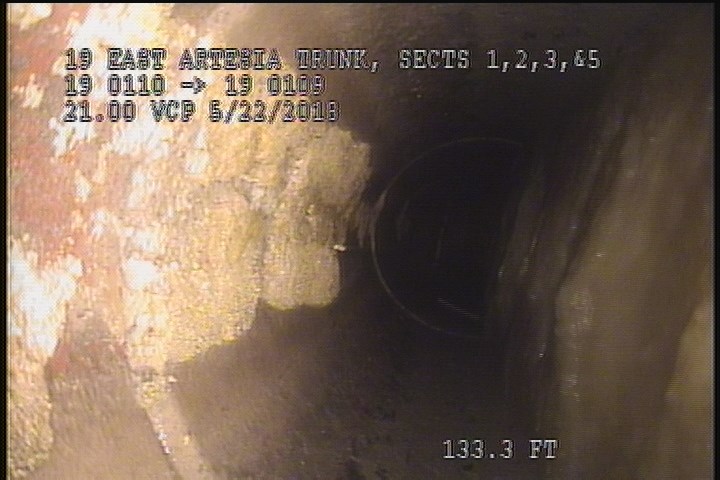

132.8 ft. - General Photograph
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 148.3 | MGO | Grease Throughout The Reach (5%) |
| 32.4 | MGP | — |
| 132.8 | MGP | — |
| 150.9 | AMH | 9:01 AM |
| 148.3 | DAGS | — |
| 0 | MWL | — |
| 148.3 | SSS | — |
| 150.9 | MGO | ROACHES @ MH |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 8:32 AM |
| 53.7 | MGP | — |
| 2 | SSS | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-22T08:04:27-07:00
