Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 21, 2018, 03:19 PM

  • 19 0110_19 0109_5212018_084435.mp4

Date
05/21/2018
W/O
0700687
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15299
Time
8:19 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7716
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Routine Assessment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0110
Downstream MH
19 0109
Dir. of Survey
Downstream
Length Surveyed
150.8 ft.
Total Length
150.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 19 0110 to 19 0109
MH: 19 0110MH: 19 0109downstream0 ft. MWL - Water Level, 65 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:36 AM0 ft. MWM - Water Mark, 70 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - ROACHES @ MH2.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Start4.5 ft. MGP - General Photograph - LOCAL LINE 100% GREASE80.8 ft. MGP - General Photograph148.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish148.4 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)148.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES, Finish150.8 ft. MGO - General Observation - ROACHES @ MH150.8 ft. AMH - Downstream Manhole, Survey Ends - 10:22 AM

Observation photos (3)

  • General Observation - ROACHES @ MH

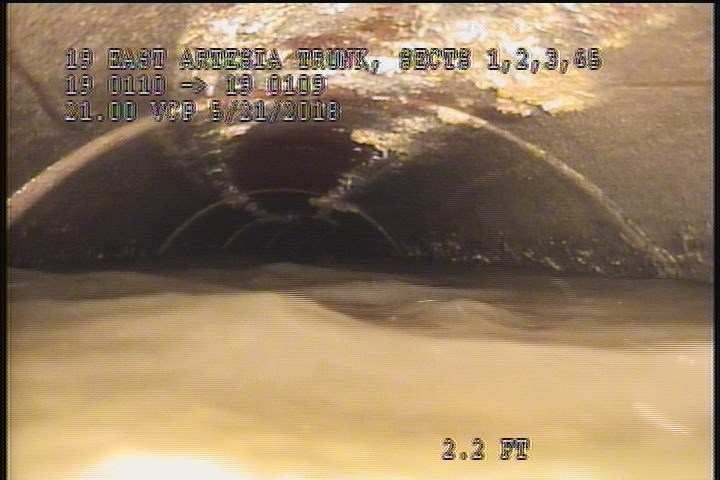

    2 ft. - General Observation - ROACHES @ MH

  • General Photograph - LOCAL LINE 100% GREASE

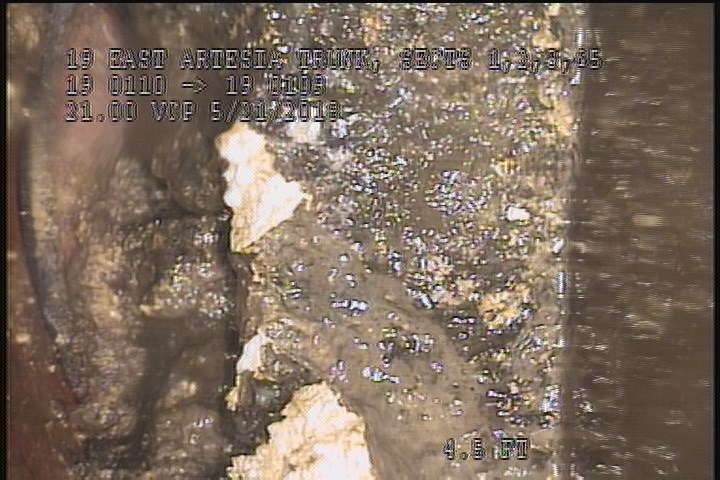

    4.5 ft. - General Photograph - LOCAL LINE 100% GREASE

  • General Photograph

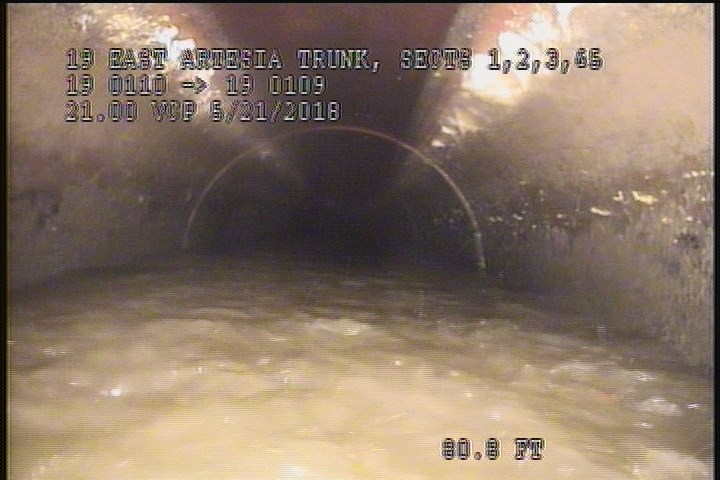

    80.8 ft. - General Photograph

All inspections of P15299Work order 0700687

Observations (13)

DistanceCodeObservation
2SSS—
148.4SSS—
2.2DAGS—
0MWL—
0AMH8:36 AM
150.8MGOROACHES @ MH
148.4MGOGREASE THROUGHOUT THE REACH (5%)
2MGOROACHES @ MH
4.5MGPLOCAL LINE 100% GREASE
150.8AMH10:22 AM
148.4DAGS—
80.8MGP—
0MWM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-21T08:19:00-07:00
