Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2018, 01:04 PM

  • 19 0123_19 0124_5182018_060606.mp4

Date
05/18/2018
W/O
0700687
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15313
Time
6:04 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7714
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Routine Assessment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
19 0124
Downstream MH
19 0123
Dir. of Survey
Upstream
Length Surveyed
401.1 ft.
Total Length
401.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 19 0124 to 19 0123
MH: 19 0124MH: 19 0123upstream0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0 ft. AMH - Upstream Manhole, Survey Ends - 6:22 AM1.6 ft. MGP - General Photograph1.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish97.6 ft. MGP - General Photograph194.4 ft. MGP - General Photograph269 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open363.1 ft. MGP - General Photograph399.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start401.1 ft. MWL - Water Level, 15 %of cross sectional area401.1 ft. MWM - Water Mark, 20 %of cross sectional area401.1 ft. AMH - Downstream Manhole, Survey Begins - 6:05 AM

Observation photos (5)

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

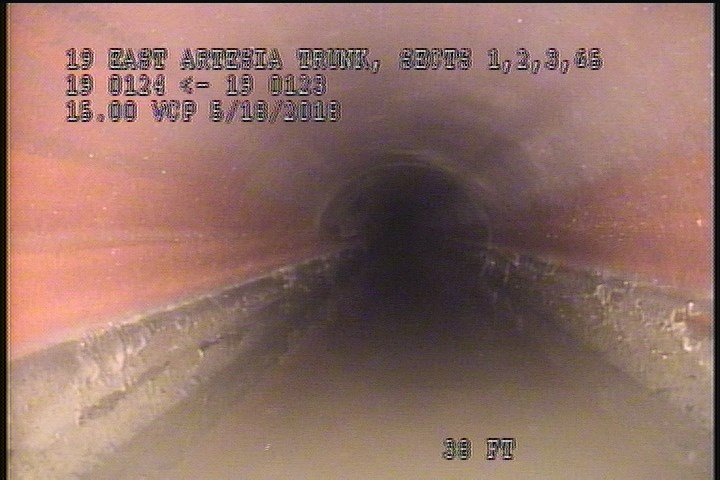

    38 ft. - General Photograph

  • General Photograph

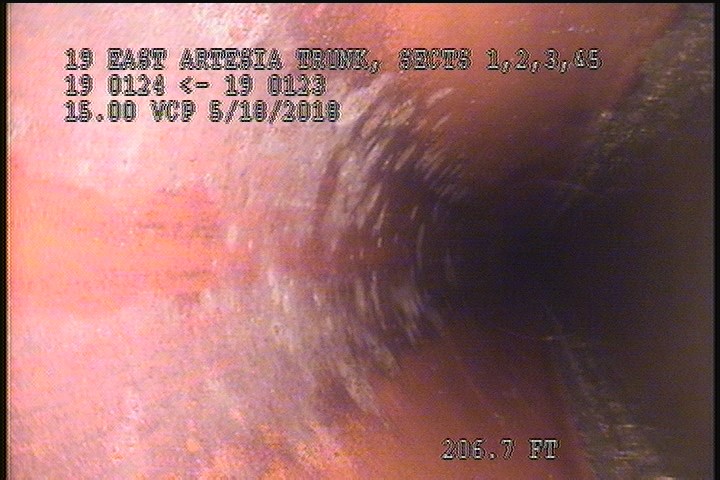

    206.7 ft. - General Photograph

  • General Photograph

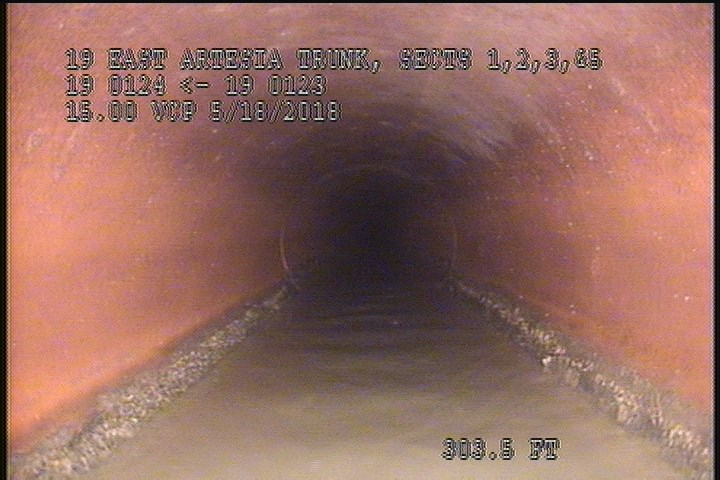

    303.5 ft. - General Photograph

  • General Photograph

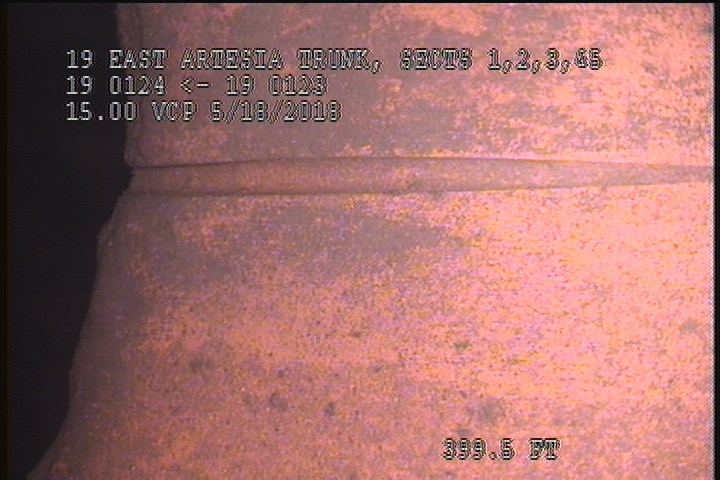

    399.5 ft. - General Photograph

All inspections of P15313Work order 0700687

Observations (12)

DistanceCodeObservation
0MWL—
303.5MGP—
401.1MGOGREASE THROUGHOUT THE REACH (5%)
2SSS—
0MWM—
206.7MGP—
399.5MGP—
132.1TBOpen
399.5SSS—
0AMH6:05 AM
401.1AMH6:22 AM
38MGP—

Properties (4)

additional_info
CORRECT TAPE NUMBER IS (G7714)
custom_field_two
3
customer
LACSD
datetime
2018-05-18T06:04:16-07:00
