Wastewater/Activity/PacpInspection/1.0May 18, 2018, 11:42 AM
19 0123_19 0122_5182018_055034.mp4
- Date
- 05/18/2018
- W/O
- 0700687
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00722
- PipeID
- P15312
- Time
- 4:42 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7714
- Sewer Name
- 19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0122
- Downstream MH
- 19 0123
- Dir. of Survey
- Upstream
- Length Surveyed
- 401 ft.
- Total Length
- 401 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (7)

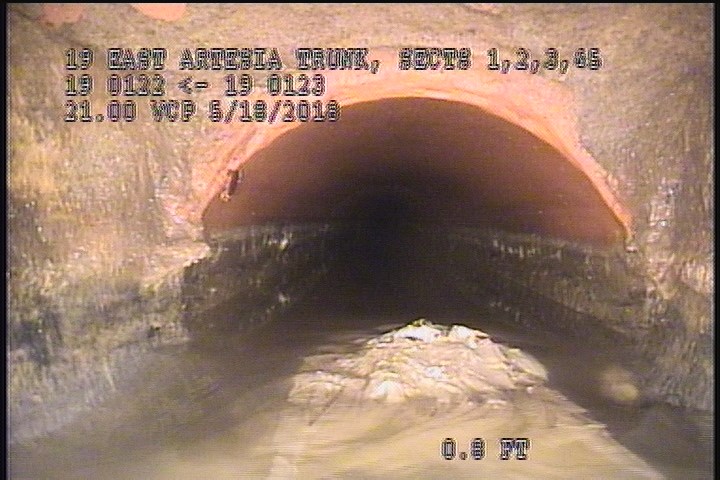

0 ft. - Water Level, 15 %of cross sectional area

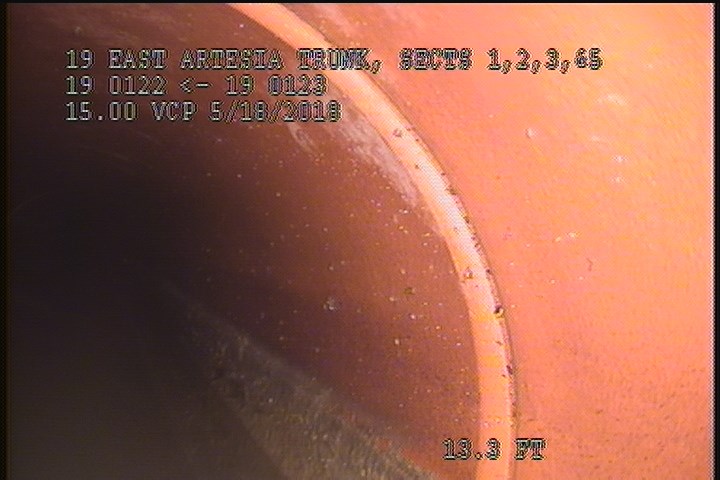

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

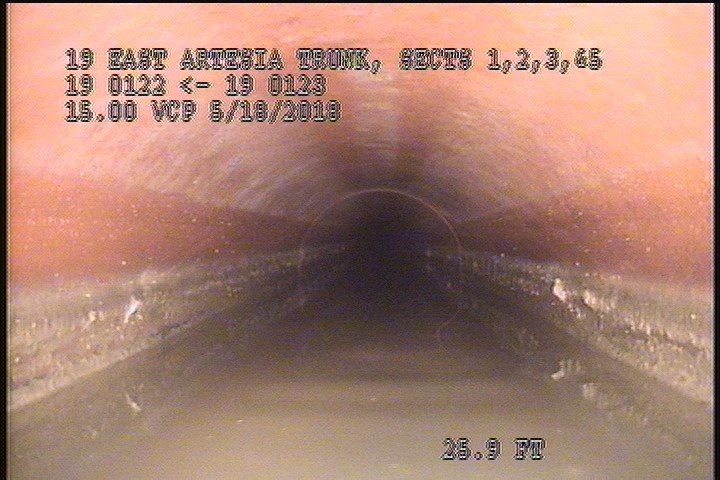

25.9 ft. - General Photograph

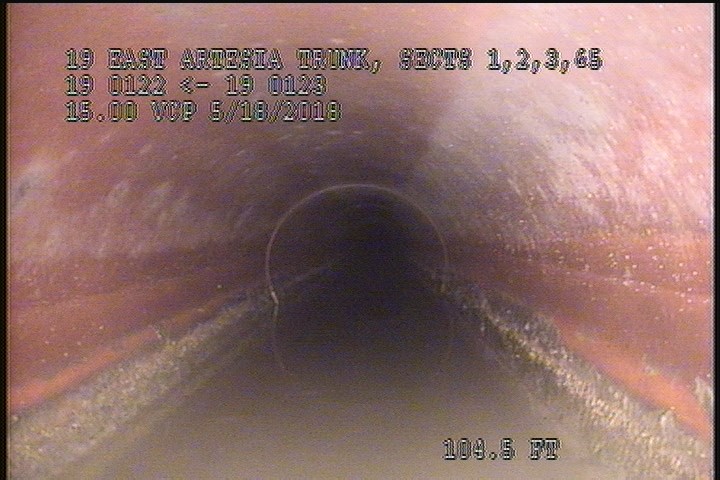

104.5 ft. - General Photograph

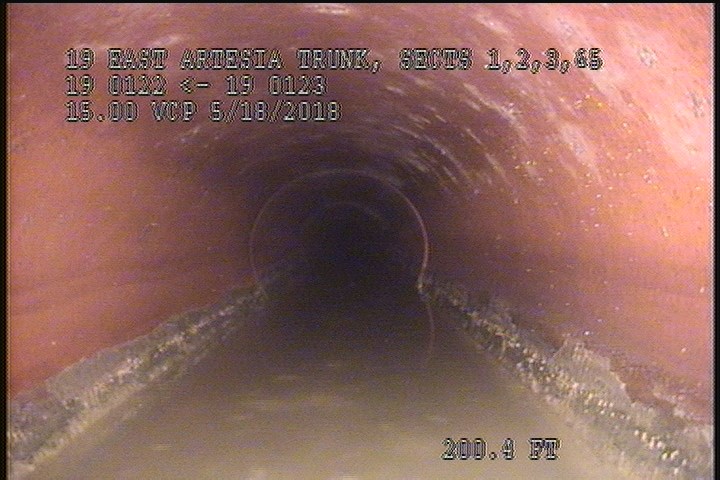

200.4 ft. - General Photograph
278.9 ft. - General Photograph

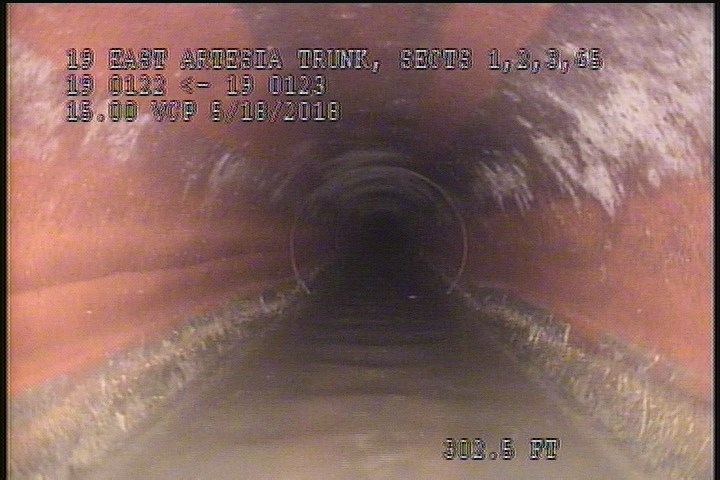

302.5 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 104.5 | MGP | — |
| 302.5 | MGP | — |
| 0 | MWL | — |
| 401 | MGO | Grease Throughout The Reach (5%) |
| 25.9 | MGP | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 401 | AMH | 6:04 AM |
| 278.9 | MGP | — |
| 0 | AMH | 4:48 AM |
| 398.4 | SSS | — |
| 200.4 | MGP | — |
Properties (4)
- additional_info
- CORRECT TAPE NUMBER IS (G7714)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-18T04:42:09-07:00
