Wastewater/Activity/PacpInspection/1.0May 17, 2018, 08:39 PM
19 0087_19 0086_5172018_134814.mp4
- Date
- 05/17/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00722
- PipeID
- P15279
- Time
- 1:39 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7713
- Sewer Name
- 19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 19 0087
- Downstream MH
- 19 0086
- Dir. of Survey
- Downstream
- Length Surveyed
- 53.5 ft.
- Total Length
- 53.5 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

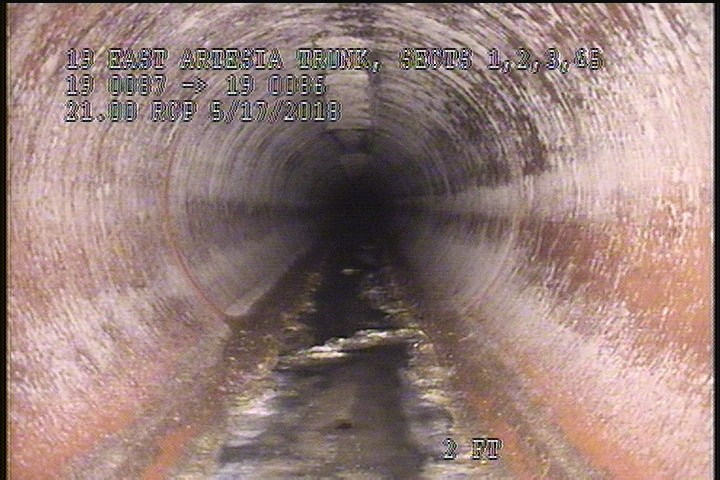

0 ft. - Water Level, 5 %of cross sectional area

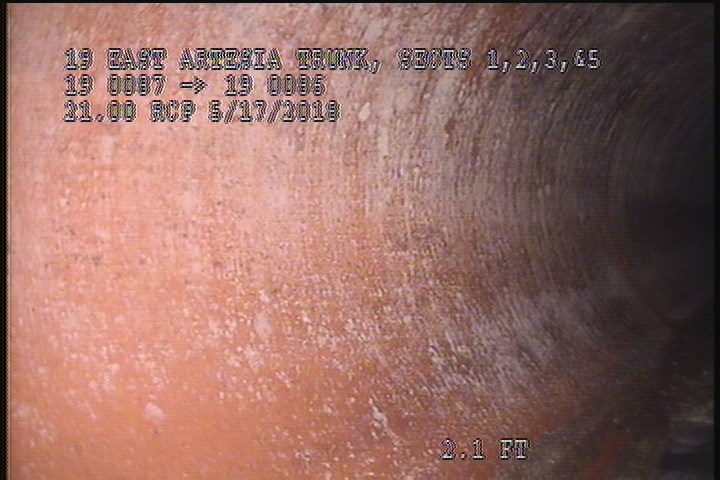

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

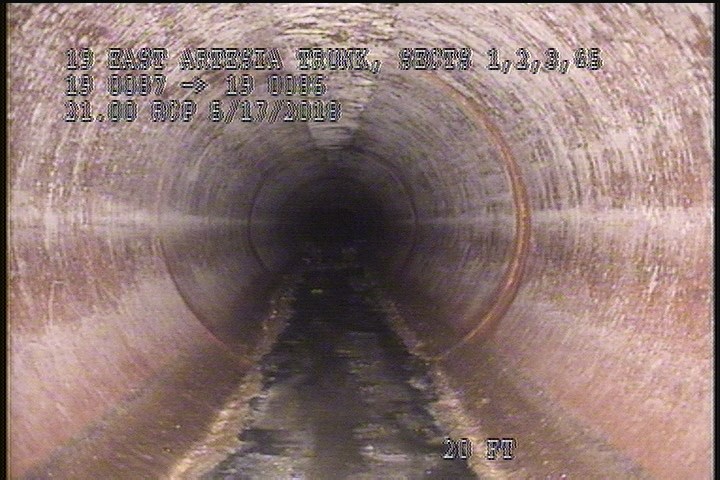

20 ft. - General Photograph

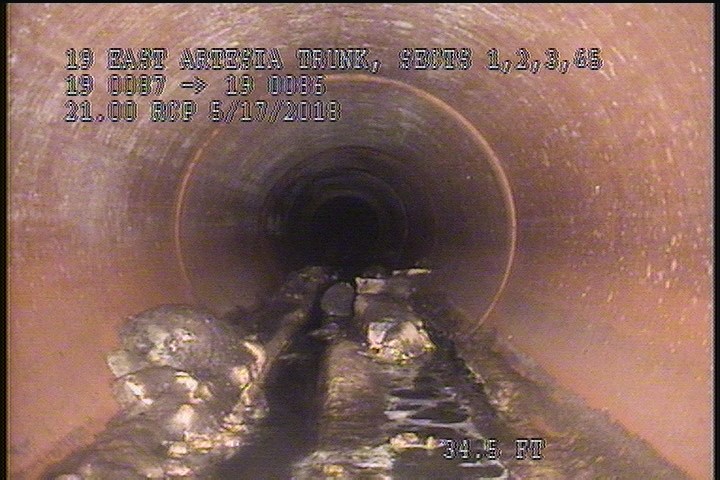

34.5 ft. - General Photograph - GREASE

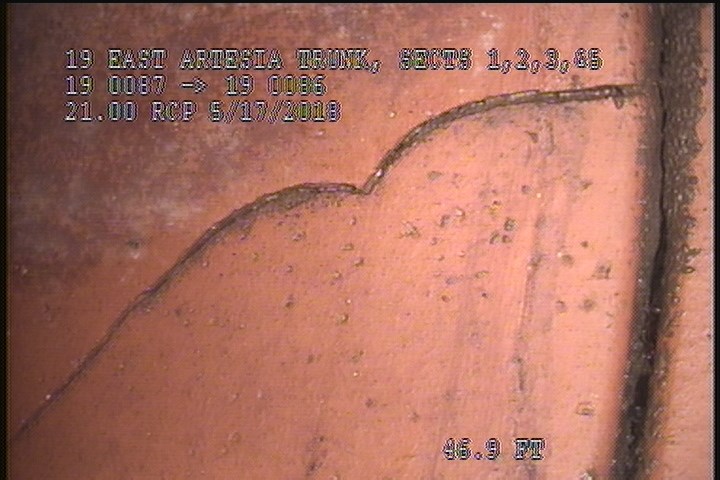

46.9 ft. - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 34.5 | MGP | GREASE |
| 2 | SSS | — |
| 46.9 | CM | — |
| 0 | MWM | — |
| 53.5 | MGO | ROACHES @ MH |
| 0 | MWL | — |
| 50 | SSS | — |
| 53.5 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0 | AMH | 1:40 PM |
| 53.5 | AMH | 2:01 PM |
| 20 | MGP | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-17T13:39:35-07:00
