Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2018, 05:46 PM

  • 19 0090_19 0089_5172018_105014.mp4

Date
05/17/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15282
Time
10:46 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7713
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0090
Downstream MH
19 0089
Dir. of Survey
Downstream
Length Surveyed
175 ft.
Total Length
175 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 19 0090 to 19 0089
MH: 19 0090MH: 19 0089downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:47 AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.3 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish60.2 ft. MGP - General Photograph100.2 ft. MGP - General Photograph169 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish169 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG169 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish174 ft. MGO - General Observation - ROACHES @ MH174 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active174.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)175 ft. AMH - Downstream Manhole, Survey Ends - 11:08 AM

Observation photos (4)

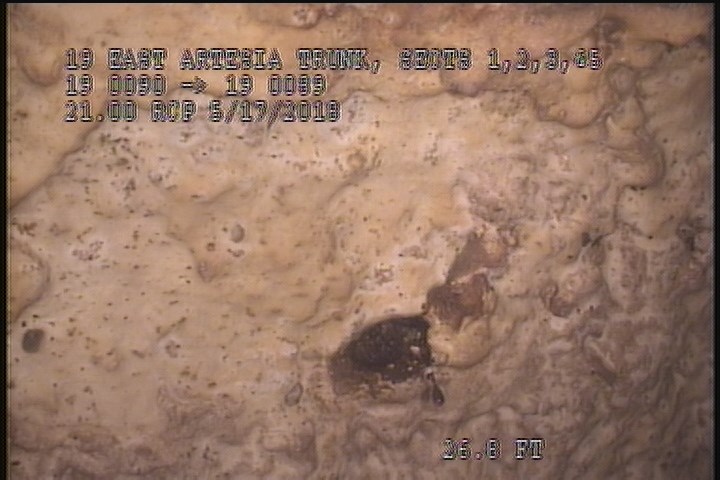

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

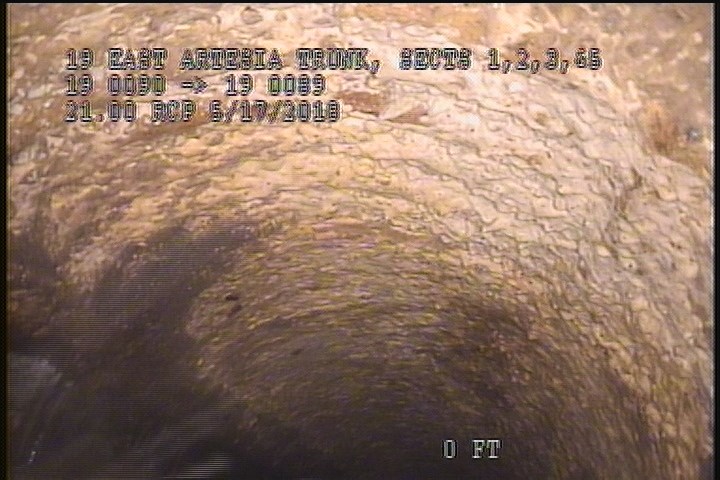

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

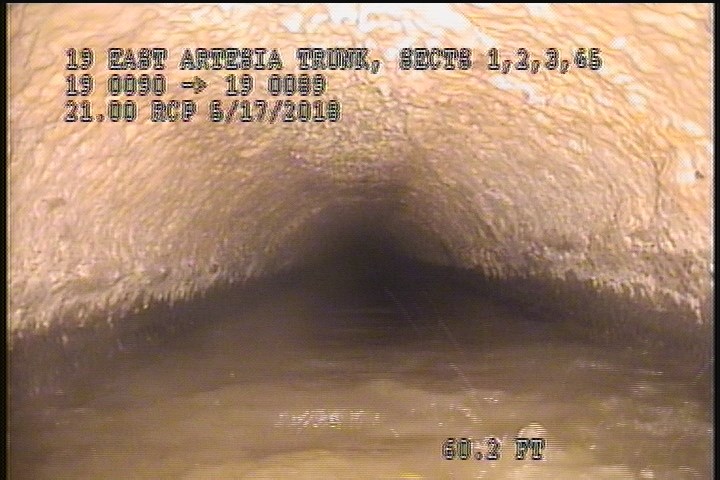

  • General Photograph

    60.2 ft. - General Photograph

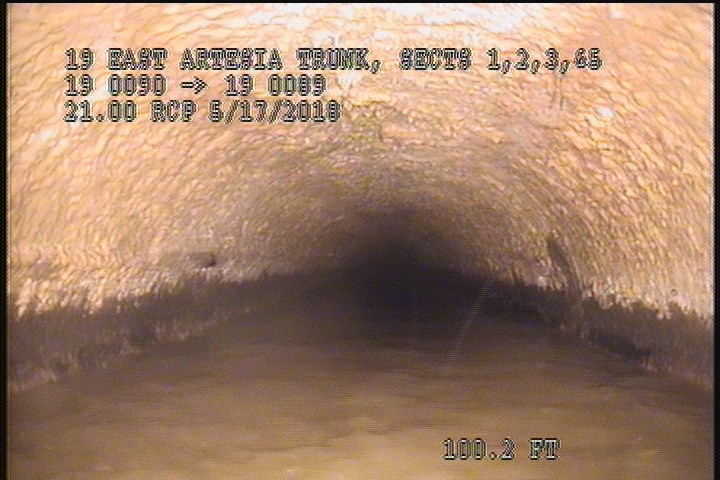

  • General Photograph

    100.2 ft. - General Photograph

All inspections of P15282Work order PENDING

Observations (18)

DistanceCodeObservation
100.2MGP—
169SSS—
174.1MGOGREASE THROUGHOUT THE REACH (5%)
169SZ85% MAG
174MGOROACHES @ MH
169SAV—
2SZ80% MAG
13.3SRV—
2SAV—
60.2MGP—
0AMH10:47 AM
0MWL—
0MWM—
174MGOConn. @ Mh, 3 O' Clock. Active
2SRV—
0MGOROACHES @ MH
175AMH11:08 AM
2SSS—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-17T10:46:48-07:00
