Wastewater/Activity/PacpInspection/1.0May 17, 2018, 05:26 PM
19 0091_19 0090_5172018_103005.mp4
- Date
- 05/17/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00722
- PipeID
- P15283
- Time
- 10:26 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7713
- Sewer Name
- 19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 19 0091
- Downstream MH
- 19 0090
- Dir. of Survey
- Downstream
- Length Surveyed
- 166.6 ft.
- Total Length
- 166.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

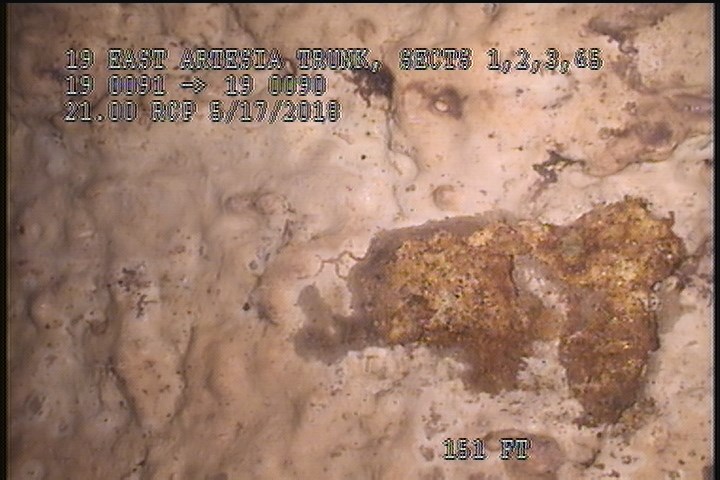

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

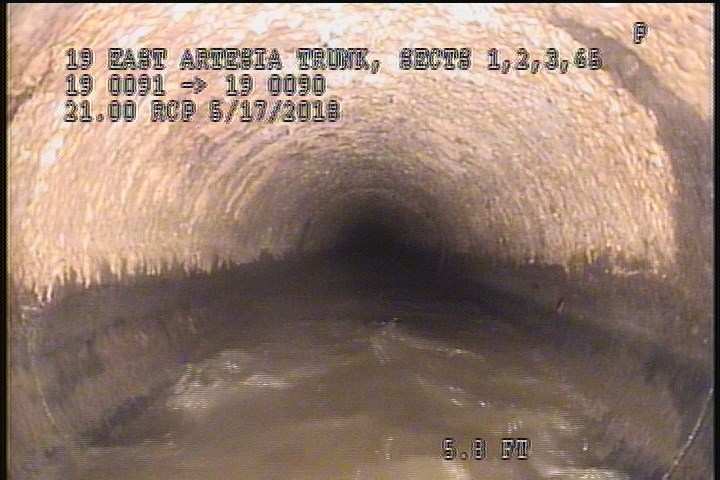

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75%MAG

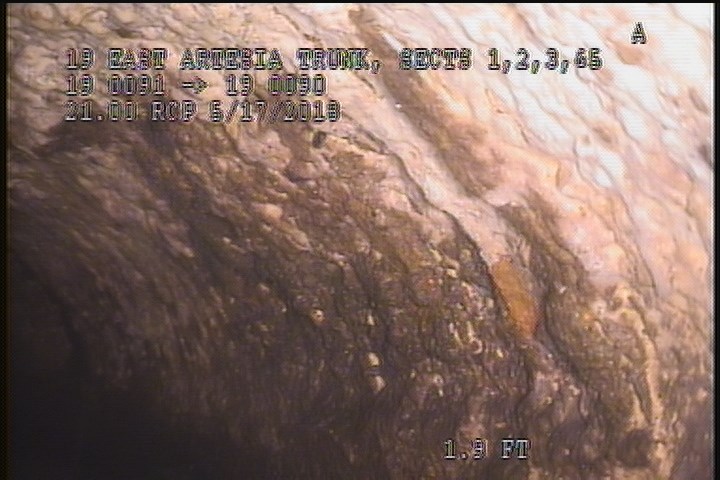

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

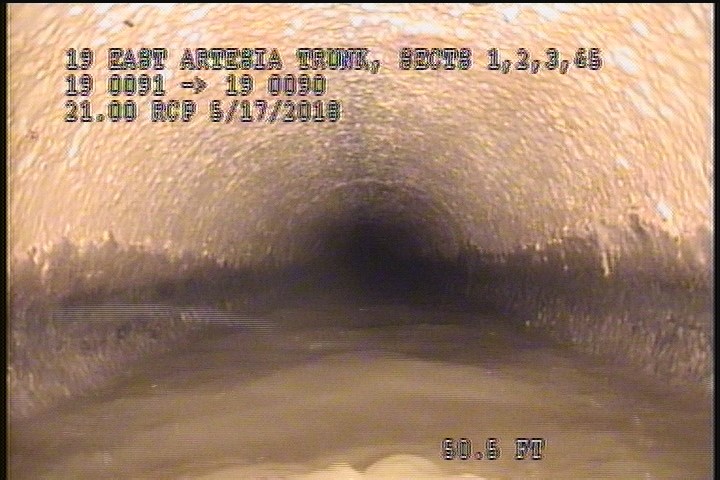

50.5 ft. - General Photograph
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 10:27 AM |
| 2 | SSS | — |
| 165.1 | SSS | — |
| 50.5 | MGP | — |
| 165.1 | SAV | — |
| 165.1 | SZ | 75%MAG |
| 2 | SZ | 75%MAG |
| 0 | MGO | ROACHES @ MH |
| 0 | MWL | — |
| 165.1 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | SAV | — |
| 166.6 | AMH | 10:44 AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-17T10:26:53-07:00
