Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2018, 04:55 PM

  • 19 0092_19 0091_5172018_100323.mp4

Date
05/17/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15284
Time
9:55 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7713
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0092
Downstream MH
19 0091
Dir. of Survey
Downstream
Length Surveyed
310.4 ft.
Total Length
310.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 19 0092 to 19 0091
MH: 19 0092MH: 19 0091downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:55 AM0 ft. MWL - Water Level, 25 %of cross sectional area1.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90%2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start190.5 ft. MGP - General Photograph308.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish308.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish308.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90%MAG308.1 ft. MGO - General Observation - Grease Throughout The Reach (5%)310.4 ft. MGO - General Observation - ROACHES @ MH310.4 ft. AMH - Downstream Manhole, Survey Ends - 10:25 AM

Observation photos (2)

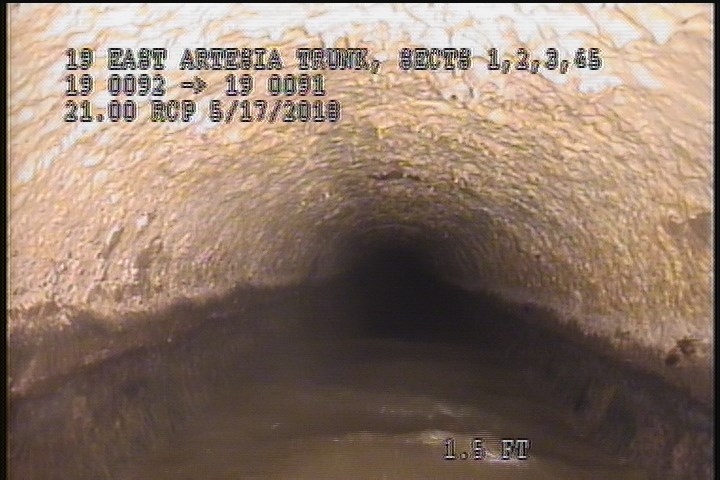

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90%

    1.5 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90%

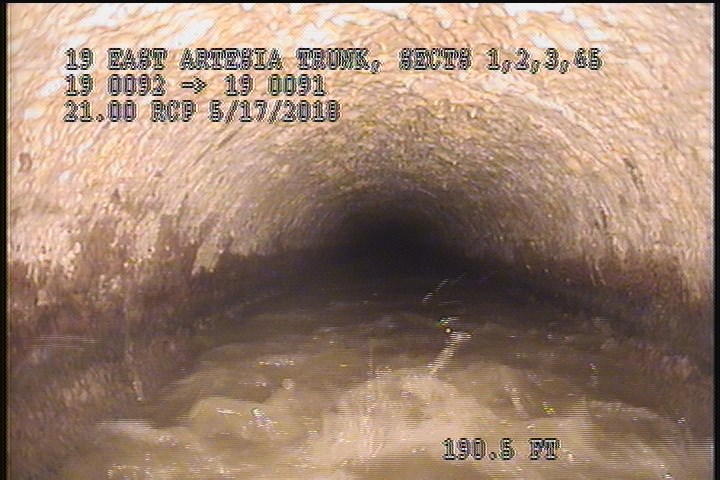

  • General Photograph

    190.5 ft. - General Photograph

All inspections of P15284Work order PENDING

Observations (13)

DistanceCodeObservation
310.4MGOROACHES @ MH
310.4AMH10:25 AM
0MWM—
308.1SAV—
308.1SSS—
308.1SZ90%MAG
308.1MGOGrease Throughout The Reach (5%)
2SAV—
2SSS—
0AMH9:55 AM
0MWL—
190.5MGP—
1.5SZ90%

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-17T09:55:09-07:00
